Lead Time:
1-3Color:
SilverModel Number:
WS-YDA SeriesMinimum Order Quantity:
1Warranty:

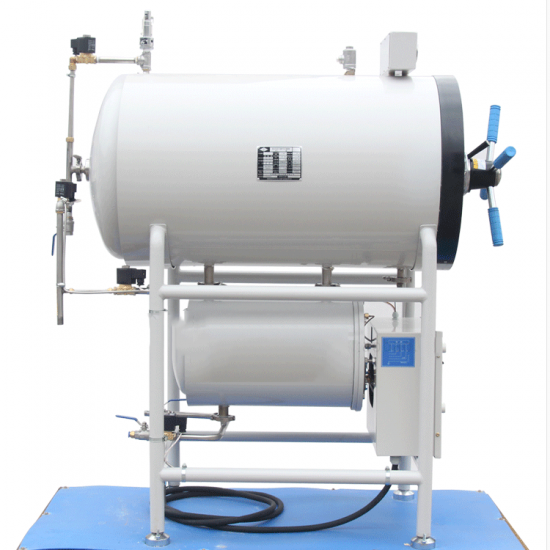

1 YearWS-YDA horizontal high pressure steam sterilizer
Technical data of WS-YDA horizontal high pressure steam sterilizer
| Technical data | WS-150YDA | WS-200YDA | WS-280YDA | WS-400YDA | WS-500YDA |
|
Sterilizing chamber volume (mm) |
150L | 200L | 280L | 400L | 500L |
| 440*1000 | 515*1000 | 600*1000 | 700*1100 | 700*1300 | |
| Working pressure | 0.22MPa | ||||
| Working temperature | 134℃ | ||||
| Adjustment of temperature | 134℃ | ||||
| Time of sterilization | 0-60 min | ||||
| Time of drying | 0-60 min | ||||
| Heat average | ≤±1 ℃ | ||||
| Voltage | 380V 50Hz | ||||
| Power | 9KW | 12KW | 12KW | 18KW | 18KW |
| Dimension(mm) |
1400*600 *1300 |
1400*670 *1650 |
1400*770 *1780 |
1430*880 *1830 |
1800*900 *1820 |
| Transport dimension(mm) |
1550*750 *1850 |
1560*820 *1850 |
1680*920 *2100 |
1800*1050 *2100 |
1800*1050 *2100 |
| G.W/N.W ( KG) | 320/240 | 350/260 | 465/365 | 530/520 | 580/470 |
Features of WS-YDA horizontal high pressure steam sterilizer

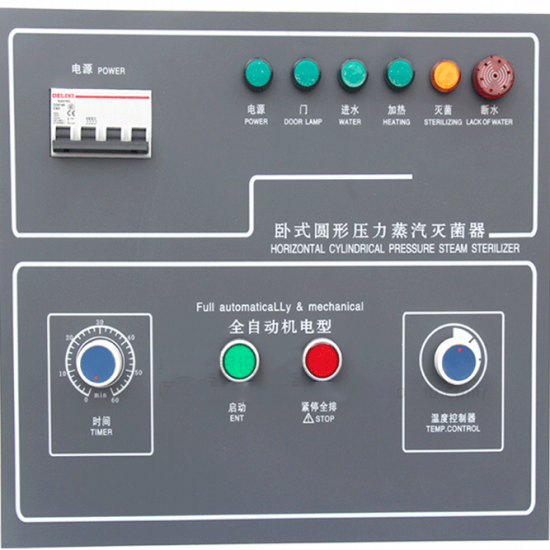

1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.

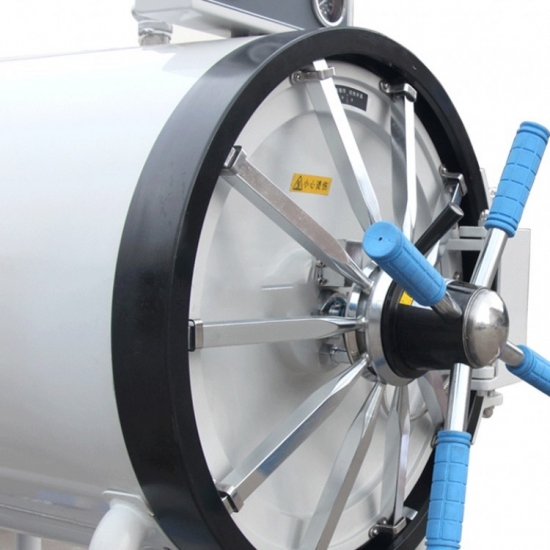

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

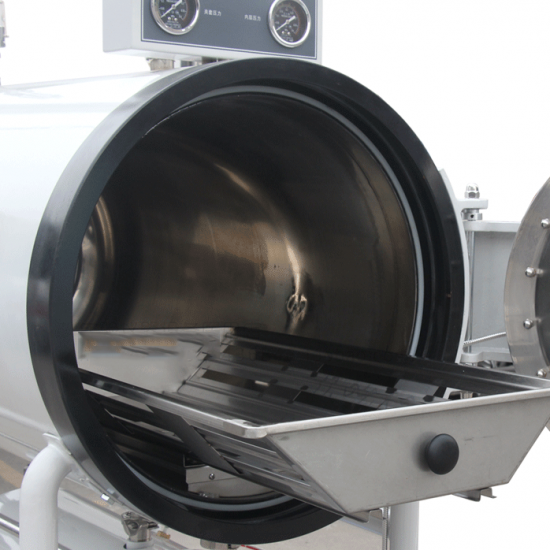

7. The chamber of the sterilizer is made of stainless steel.
| Model | YDB industrial autoclave | YDC industrial autoclave | YDD industrial autoclave |
| Specification | 150L;200L;280L | 150L;200L;280L;400L | 150L;200L;280L |
| Pciture |
|
|
|
Packing & Shiping
