Model Number:
OLT-PH-200MLMinimum Order Quantity:
1Compliance:
CE CertifiedVoltage:
108V-240VPower(W):
25W-100WCapacity:
25ml~500mlUse pressure:
10 MPa / 60 MPa (optional)Service temperature:
250 ℃ / 450 ℃ (optional)Lead Time:

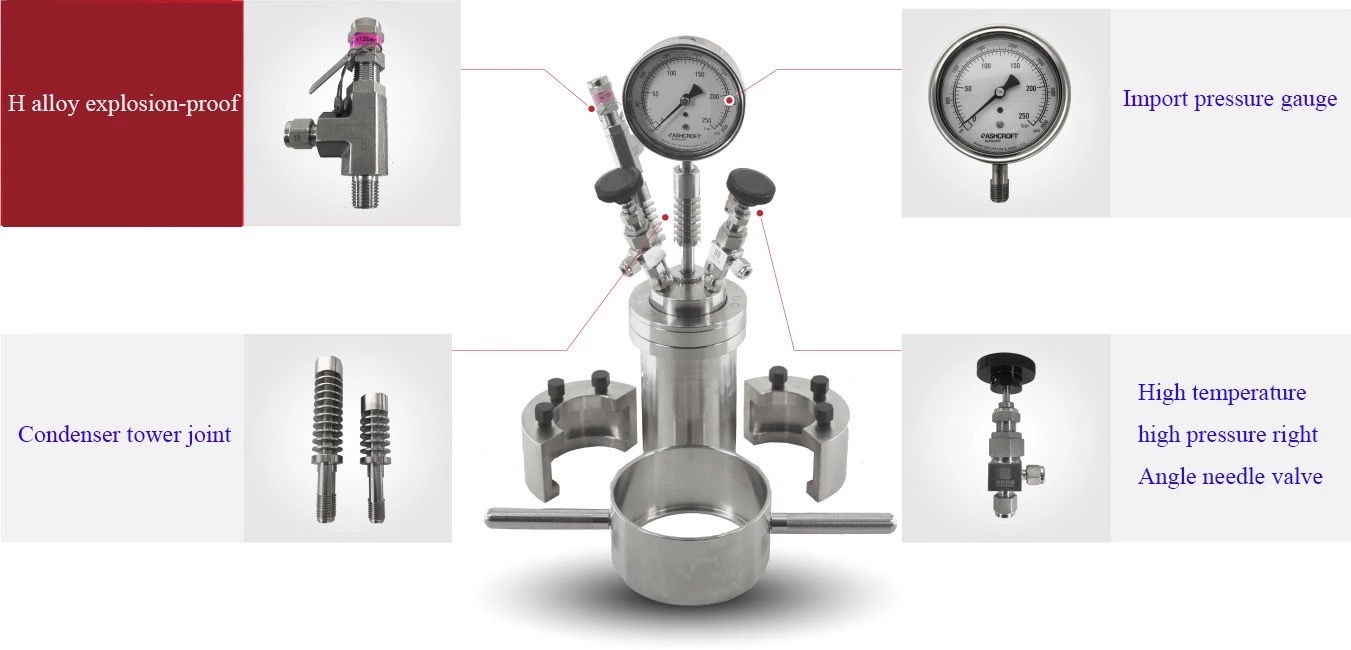

6-8dayThis product is used for chemistry and chemical engineering synthetic reaction under high temperature and high pressure or catalytic reaction, and such environmental conditions that needs to measure the pressure, temperature, and measuring speed at the same time, and add inert gas protection, pacify pressure and realize online-sampling or online feeding.
1.Volume: 25 ml, 50 ml, 100 ml, 200 ml, 500 ml for custom-ordering.
2.Body material: stainless steel 316L/pure titanium/hastalloy material (optional)
3.Working temperature: 250 ℃ / 450 ℃ (optional)
4.Working pressure: 10 MPa / 60 MPa (optional)
5.Valve and connection materials: SU316L stainless steel
6.Reactor liner: PTFE, PPL, quartz glass (optional), liner has advantages of strong anti-corrosion, easy to disassemble and convenient to clean, etc.
7.Optical window material: adopted polishing JGS2 quartz glass (pressure-proof window) or sapphire mirror
8.Optical window diameter: 30 mm - 60 mm (optional)
9.Temperature-control heating device and uniform heat transfer design
10.Gas inlet function
11.Online temperature and online pressure display
12.Strong magnetic stirring function under bottom (users can choose our company’s overhead mechanical stirring method in case of high viscosity or large granular solid materials optionally).
13.There has auxiliary cooling or heating function in reactor.
14.With a high precision adjustable auto-decompression protection
15.Two or more online charging function under high temperature and high pressure (optional)
16.With the gas phase, liquid phase online detection connection pipe.
Model
Dimension
Volume
Connection type
Intelligent safety valve
Display precision
OLT-PH-25ML
Φ40*60
25ml
Flange
Yes
±1℃
OLT-PH-50ML
Φ60*80
50ml
Flange
Yes
±1℃
OLT-PH-100ML
Φ80*120
100ml
Flange
Yes
±1℃
OLT-PH-200ML
Φ80*140
200ml
Flange
Yes
±1℃
OLT-PH-500ML
Φ100*240
500ml
Flange
Yes
±1℃
OLT-PH-1000ML
Φ168*280
1000ml
Flange
Yes
±1℃
It is widelu used for the flammable and explosive, highly toxic, precious media and other highly permeable chemical medium for stirring reaction. Used in the process of vulcanization and fluoridation of petroleum, chemical, organic synthesis, polymer polymerization, Hydrogenation and other non-leakage reactions. With super magnetic stirring function and program temperature control functions
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
