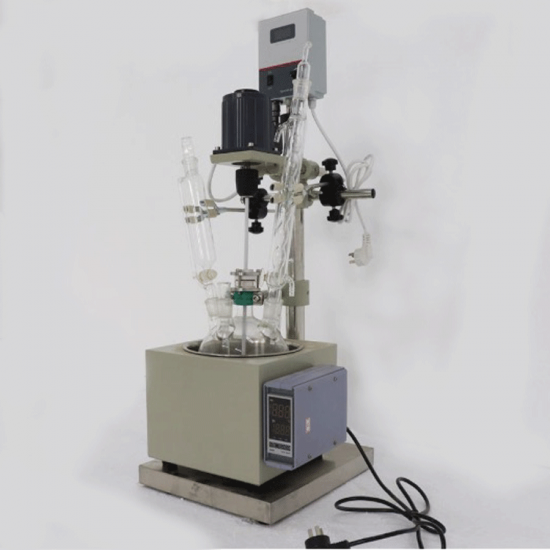

Lab Small Volume Jacketed Glass Reaction Kettle

  • Minimum Order Quantity:

    1
  • Compliance:

    CE Certified
  • Voltage:

    108V-240V
  • Lead Time:

    6-8day
  • Payment:

    Western Union, T/T, L/C
  • Warranty:

    1 Years
  • Product Details
  • It adopts AC frequency control of motor speed So the rev is steady , no spark appear, wide moment, safe, and can be used as the constant  working.
  • All sets of glass apparatus are double-layer jacketed structure. The thickness of the glass is 5-7 mm with good chemical and physical properties.
  • The teflon components  sealing method makes it in a state of high vacuum ,anti-acid and anti-alkali.
  • It can work under the ordinary pressure and positive pressure and can reach the -0.098Mpa positive pressure.
  • Constant temperature and numerical control oil bath pan, with beautiful and anti-corrosion stainless steel inner tube ,is controlled by the micro-computer which makes it work accurately, low fluctuation and conveniently.
    Five-mouth plane flange reactor cap is connected by the PTFE and is demounted easily with the characteristics of good sealing ,anti-acid and anti-alkali.
  • The reactor stirring bar’s inner bellycore is made from the 321 stainless steel specially ,covered by the PTFE tube which has the strong ability to anti-acid and anti-alkali. The bar is manufactured by the application of military industrial technology, so it boasts finer work and is operated with facility.
  • The drain hole contains the flange mouth and the PTFE drain valve which leave no dead angle and rudimental material. The whole set of drain valve can be easily demount   and the inside reactor can be  cleared conveniently.
  • The real time  temperaturanzeige

The introduction of the production function
The double –glass reactor realizes “one tractor severs several purposes” in the experiment, satisfying diversify of aspects of

.jpeg

  1. Vacuum stirring reaction
  2. High-temperature and low-temperature reaction
  3. Constant speed running mixing reaction
    Distillation , refluence and condensation reaction.
    Negative pressure operation and separation
  4. To do the rectify through assembling the rectifying pillar
    Assembly the production line in accordance of the specific demands.
  5. Customize new products based on clients’ different demands.

.jpeg

No.

Part name

Quantity

Introduction

1

Reactor body

1

available capacity: 1L/2L/3L

2

Stirring motor

1

Speed: 0-1350roll/min (adaptable)

3

Speed controller

1

Digital display function (continuously viable)

4

4-mouth reactor cap

1

For use with the reactor body

5

Reactor shelf

1

Support the body

6

Condensator

1

Distillation  condensation

7

PTFE feeding

1

Drain the material (can be demounted)

8

Thermometer bushing



1

Contain the Thermometer

9

PTFE stirring bar

1

Stainless steel inner core,covered by the PTFE anti-corrosion

10

Vacuum chock plug

1



Used  for  sealing

11

Vacuum exhaustion plug

1

Used to extract the air of the reactor to form the vacuum state

12

Recycling oil bath pan

1

Controled by the micro-computer ,to supply the high-temperature heat resource (it also has the recycling system, max +300°C)

 The detailed configure of the high-temperature recycler  for 1L/2L/3L reactor:

Mould

Capacity(L)



Tem range(°C)

Tem

fluctuation(°C)



Pumping flow(L/min)



Head of delivery(M)



Total power(KW)



Voltage(V)





Size(mm)



Assorted capacity(L)



OLT-RK-1

5

room~300

±0.2

7

1.5

1.7

220

320×380×510

1,2,3

.jpg

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agentPackaging Delivery.jpeg
