225L Programmable Fast Change Rate Temperature Test Chamber

  • Model Number:

    XB-OLT-225
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Capacity:

    225L
  • Voltage:

    108V-380V 50/60HZ
  • Warranty:

    3 year
  • Temperature range:

    -70°C~+150°C
  • Dimension(L*W*H):

    100*161*117cm
  • Packaging Details:

    Standard export wooden box
  • Delivery Time:

    8-10 Days
  • Product Details

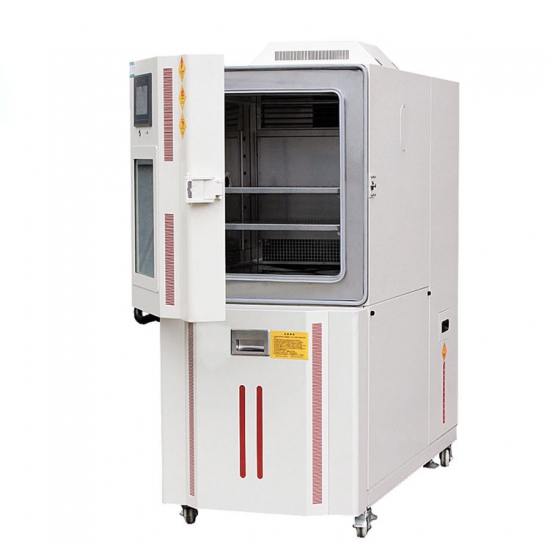

225L Programmable Fast Change Rate Temperature Test Chamber

Introduction:Test material heat, cold, dry resistance, humidity resistance.Suitable for electronics,

electrical appliances,communications, instrumentation, vehicles, plastic products, metal, food,

chemical, building materials, medical, aerospace and other products.


Model

XB-OLT-80

XB-OLT-150

XB-OLT-225

XB-OLT-408

XB-OLT-800

XB-OLT-1000

Inner size(W*H*D)CM

40*50*40

50*60*50

50*75*60

60*85*80

100*100*800

100*100*100

External size (W*H*D)CM

90*136*94

100*146*104

100*161*117

110*171*137

150*186*137

150*186*157

Temperature range

-70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C )

Humidity range

20%~98%R.H.(10%-98%R.H/5%~98%R.H)

Temp humidity

analytic accuracy/uniformity

±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.

Temperature  humidity

control accuracy/fluctuation

±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.

Heat/cooling time

About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )

Inner and outer materials

SUS#304 Stainless steel for inner chamber and

Carton Advanced cold plate nano paint for outer.

Insulation materials

Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials

Cooling system

Air cooling/single segment compressor(-20°C) ,air and water double segment compressor

(-40°C~-70°C)

Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,

super humidity over-temperature protection switch, fuse, failure warning system

Parts

Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze

Controller

TEMI1500 TH-900C South Korea

Compressor

Original France“Tecumseh”brand

Power

1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

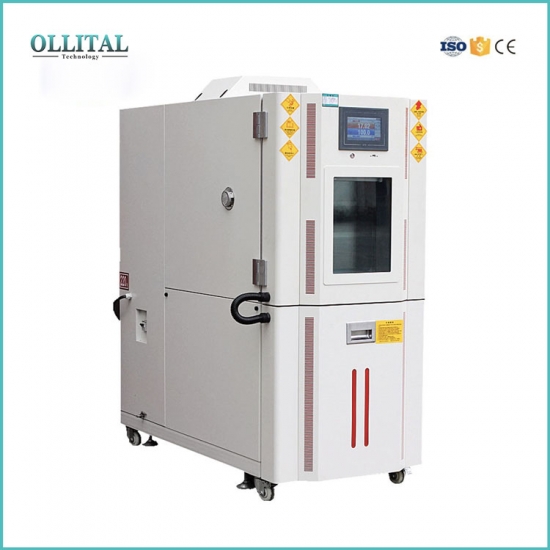

225L XB-OTS-225 Programmable fast change rate temperature test chamber

*.High-texture appearance, the body adopted an arc shape, surface matte stripes processing, and flat-handle,

easy to operate, safe and reliable.

*.Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window witt anti-sweat

heaters device prevents water gas condensate ,Knot, water droplets, PL fluorescent lamps to keep the inside

lighting.

*.Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of the leak

*.With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.

*.Compressor cycling system used France“Tecumseh”brand which can effectively remove condenser pipe

and between capillary Lubricating oil and whole series adopt environmental protection refrigerant

(R23, R404, R507)

*.Controller uses the imported LED display screen, can display measured values and setting time

*.Controller with multi-segment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.

*.Built-in mobile wheels allow easy movement and placed and has a strong positioning screw position.

Standard:

GB11158 GB10589-89

GB10592-89 GB/T10586-89

GB/T2423.1-2001 GB/T2423.2-2001

GB/T2423.3-93 GB/T2423.4-93

GB/T2423.22-2001 IEC60068-2-1.1990

225L XB-OTS-225 Programmable fast change rate temperature test chamber
