+300 ℃ High Temperature Test Chamber

  • Model Number:

    LRHS-800B-LG
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Mixing method:

    LCD English Display
  • Capacity:

    800L
  • Voltage:

    108V-380V 50/60HZ
  • Power:

    6.0kw
  • Temperature range:

    RT+10℃~300℃
  • Dimension(L*W*H):

    1290×1300×1720mm
  • Packaging Details:

    Standard export wooden box
  • Delivery Time:

    8-10 day
  • Product Details

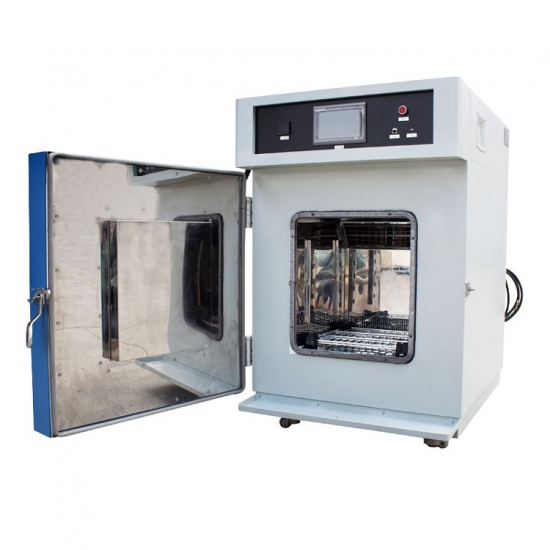

 +300 ℃ High Temperature Test Chamber

+300℃ High Temperature Test Chamber give the maximum durability and performance for your most demanding test requirements.It is the necessary test equipment for aviation, Aerospace, automotive, electronics, military and solar panel industry etc.It can be used to test and determine the parameters and performance of electrical, electronic products and materials in the most extreme temperature and humidity conditions.

Sizes of High Temperature Chambers
Model
Volume (L)
Temperature Range
(°C)
Rated Power
Internal Dimension (mm) D*W*H
External Dimension (mm) D*W*H
LRHS-101-LG
101
RT+10℃~200℃
or
RT+10℃~300℃
2.8kw
450*450*500
940×750×1120
LRHS-225-LG
225
3.2kw
500*600*750
990×900×1370
LRHS-504B-LG
504
4.2kw
700*800*900
1190×1100×1620
LRHS-800B-LG
800
6.0kw
800*1000*1000
1290×1300×1720
LRHS-1000B-LG
1000
6.2kw
1000*1000*1000
1490×1300×1720
Note: In the Model, the number means volume of test chamber's working room.
For example, model LRHS-101-LG means the volume of this test chamber is 101L
Basic Specification
Performance
Temperature Range RT+10℃~200℃/RT+10℃~300℃
Temperature Fluctuation ±0.5°C  ( without load )
Temperature Uniformity ≤2.0°C ( without load )
Ramp Rate 1.0~3.0°C/min for heating (non-linear, based on on-load)
<50mins(RT+10~200°C)
Note: can be customized as per requirement
Material
External Casing Cold-rolled A3 (Q235) steel plates with plastics painted.
Interior Working Room Stainless Steel Plates SUS304 with miror surface
Heat Isolation Polyurethane foams and fine glass fibres
Illumination Lamp Philips® one in per standard test chamber.
Casters 4pcs, with PU covered for protection. Height adjustable and direction universal.
Viewing Window Multi-layer hollow toughened glass with conductive films for heating to defrost
Door Manually operated sliding door with unlock button
Heating & Cooling System
Heater Steipped Nickel-chromium Wire Heater

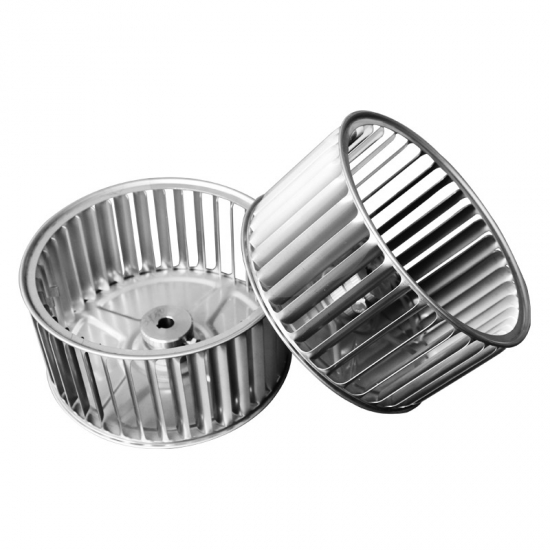

Air Blower Anti-temperature stainless fan blades with low noise
Control System

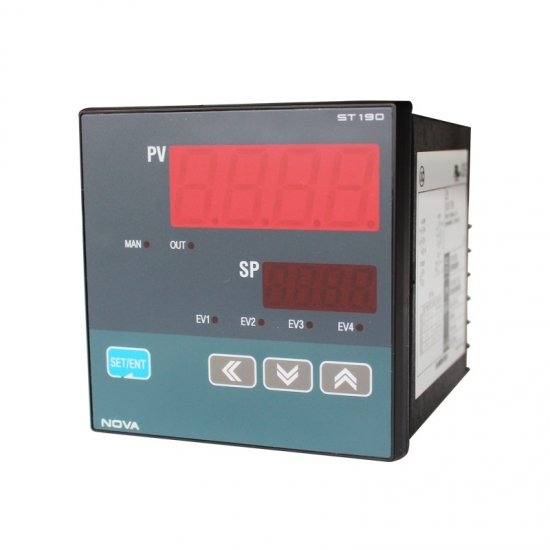

Controller ST190
Display LCD English Display

Controller Microcomputer integrated controller

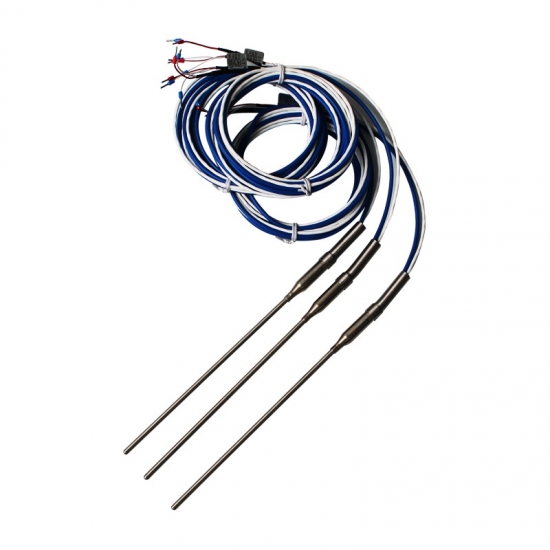

Temperature Sensor Platinum Resistance.PT100Ω
Running Model Constant/Fix-value Model and Programmable Model
I/O Interface Communicate port (RS485) to connect test chamber to a PC
Standard Configuration Test Chamber x 1, Specimen Holder Shelf x 2, φ100mm Cable Access Port x 1 with 1 soft plug, EMO x 1, Tri-color Indicator x 1, etc.
Safety Protection Power leakage protection/Compressor over-heat, over-load or over-current protection/Dry burning protection.
Voltage AC220V/380V/440V±10%, 50Hz/60Hz or as per requirement
Ambient Enviromental for application 5°C~+30°C ≤ 85%R.H
Test Standards (not limited to) IEC60068-2-1
IEC60068-2-2
IEC60068-2-78
IEC60068-2-30



●Programmable Touch Screen Controller
●Custom Sizes Available
●Running Time Meter
●Wide Temperature and Humidity Ranges
●Capable of Handling Extreme Temperature and Humidity
●High Performance Even Under Load
●Incandescent Interior Lighting
●Modular,Robust Reliable Construction
●Stainless Steel Interior
●Painted Galvanized Steel Exterior For Long Life
●Heavy-duty Flooring to Support Vehicles
●Mechanical Cooling
●Comprehensive Safety Features
●Refrigeration Gauges
●Refrigeration Sound Deadening Package
●Low or Zero Ozone Depletion Refrigerants
●All Circuits Fused or Circuit Breaker Protected.
●All Wiring Numbered or Color Coded
●Compressor Overload Protection
●Prefabricated for On-Site Installation
