Programmable High and Low Temperature Test Chamber

  • Model Number:

    ZH-HS-1000

  • Compliance:

    CE Certified

  • Minimum Order Quantity:

    1

  • Capacity:

    1000L

  • Voltage:

    108V-380V 50/60HZ

  • Temperature range:

    -20℃ to 150℃

  • Dimension(L*W*H):

    155*215*155cm

  • Weight:

    580kg

  • Packaging Details:

    Standard export wooden box

  • Delivery Time:

    8-10 day
  • Product Details

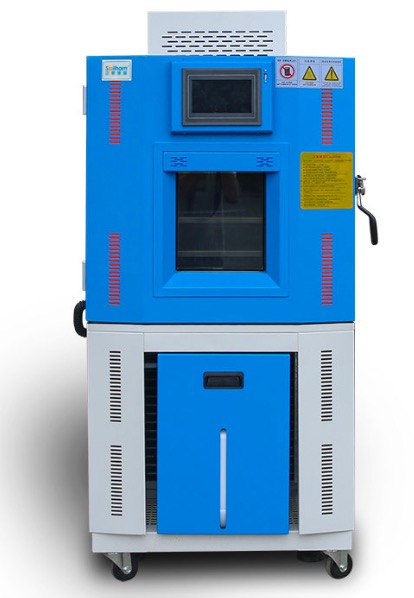

Programmable High and Low Temperature Test Chamber


Programmable Environmental Temperature and Humidity Test Machine/ Climate Chamber are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing. In keeping with the needs of today's lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior workspace.

Model ZH-HS-80
(A~F) 		ZH-HS-150
(A~F) 		ZH-HS-225
(A~F) 		ZH-HS-408
(A~F) 		ZH-HS-800
(A~F) 		ZH-HS-1000
(A~F)
Inner size: WHD(cm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size: WHD(cm) 105*165*98 105*175*108 115*190*108 135*200*115 155*215*135 155*215*155
Temperature range (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)
Humidity range 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Temp analytic accuracy/uniformity 0.1ºC/±2.0ºC
Temperature Fluctuation ±0.5ºC
Humidity analytic accuracy/ Humidity  control accuracy ±0.1%;±2.5%
Heat; cooling time Heat up about 4.0°C/min ;  Cooling about 1.0°C/min
Inner and outer materials SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
Insulation materials Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system Air cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C)
Protection devices Fuse switch, compressor overload switch, refrigerant high and low pressure protection
switch,
super humidity over-temperature protection switch, fuse, failure warning system
Parts Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor Original France"Tecumseh"brand
Controller TEMI South Korea
Power AC220V 50/60Hz & 1, AC380V 50/60Hz 3
weight (kg) 150 220 270 320 450 580

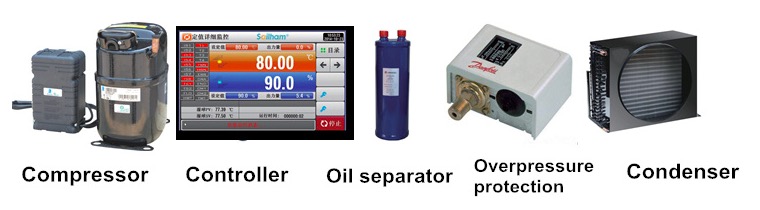

Core accessories

High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A

Manufacture process
