Model Number:
OLT-UC150WCompliance:
CE CertifiedMinimum Order Quantity:
1Mixing method:
LCDVoltage:
Two Years Limited Warranty With Lifetime SupportWarranty:
Western Union, T/T, L/CPackaging Details:
Export wooden packageDelivery Time:
6-8 dayContinuous Flow Thermostatic Ultrasonic Homogenizer Sonicator

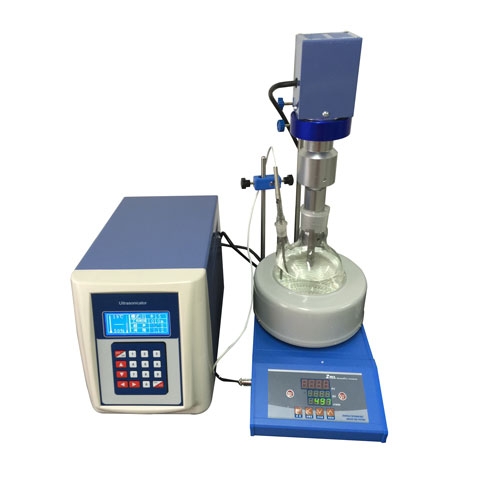

OLT-UC150W thermostatic sealed ultrasonic reactor for acoustic chemical reaction, enzymatic reaction, preparation of nano-materials, emulsification, homogenization, dehydration, separation, extraction, digestion and reduction, defoaming, petroleum oxidation desulfurization, organic wastewater treatment, oil sludge cleaning de-oiling, the remaining biological sludge dehydration, sterilization, cleaning and so on. Also widely used in chemical industry, materials engineering, environmental engineering, biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
It is a multi-purpose instrument for material’s ultrasonic treatment
1. Fully enclosed structure, can enter a variety of gases involved in the reactor.
2. Immersion ultrasonic horn make the treatment effect is good.
3. Ultrasonic power 50 ~ 1000W continuously adjustable.
4. Ultrasonic pulse excitation device independent switch, pulse excitation time adjustable, pulses times automatically count control.
5. Ultrasonic transducer and liquid contact part can choose titanium material, corrosion resistance.
6. Jacketed glass reactor, 50 ~ 800mL variety of reactors optional, can connect to cold water or oil bath, to achieve precise temperature control.
7. Display and temperature sensor can be directly immersed in the reaction system.
8. Reflux condenser, feeding dropping funnel can be connected to the reactor, also can connect gas bubbler, vacuum exhaust pipe and other chemical synthesis device accessories, chemical synthesis reaction device kit, micro organic synthesis kit optional.
9. The horn and the reactor are connected with a special sealing joint, The reactor is completely closed.
10. Super magnetic stirrer make the samples fully mixed (optional )
Horn
(mm)
Model
Frequency
(KHz)
Power Ratio
Disruption
Capacity
(ml)
Optional
Horn (mm)
Temp alarm
range
Display
OLT-UC150W
22±1
1%-99%
(5-150W)
Φ6
0.2-150
Φ2,Φ3
1-99
LCD display
OLT-UC250W
22±1
1%-99%
(10-250W)
Φ6
0.2-250
Φ2,Φ3
LCD display
OLT-UC650W
22±1
1%-99%
(10-650W)
Φ6
0.2-500
Φ2,Φ3
Φ10,Φ12
LCD display
OLT-UC1000W
22±1
1%-99%
(10-1000W)
Φ6,Φ10
0.2-650
Φ2,Φ3
Φ10,Φ15
LCD display
OLT-UC1200W
19-23
1%-99%
(10-1200W)
Φ20
50-1000
Φ12,Φ15
Φ22
LCD display
OLT-UC1500W
19-23
1%-99%
(10-1500W)
Φ20,Φ22
200-1200
Φ12,Φ15
Φ22
LCD display
OLT-UC1800W
19-23
1%-99%
(10-1800W)
Φ20,Φ22
200-1500
Φ12,Φ15
Φ22
LCD display
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
