Item NO.:
SX2-2-12TPLead Time:
7daysShipping Port:
XiaMen

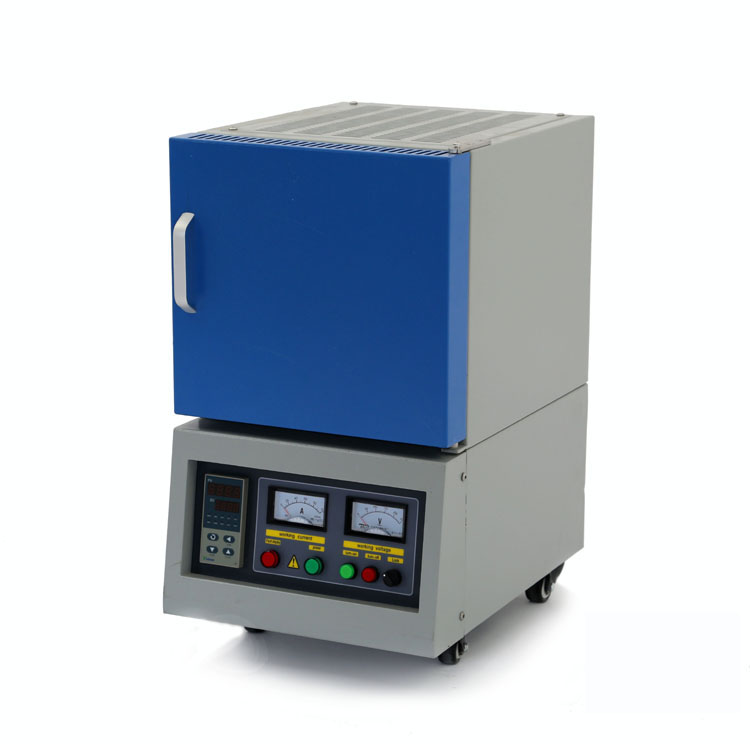

XY series box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled byhigh precision SCR (Silicon Controlled Rectifier) digital controller with accuracy ±1℃ and 30 segments programmable. It is an ideal tool for Materials annealing and sintering in your research laboratory.
Technology parameter
Product application: Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.
The detail specifications of high temperature lab electric furnace
Detailed Images
Max.temperature
1200C
Working temperature
0-1100C
Furnace Chamber size(DWH)mm
100*100*100 or as your requirement
Heat element
Resistance wire
voltage and frequency
220v 50Hz/60Hz
Heating rate
0-20C/min
Temperature accuracy
±1°C
Thermocouple
K type
Temperature control
Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.
Appearance design
The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.
Furnace shell structure
Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

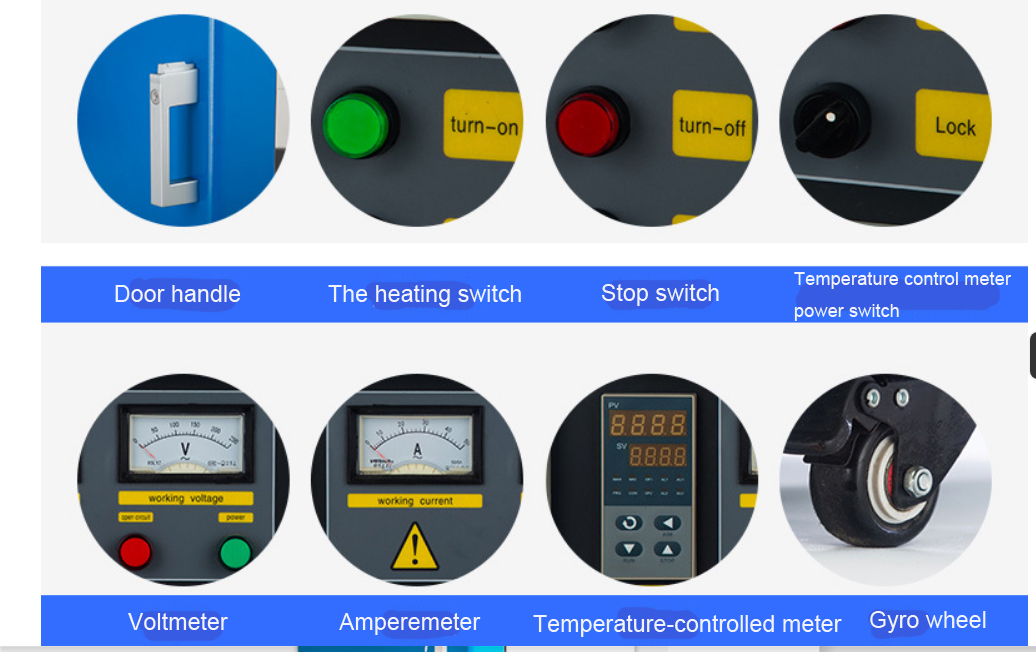

Temperature control security
The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

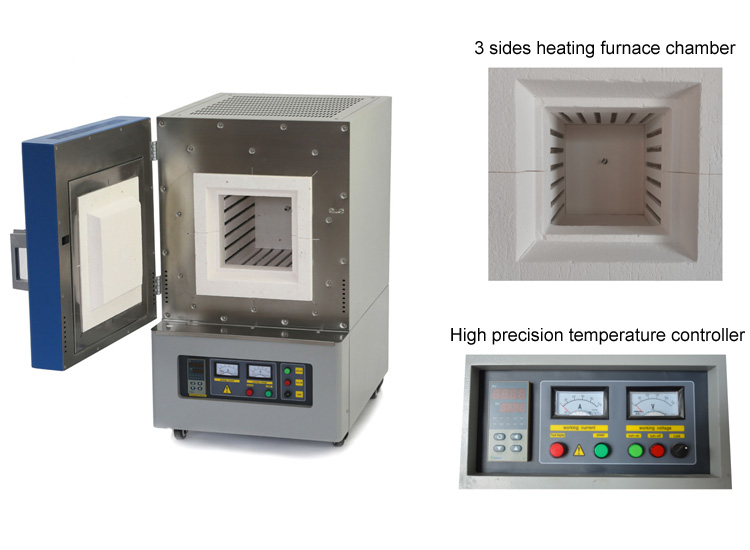

Furnace Chamber material
Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.
Furnace chamber design
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.
Sandard accessories
Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace
Other temperature options
1200C,1400C,1700C,1800C
Furnace chamber standard size
100*100*100mm,200*150*150mm,300*200*200mm,400*300*300mm or other OEM size
Waranty
One year

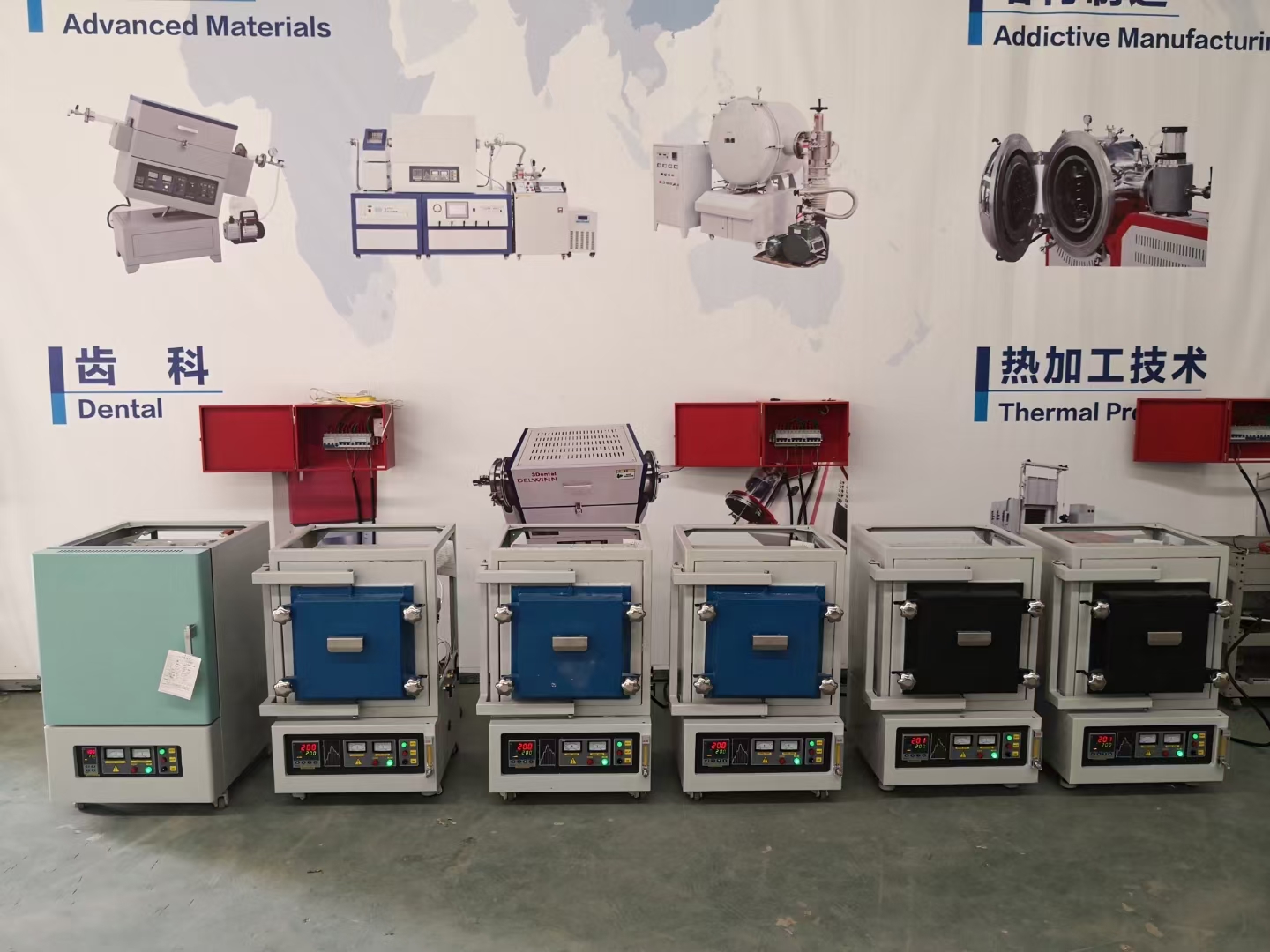

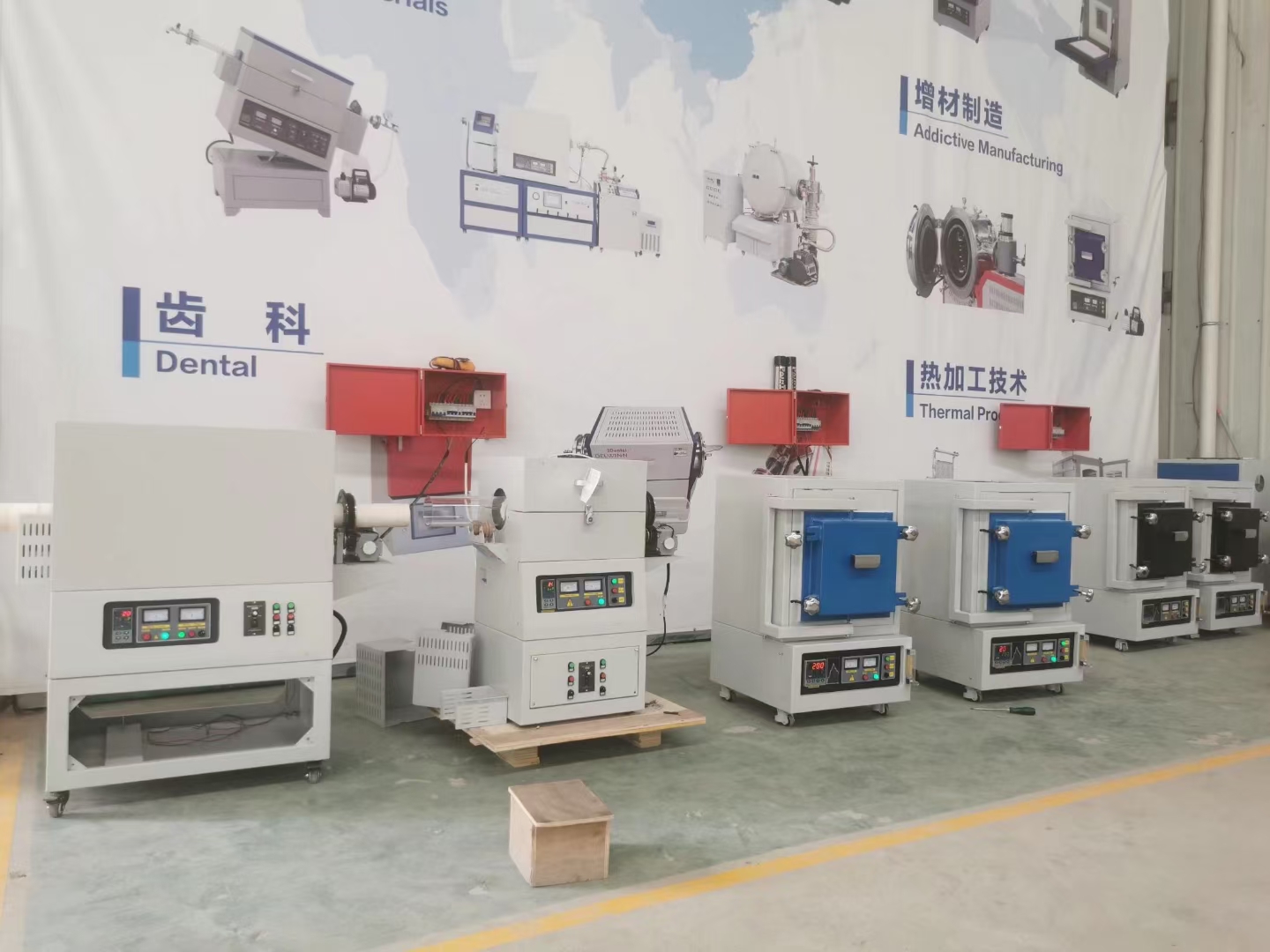

High temperature furnace test area
