Item NO.:
STD-96-17Lead Time:
7daysShipping Port:
XiaMenSTM 1700 series muffle furnace features high quality spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. Laboratory furnaces are ideal for heat treating, reacting studies, sintering processes, and ceramic firing.
Furnace operation is controlled by Shimaden (Japan) 32-segment digital controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well. Temperatures that are too high or too low will cause problems with the process and could cost your company a significant amount of money.
Mean Features
1. Dual wall housing makesure the body cool during heavy use.
2. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
3. Built-in ammeter and voltmeter for easy monitoring and troubleshooting.
4. Built-in computer interface.
5. Long life type B thermocouple.
6. CE certified
Specifications
B type
Feature one testing point, testing from its back wall
1. One year of equipment quality guarantee (excluding vulnerable parts: resistance wire, thermocouple, etc.).
2. Damage caused by major manufacturing defects during the warranty period shall be repaired free of charge by the manufacturer
3. The user shall bear the maintenance cost for the damage caused by the user's improper manual operation during the warranty period.
4. Damage occurring after the warranty period, the manufacturer charges the cost of spare parts and labor for paid maintenance.
Model
STD-36-17
STD-64-17
STD-96-17
STD-288-17
Chamber Size (W*D*H) mm
300x400x300
400x400x400
400x600x400
600x800x600
Power supply
380V/15KW
380V/18KW
380V/21KW
380V/33KW
Type
Benchtop
Front-loading
Usage
The product is suitable for steel hardening, annealing, tempering, heat treatment and heating in laboratory, industrial and mining enterprises, scientific research units,can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating.
Furnace structure
1. The furnace is consist of heating system and temperature controller system
2. chamber is consist of insulation material and heating elements
3. Temperature controller is consist of PID controller, control elements and thermocouple
4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller
Max temperature
1700℃
Working temperature
1600℃
Heating Rate
≤10℃/min (suggest 10℃/min for longer life using of furnace)
Heating Element
Powerful MoSi2 heating elements
Chamber material
high-alumina ceramic fiber lining,
Temp. Uniformity
±10°C
Thermocouple
Temperature Controller
1. Control system integrated in the furnace base, Defined application within the constraints of the operating instructions
2. Furnace temperature controller utilizes Shimaden Intelligent PID 4 group 8 segments program
3. Feature single setpoint digital control, LED display of actual temperature VS set point
4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control
5. Temperature controller Precision ±1℃
Electronic component
SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell
1. High quality cold-rolled steel sheets CNC processing
2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes
3. Energy efficient insulation keeps exterior safe to touch
Safety Precautions
1. Overheating & Broken thermocouple protection
2. Leakage circuit breaker
3. Automatic power off when furnace door opens (optional function)
4. Over-temperature protection and alarm allow for operation without attendant(s)
5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Supply Scope
1. One furnace body
2. One set of temperature controller system
3. Three-meter power line
4. One thermocouple
5. One pair of crucible tongs
6. One pair of high temperature furnace gloves
7. An instruction book
Optional Accessories
1. Alumina boats
2. paperless recorder
3. exhaust chimney
Certification
ISO9001 CE SGS
Warranty

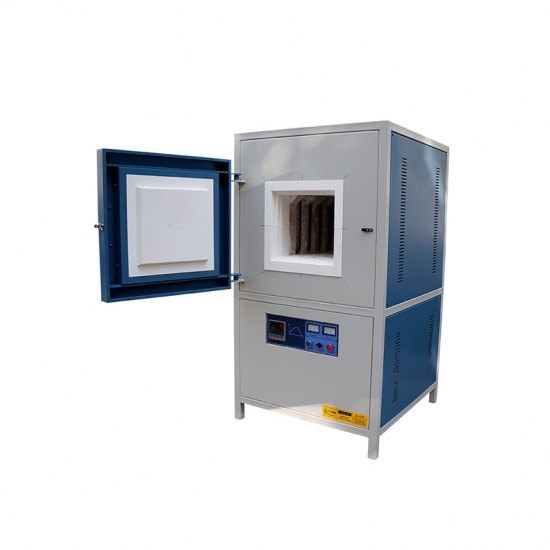

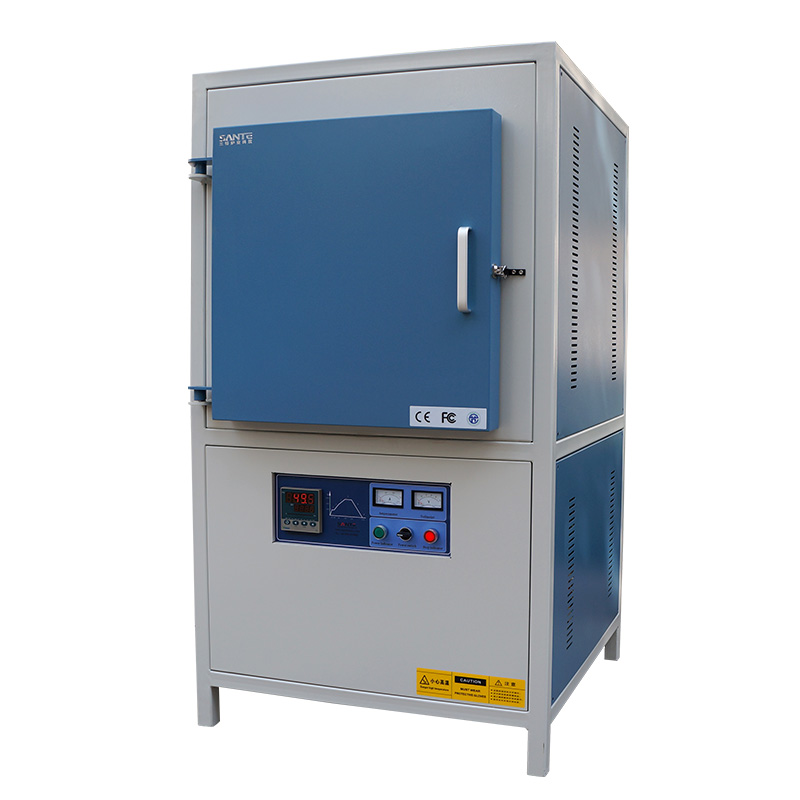

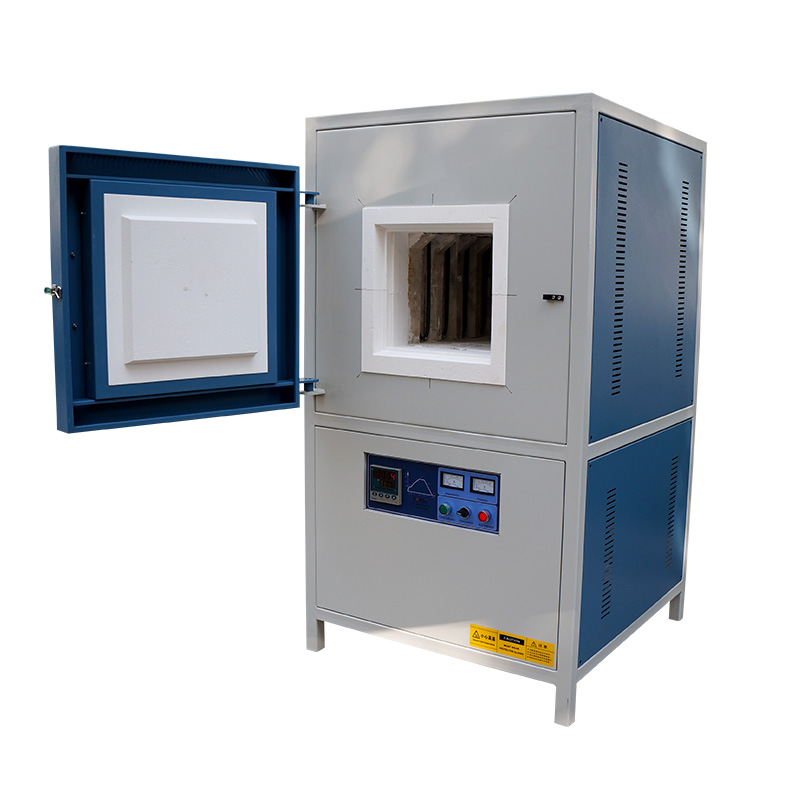

Detail Pictures
