Drying oven: An important tool for industrial production

Product Overview:

The electric heating blast drying oven is suitable for drying, baking, wax melting and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes, medical and health institutions.

Working Principle

- Heating method: Common heating methods include electric heating wire heating, which generates heat by passing current through the electric heating wire; gas heating uses gas combustion to release heat energy. There is also far-infrared heating, which uses far-infrared radiation to make objects absorb energy and heat up, and can heat objects more evenly and deeply.

- Circulation system: Rely on the fan to circulate the air in the box to ensure temperature uniformity. Horizontal circulation is the horizontal flow of air in the oven, and vertical circulation is the up and down flow of air.

Structural composition

- Box: Generally made of insulation materials, such as rock wool, polyurethane, etc., which can reduce heat loss. The outer shell is usually made of cold-rolled steel plate or stainless steel plate, which is strong and corrosion-resistant.

- Heating system: includes heating elements and control elements. Heating elements such as electric heating tubes and gas burners can adjust and control the temperature.

- Temperature control system: It is composed of temperature sensors, temperature controllers, etc. The sensors monitor the temperature in real time, and the controller automatically adjusts the heating power according to the set value.

- Circulation system: It is mainly composed of fans and air ducts. The fans promote air circulation and the air ducts guide the airflow direction.

Product Features:

1.The product shell is made of high-quality cold plate and the surface is treated by spraying process.

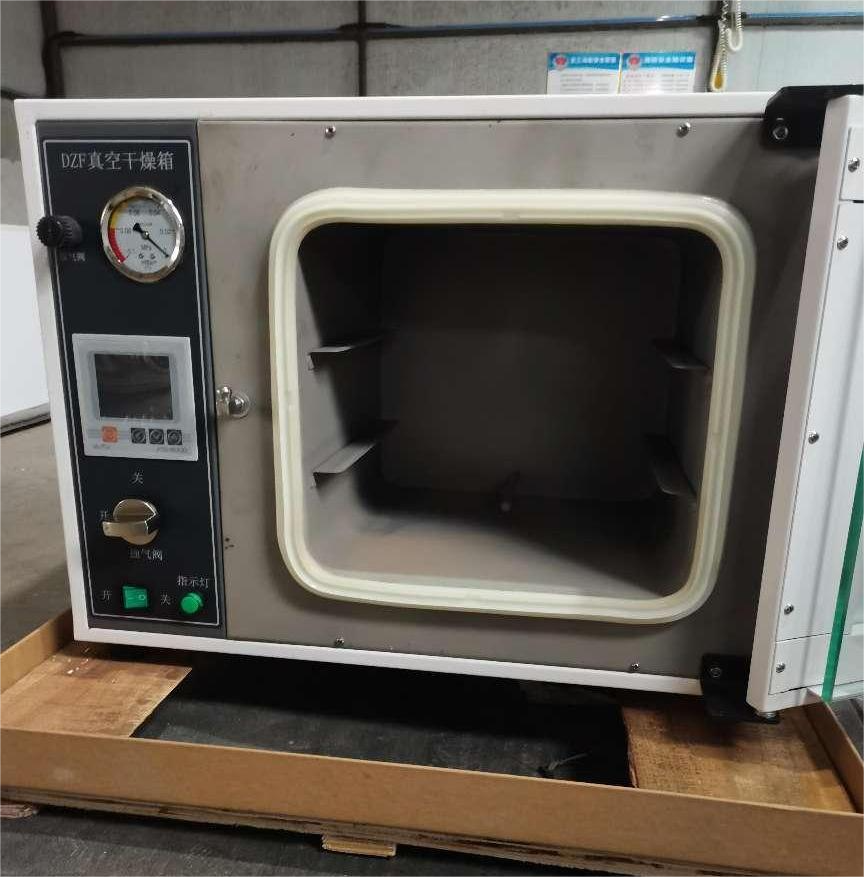

2.The workshop is made of 304 mirror stainless steel.

3.Intelligent LCD temperature control instrument, with timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning, fan automatic speed regulation, door control and other functions (automatic heating off when opening the door effectively prevents the machine from overheating).

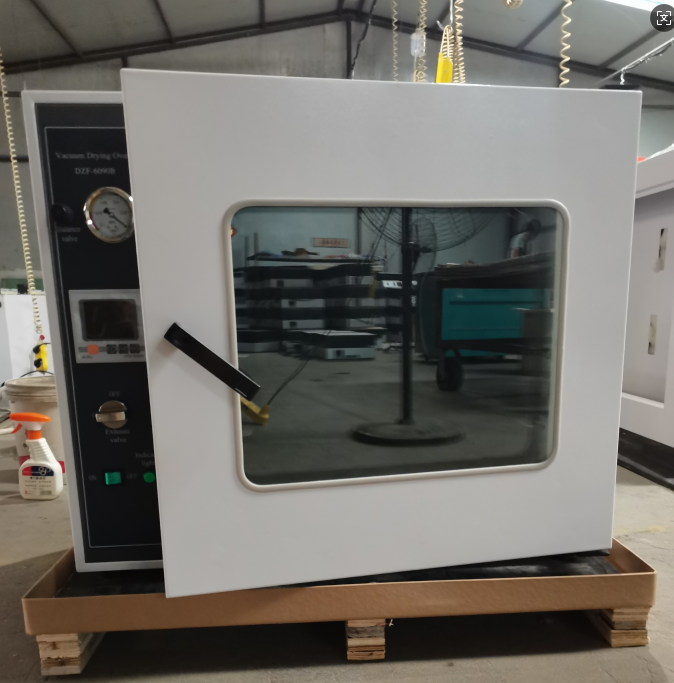

4.Thickened double-layer tempered glass observation window, convenient for observing changes in items in the box.

5.Adopting new synthetic silicone sealing strip, it has beautiful appearance, can operate at high temperature for a long time, and has a longer service life.

6.It can be equipped with over-temperature protector, timer, program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions.

7.The equipment is equipped with a fan speed control switch, and users can adjust the wind speed or automatic wind speed according to their needs.

8.Accurate: High-precision microcomputer LCD display temperature controller, accurate and reliable temperature control.

9.Rapid: Fast heating, forced convection, dry hot air directly passes through the heated object, and the drying and disinfection time is significantly shortened.

10.Safety: Automatic interruption when exceeding the limit temperature to ensure the safety of personnel and instruments.

Tips: After the fan is turned off, the temperature deviation in the working room is large, and the fan should not be turned off without special circumstances.

Application areas

- Electronic industry: used for drying and curing electronic components such as capacitors and resistors, preheating circuit boards before welding and curing after welding.

- Chemical industry: drying chemical raw materials, intermediates, etc. to promote chemical reactions, such as drying plastic particles and curing coatings.

- Automobile industry: automobile parts such as brake pads and interior parts need to be dried and cured in industrial ovens during production.
