Electronic Automated Pill Counter Capsule Tablet Counting And Filling Machine

  • Lead Time:

    3-5
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Model Number:

    PBDS-8
  • Minimum Order Quantity:

    1
  • Mixing method:

    Touch Screen
  • Capacity:

    30-50 Bottles/min
  • Voltage:

    220V
  • Power:

    600W
  • Product Details

PBDS-8 Automatic Capsule & Tablet counting machine

Product Introduction



The electronic counting machine PBDS-8 is a kind of light and compact counting and filling equipment for solid particles. It adopts the internationally advanced 8-channel vibration, computer control, dynamic scanning counting, automatic bottle conveying and photoelectric control. It is designed in strict conformance with GMP standard and equipped with intelligent safety protection devices such as system self-inspection, error warning and automatic shutdown. As a high-tech material counting and filling machine, the PBDS-8 is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food, health care products and other materials.

Product Parameter




Capacity 30-50 bottles /min
Size of Capsule
#00-#5 Capsule
Voltage
AC220V , 50/60Hz
Power
600W
Air Consumption
0.8 M3/h
Hopper Volume
30 liters
Overall Dimension
1600*1500*1600mm
Weight
200kg

Application



The PBDS-8 is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food, health care products and other materials.

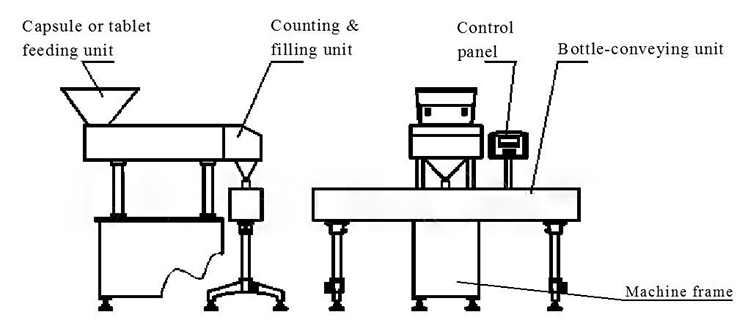

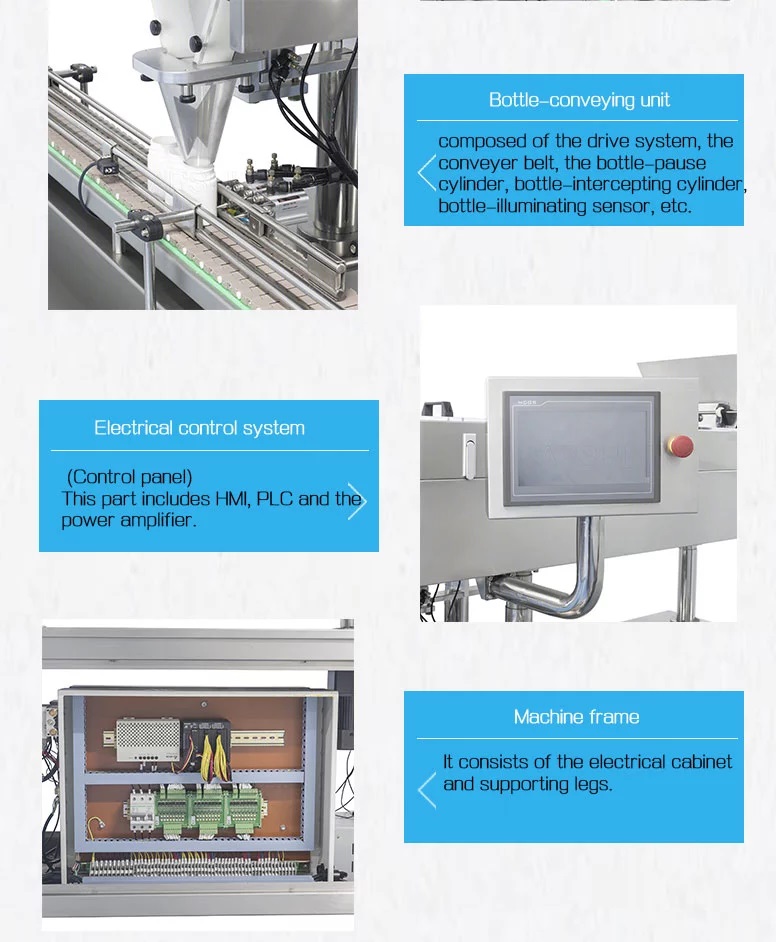

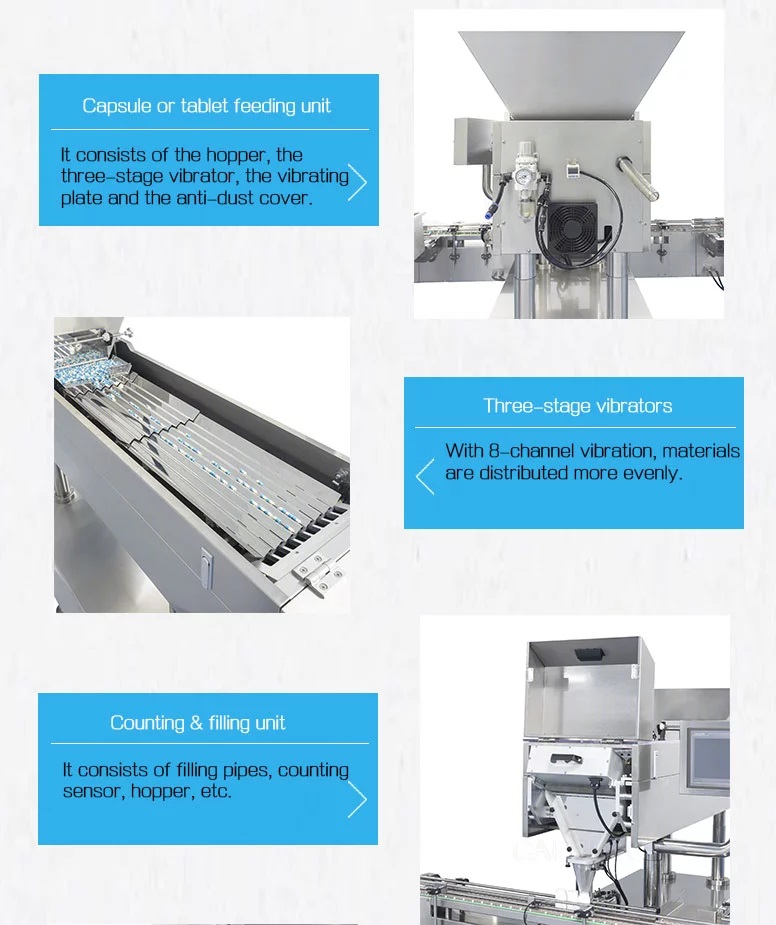

Detail Image






Packing
