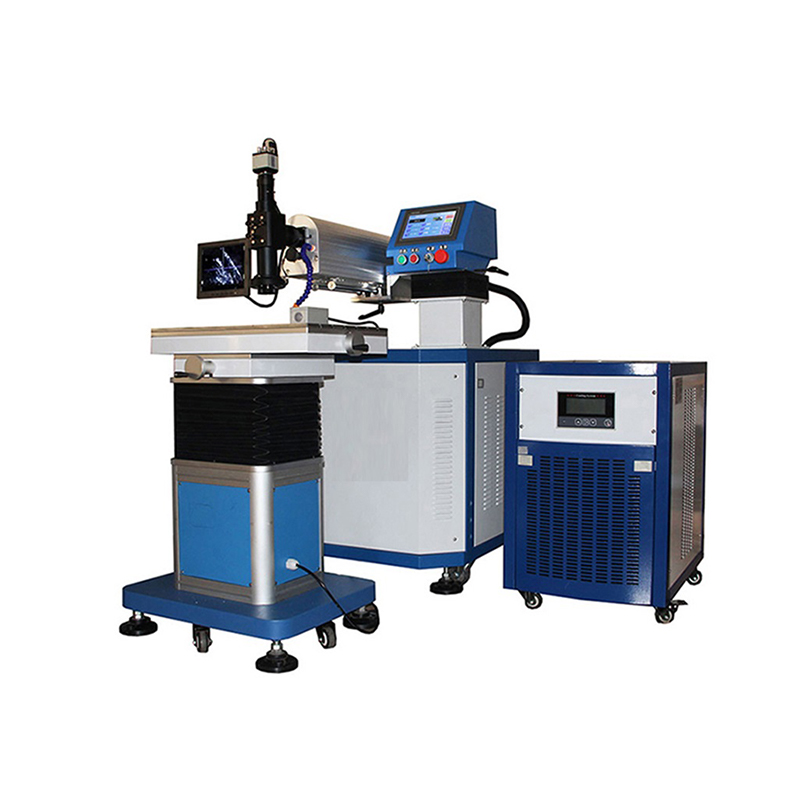

Fiber Welding Laser Machine For Car

It is to use high energy pulse laser to weld the workpiece, the weld is deep and narrow, the weld is bright and beautiful.
  • Item NO.:

    DGW-M
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details


PRODUCT DETAIL

Parameters
Model Number
DGW-M
Laser Power
200W/400W optional
Laser Wavelength
1064nm
Cooling System
Water Cooling
Pulse Frequency
1-100HZ
Pulse Width
0.1-20ms
Spot Diameter
0.1-3mm
Repeat Accuracy
+0.01 mm
Cabinet Size
700*1450*1680mm
Observation System
CCD camera
Working Table Load Capacity
150kg
Power comsumption
9KW/12KW
Machine Voltage
Ac220V/380V 50-60HZ 3-phase
Focus lens focal length
F=120mm
Working Table Traveling
X=100mm Y=150mm


ADVANTAGES

It is to use high energy pulse laser to weld the workpiece, the weld is deep and narrow, the weld is bright and beautiful.Fast melting process, fast welding speed, small thermal deformation, small area of heat affected area, high cooling rate after welding easy to make the weld microstructure fine, weld strength, toughness and high comprehensive performance.Precise control.

APPLICATION

Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.

Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61,H13, W302, GS2344, GS2343, GS2082, etc.

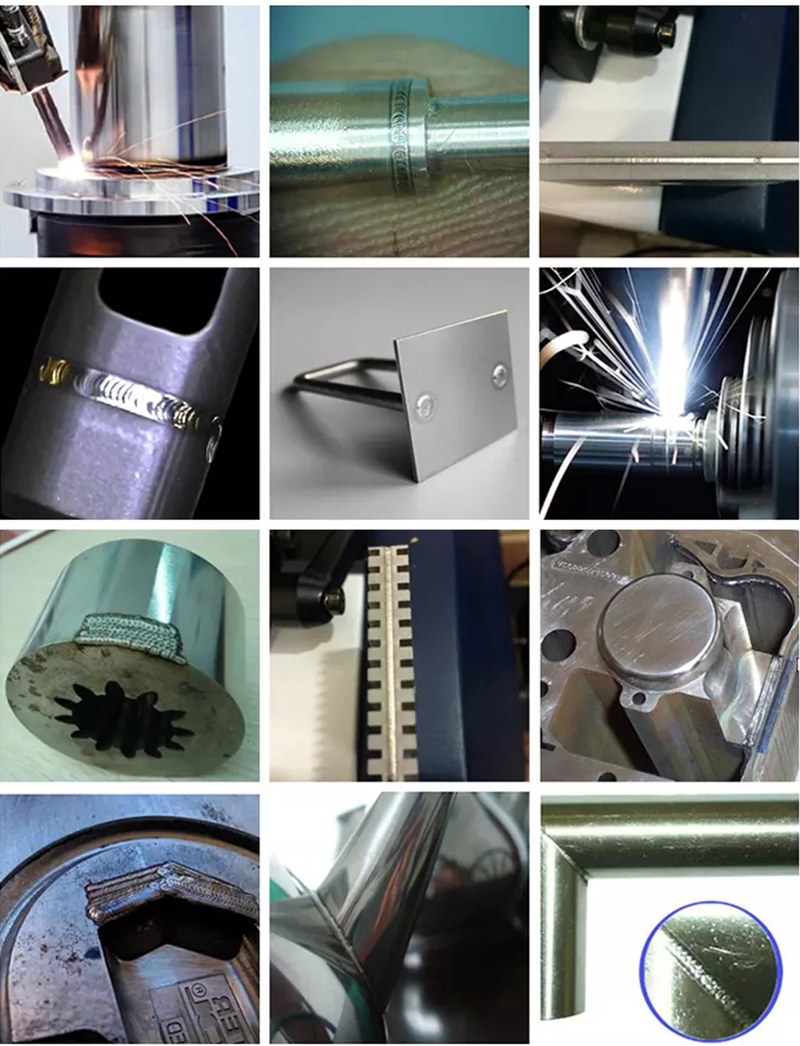

SAMPLES
