Ginger Washing Peeling Drying Processing Ginger Powder Grinding Machine

  • Lead Time:

    3-5
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Minimum Order Quantity:

    1
  • Operation method:

    Electric
  • Power:

    380
  • Warranty:

    1year
  • Product Details

Introduction of Ginger Powder Processing Line:

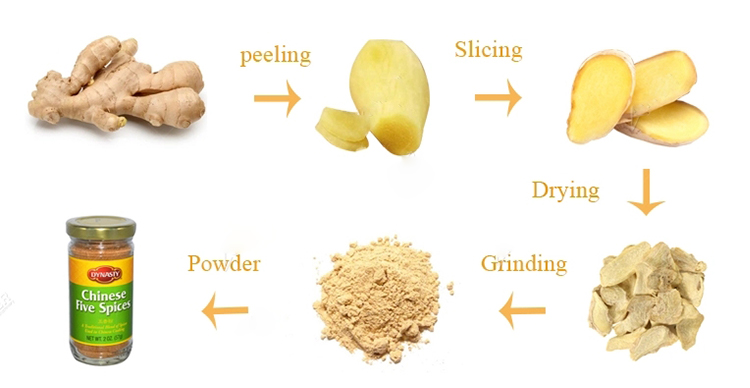

The Ginger Powder Processing Flow includes the ginger washing and peeling machine, ginger cutting machine, blanching machine, drying machine and the ginger powder grinding machine.

Size nformation:

NO. Name Power(kw)
Size(mm)
Capacity

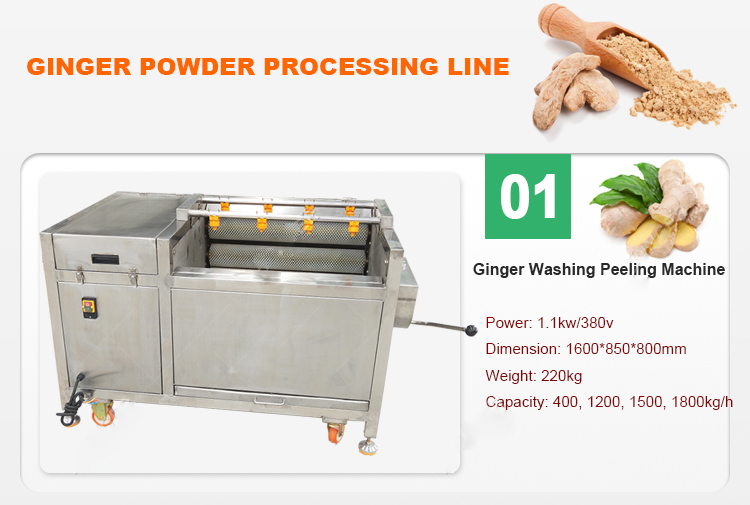

1 Ginger washing and peeling machine
1.1kw/380v
1600*850*800mm
400kg/h

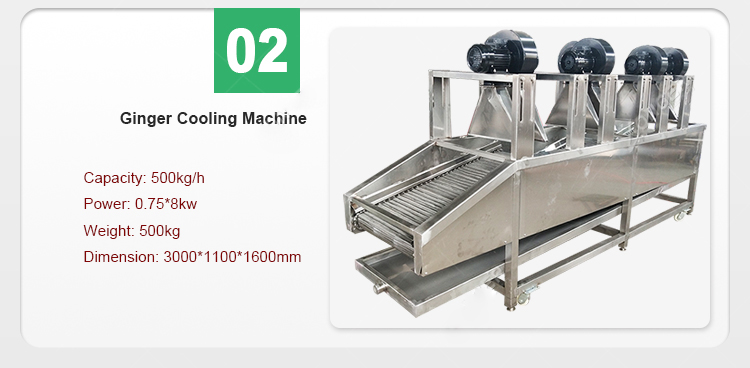

2 Ginger cooling machine
0.75*8kw
3000*1100 *1600mm
500kg/h

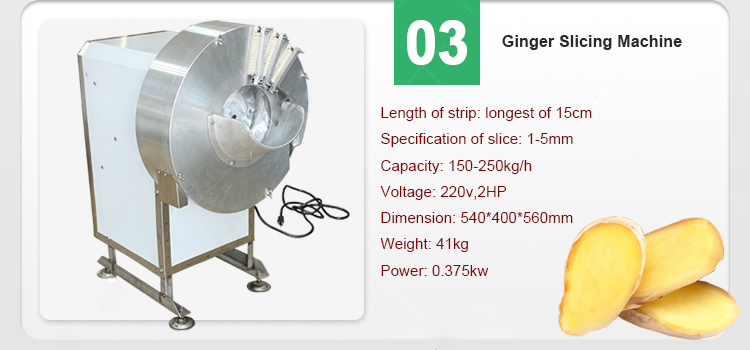

3 Ginger Slicing Machine
0.375kw 540*400*560mm
150-250kg/h

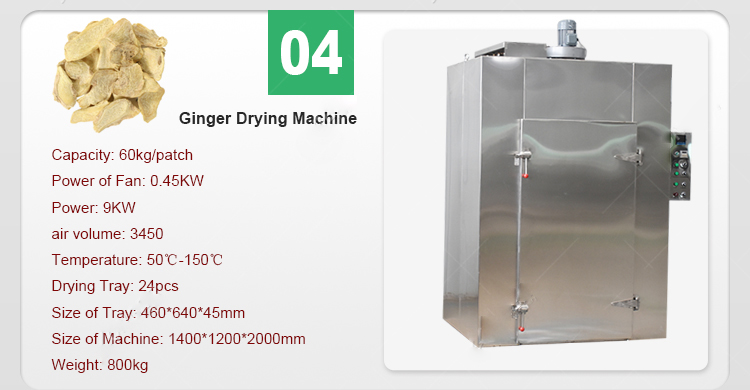

4 Ginger Drying Machine
9kw
1400*1200*2000mm
60kg/patch

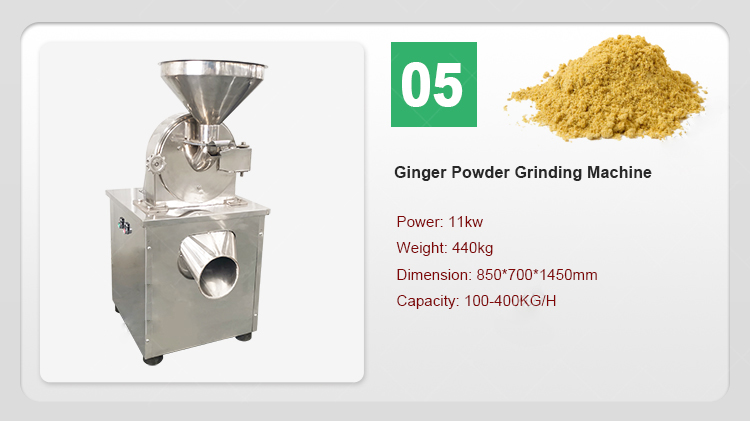

5 Ginger Powder Grinding Machine
11kw
850*700*1450mm
100-400kg/h
Detailed Images:
