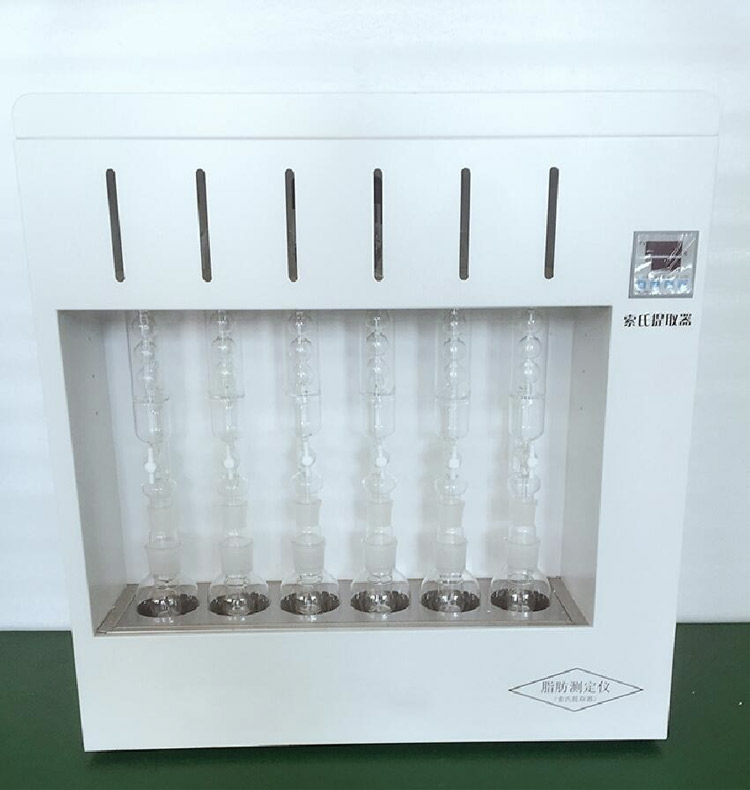

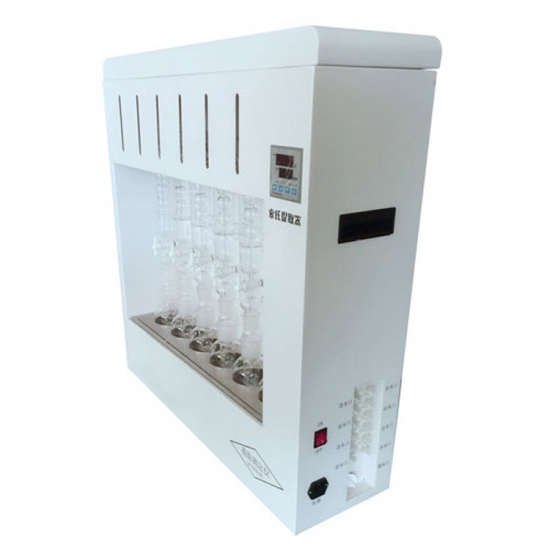

Lab Automated Liquid Soxhlet Extractor

Soxhlet extraction, for the determination of the weight of principle,soak, extraction, heating, condensation and solvent recovery in one
  • Minimum Order Quantity:

    1
  • Compliance:

    CE Certified
  • Model Number:

    OLT-SXT-06
  • Warranty:

    Two Years Limited Warranty With Lifetime Support
  • Payment:

    CE Certified
  • Weight:

    26KG
  • Packaging Details:

    Export wooden package
  • Product Details

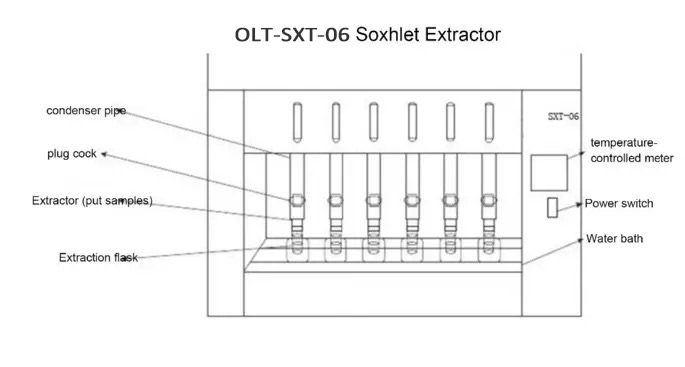

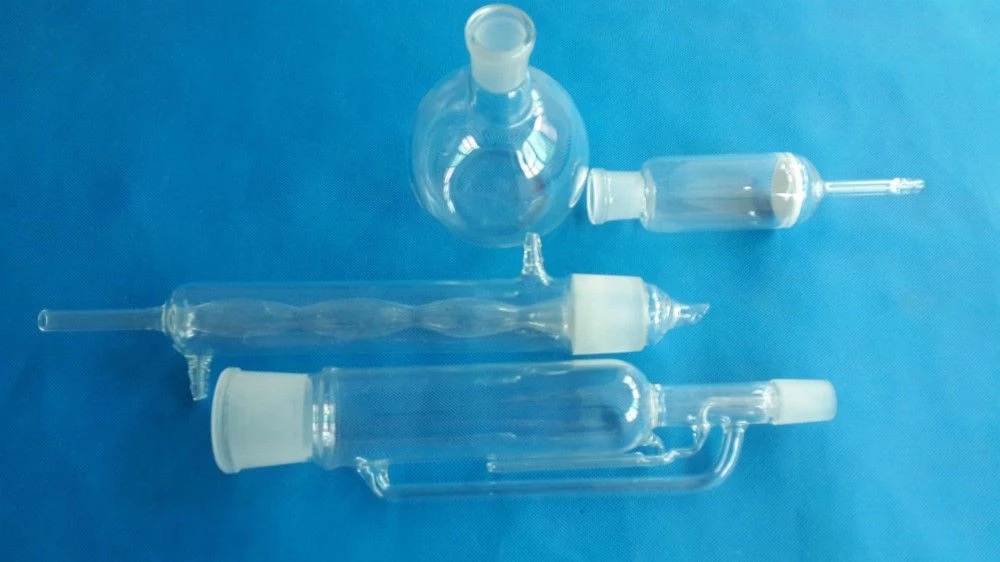

Soxhlet extractor, also called fat extractor or fat extractor.Soxhlet extraction apparatus is made up of three parts of extraction, extraction pipe, condenser, extraction, respectively, on both sides have a siphon tube and connecting pipe, each part of the joint should not leak tight.To test the sample extraction, wrapped in defatted filter bags, in the extracting pipe.Join the petroleum ether extract the bottle, bottle of heating extraction, the petroleum ether gasification, by connecting pipe up into the condenser, liquid drops condensed into the extraction tube, leaching the lipid in the samples.With petroleum ether extraction tube liquid level reaches a certain height, soluble petroleum ether with thick fat extracted by siphon flow into the bottle.Into the petroleum ether extract the bottle continue to be heating gasification, rise, condensation, drip into the extraction tube, cycling until extraction completely.



1.Run 2 or 6 samples simultaneously by just pushing one button,save time and money.
2.Reduced solvent consumption and lower running costs.
3.High speed heating and individual heating zones.
4.Achieve the best reproducibility thanks to time control and warning function.

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
.
