Model Number:
OLT-LW220Compliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
220LVoltage:
108V-380V 50/60HZWarranty:
3 yearDimension(L*W*H):
1000*850*2100mmWeight:
330kgPackaging Details:
Export wooden packageDelivery Time:

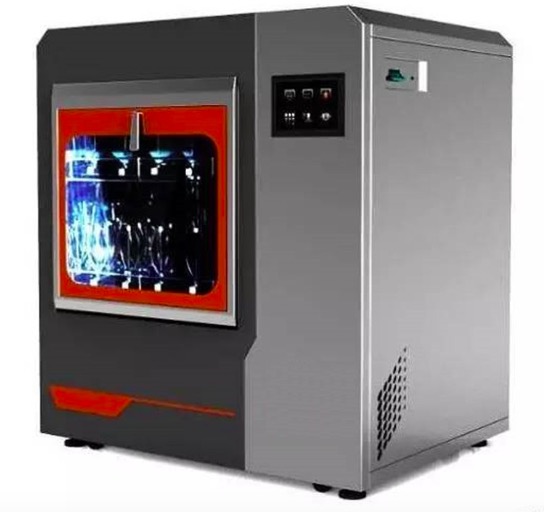

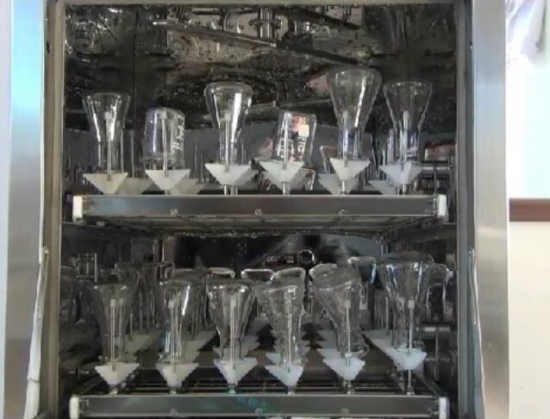

6-8 dayThe lab glassware cleaning machine is mainly made of cleaning frame, cleaning system, flushing system and control circuit, etc. It can be connected to cool water, heat water, and deionizedwater to clean, disinfect and dry all kinds of lab glassware.
Model
OLT-LW120
OLT-LW220
OLT-LW320
OLT-LW420
Capacity
120L
220L
320L
420L
Water Consumption/Cycle
15L
25L
Inlet Water Pressure
0.3~1.0Mpa
Noise
<50dB
<55dB
Material
Stainless steel
Overall Power Consumption
6KW
6.5/16.5KW
6.5/18KW
18kW
Power Consumption-Water Washing
0.75KW
1.5 KW
2.8KW
Power Consumption-Water Heating
5KW
5/15KW
15KW
Power Consumption-Drying
2.1 KW
3.6KW
Power Supply
AC108V-220V, 50Hz
AC108V-220V, 50Hz; 380V, 50Hz
380V, 50Hz
Cleaning Racks
1 pcs
2 pcs
3 pcs
2 pcs
Standard Accessories
One bucket RBS A 150 leaner (1 L), One bucket RBS A 375 neutralizer (1 L)
Optional Accessories
USB interface, printer, Cleaning racks
External Size(W*D*H)mm
960*740*850
780*690*1760
790*690*1950
1100*900*2165
Package Size(W*D*H)mm
1100*950*1050
1000*850*2100
1000*840*2180
1270*1025*2240
Gross Weight(kg)
145
330
350
400
* USB interface and printer are optional;
* Price above includes standard volume of detergent and neutralizer

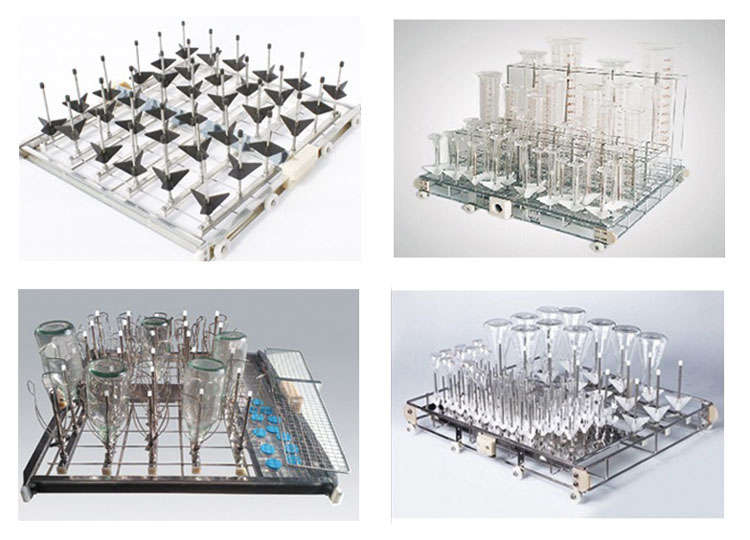

* Washer racks are sold separately and can be customized;
* High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program;
* Rapid and efficient drying system, designed with independent air heater, HEPA filter and thorough drying process;
* Water heating temperature can be reached 99C, while hot air drying temperature can be reached 120C;
* Professional configuration design—stainless steel for corrosion resistence; two inlets for both tap water and pure water and one outlet in antibackflow design; reinforced glass window mounted to achieve a clear view on washing process;
* Excellent control system—PLC touch screen control with preset 6 programs(including one customized program) to monitor all the operation processes;
* Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch;
