Lab Ultrasonic Microwave Cooperative Extractor

Model Number:
OLT-CR-30
Minimum Order Quantity:
1
Voltage:
AC 108V-220V
Power(W):
1360W
Weight:
25kg
Dimension(L*W*H):
430mm×512mm×510mm
Lead Time:
6-8 Day
Payment:
Western Union, T/T, L/C
Warranty:
1 year

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

A multiuse instrument: three action modes including ultrasonic, microwave and cooperative mode are provided in a real multi-use instrument; best choice for the methods and mechanism research of chemical reaction, chemical synthesis, material preparation, chemical sample pretreatment, etc

Efficient ultrasonic oscillations: ultrasonic oscillations energy directly act on sample reactor, high acoustic vibration efficiency, low energy consumption, low noise; design of acoustic vibration and wireless, more convenient to put in and take out sample reactor.

A large treatment capacity: up to 500mL, greatly increase analysis sensitivity; meanwhile, reactor of different shape and volume can be made according to user's needs;

Model Number: OLT-CR-30

A multiuse instrument: 3 different modes of action include direct ultrasonic, opening microwave and cooperative mode

Microwave power: 10-800W (adjustable); microwave frequency: 2450MHz

Ultrasonic power/ frequency: 50W/40KHz

Microwave action mode: nonburst continuous microwave heating

Ultrasonic action mode: small power ultrasonic transducer directly connect to reactor, low noise,

acoustic vibration (energy) efficiency close to 100%

Microwave power control mode: time control, temperature control and constant power control

Temperature control: non-contact infrared temperature measurement, in the range of room temperature to 120ºC(±1ºC).

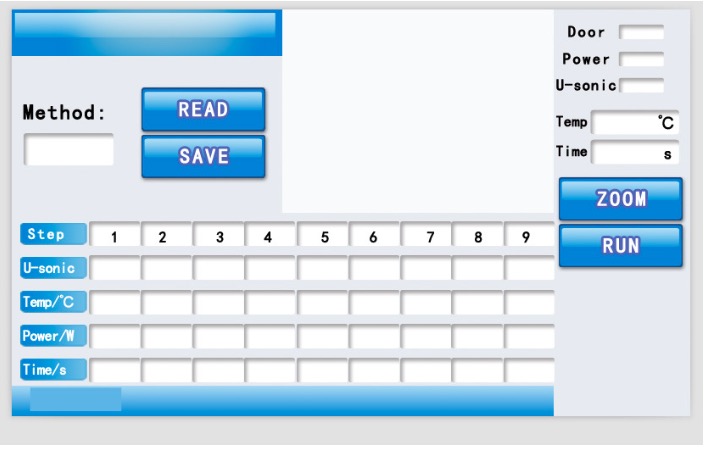

Program control: 9 programs can be set. Each program can be set 9 steps, each step may preinstall parameters such as time (1-999s), microwave power, working temperature, action mode control and ultrasonic (on/off).All the parameters are saved by computer, set, modified and called when needed.

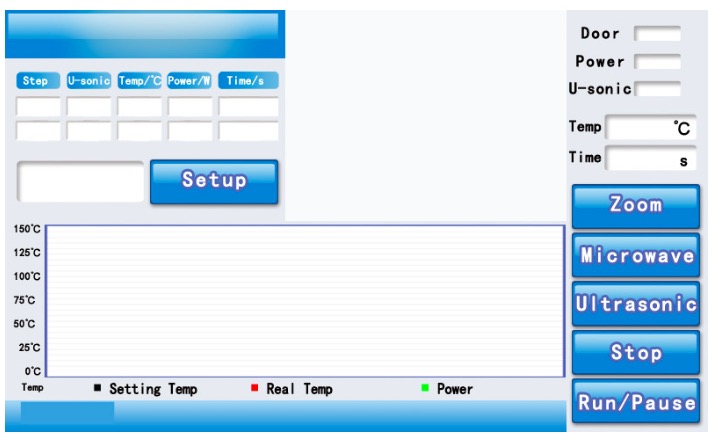

Reactor monitor: real-time video monitor sample reaction state by 4" LCD

Reactor volume: 100mL, 250mL, 500mL (reactor of special specification can be made according to user's needs)

Power source: 108V-220V±10%

Input power: 1360W

Furnace chamber volume: 27L

Exterior size: 430mm×512mm×510mm

Weight: 25Kg

Operation is intuitionistic and convenient: microwave power and action time are adjustable, ultrasonic and microwave action mode and its degree may combine and set freely. Reaction condition and temperature are real-time monitored;

Multiple power control mode: time control, temperature control and firm power control make it possible for the operator to choose according to different sample system, analysis task and reaction type;

Condition of low temperature and normal pressure: reduces the destruction of the sample's organic structure;

Safe and reliable: condition of low temperature and normal pressure, no need to process or buy reactor made by special material, the operation will be safer. Direct ultrasonic vibration has a higher efficiency and lower noise. Microwave leakage is less than 0.3mW/cm2 (national standard is 5 mW/cm2);

Wide application: widely used in sample pretreatment of organic, inorganic and biology analysis. Especially as a new reactor, it can widely used in university or scientific research unit for them to carry out many significative research operations about chemical reaction, organic synthesis, sample digestion or extraction;

Packaging:

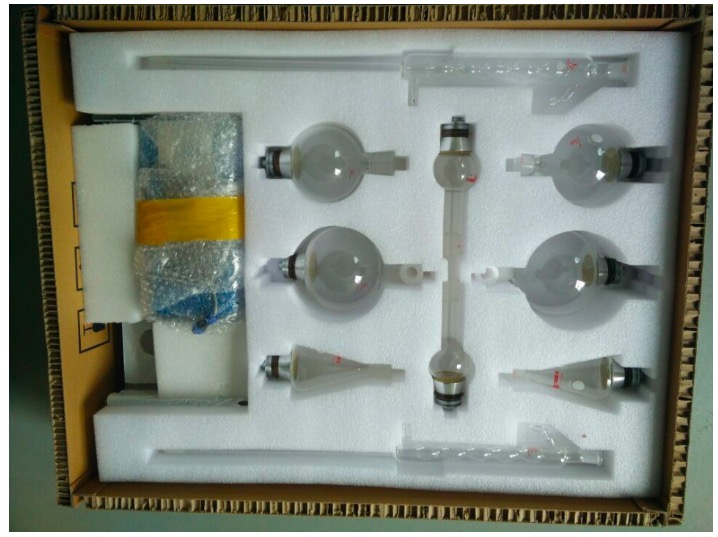

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.
