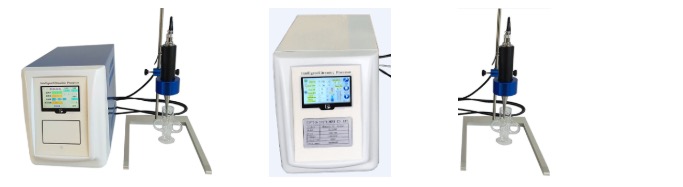

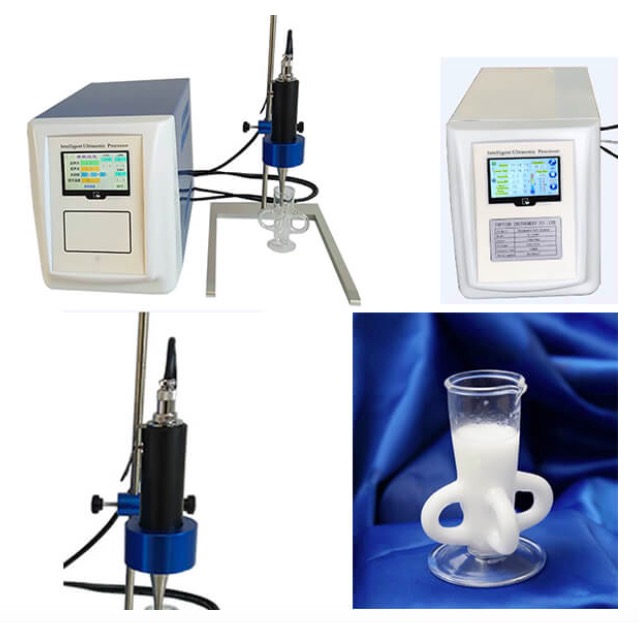

1Ultrasonic Homogenizer through its “cavitation effect” achieve oil blended with water emulsification, water blended with oil emulsification, dispersion phase and continuous phase mixing homogenization, it’s an advanced phonochemistry method to replace the traditional emulsify process such as propeller and colloid mill,etc. An important feature of ultrasonic emulsify is that you don’t need use or use little emulgator to get most stable emulsion.
Instruments add automatic or manual operation working mode ( foot switch is optional ); ultrasonic powercould be continuously adjustable with 1% precision, transducer has small size and light weight, you could hold it in hand to do micro sample research, also could put it on fixed support.
| Model |
Frequency (KHz) |
Power Ratio |
Horn (mm) |
Disruption Capacity (ml) |
Optional Horn (mm) |
Temp alarm range |
Display |
| OLT-UC150W | 22±1 |
1%-99% (5-150W) |
Φ6 | 0.2-150 | Φ2,Φ3 | 1-99 | LCD display |
| OLT-UC250W | 22±1 |
1%-99% (10-250W) |
Φ6 | 0.2-250 | Φ2,Φ3 | LCD display | |
| OLT-UC650W | 22±1 |
1%-99% (10-650W) |
Φ6 | 0.2-500 |
Φ2,Φ3 Φ10,Φ12 |
LCD display | |
| OLT-UC1000W | 22±1 |
1%-99% (10-1000W) |
Φ6,Φ10 | 0.2-650 |
Φ2,Φ3 Φ10,Φ15 |
LCD display | |
| OLT-UC1200W | 19-23 |
1%-99% (10-1200W) |
Φ20 | 50-1000 |
Φ12,Φ15 Φ22 |
LCD display | |
| OLT-UC1500W | 19-23 |
1%-99% (10-1500W) |
Φ20,Φ22 | 200-1200 |
Φ12,Φ15 Φ22 |
LCD display | |
| OLT-UC1800W | 19-23 |
1%-99% (10-1800W) |
Φ20,Φ22 | 200-1500 |
Φ12,Φ15 Φ22 |
LCD display |
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
