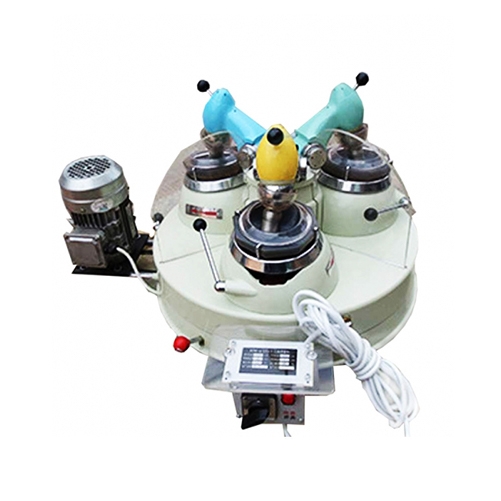

Laboratory levigation analysis mortar and pestle grinding miller

Laboratory levigation analysis mortar and pestle grinding miller
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen/Shanghai
  • Model Number:

    XPM
  • Power:

    0.37kw
  • Warranty:

    1 year
  • Dimension(L*W*H):

    750*700*480mm
  • Product Details


Product description of Laboratory levigation analysis mortar and pestle grinding miller

XPM 120x3 Laboratory Grinding Mill is a kind of grinding equipment which mill and analyze samples through dry grinding. Laboratory Grinding Mill are mainly used to mill and analyze samples by laboratories in departments such as metallurgy, building material, chemical, coal, water and electricity, commercial inspection, and geology. Laboratory Grinding Mill are also used to grind a small quantity of materials.


Model
Unit
XPM-120*3
Diameter of mortar
mm
120
Amount of grinder head
pcs
3
Rotary Speed of pestle
r/min
220
Rotary Speed of mortar
r/min
9
Feed size
mm
-1.5
Capacity of each bowl
g
30
Power
w
370
Overall dimension
mm
750*700*480
Weight
kg
105

Structure of Laboratory levigation analysis mortar and pestle grinding miller

The structure of Laboratory Grinding Mill is as shown in Figure to Figure. See Figure for its overall structure which is mainly composed of three sets of grinding heads, clutch, mortar support, etc.
