Laboratory Small Size Rubber Mixing Mill

  • Lead Time:

    1-3 days
  • Model Number:

    ZS-401A-120
  • Minimum Order Quantity:

    1
  • Screen:

    LCD
  • Warranty:

    1 year
  • Product Details


Two Roll Mill for Compounding Rubber is engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory.

Main technical parameters:

Model

ZS-401A-120

ZS-401B-120

ZS-401C-120

Size of roll (mm)

120X350 or customized

Heating mode

Electrical heating or oil heating

Cooling mode

Tap water cooling/oil cooling (optional)

Roller speed

Constant speed

Single speed regulator

Double frequency modulation

Motor power (Kw)

0.75X1®or customized

0.75X1® or customized

0.75X2or customized

Volume (mm)

1000X550X1200

1000X550X1200

1000X550X1200

Weight (kg)

350

370

400

Power supply

3ph, AC380V

Special models can be designed according to customers requirements


Features:


1. The rollers is made of chilled alloy cast iron with wear-resistant hard surface, to keep the surface temperature homogeneous, the cavities of rollers are machined.

2. Overload protection device is provided to protect the main parts from damages due to overload.

3. The reverse current plugging system is provided above the rollers in case of emergency. The safety rod is pulled down and the rollers will be stopped immediately.

4. The roller gap can be easily adjusted by hand wheel.

5. The mill is designed with planetary gear reducer which is of long service life, low noise, small volume and high drive efficiency.

6. Emergency stop device: Safety buttons are installed on both sides of roller. Also can install stop button by knee according to customer’s request.

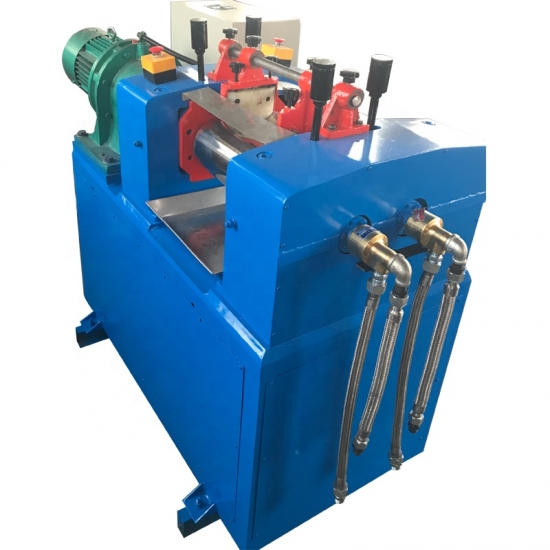

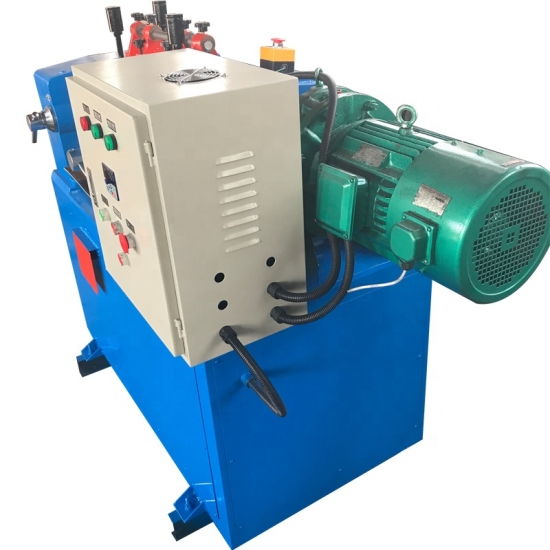

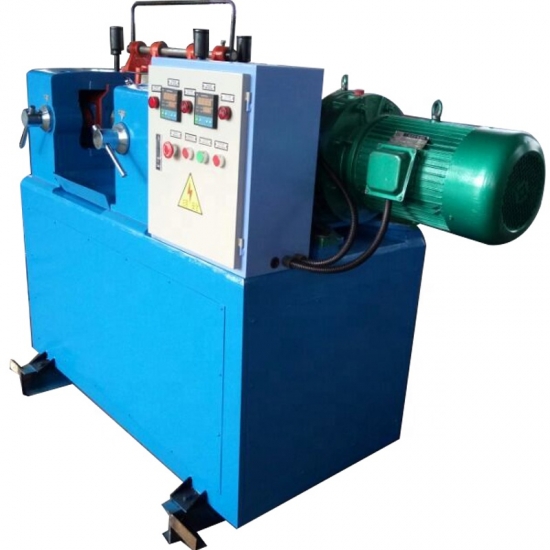

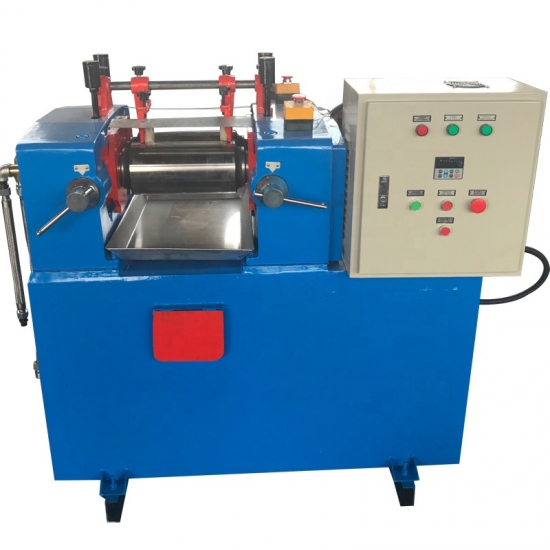

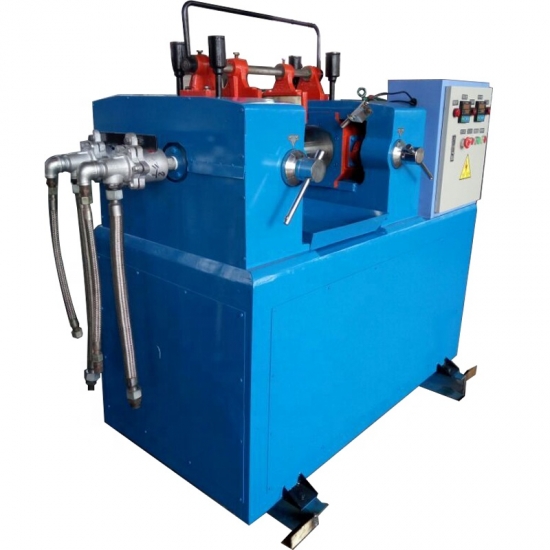

Product Display

Factory direct sale XK-160 small size rubber mixing mill for laboratory



Product Details


Factory direct sale XK-160 small size rubber mixing mill for laboratory

Packing & Shipping
