Lead Time:
3-5Product Orgin:
ChinaShipping Port:
XiamenVoltage:
220VWarranty:
1 yearWeight:
190Product Description

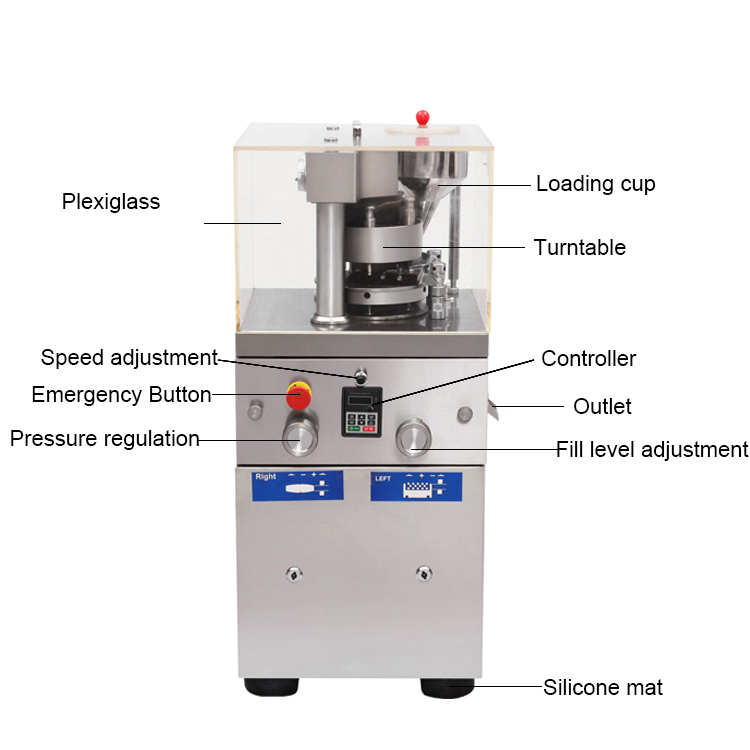

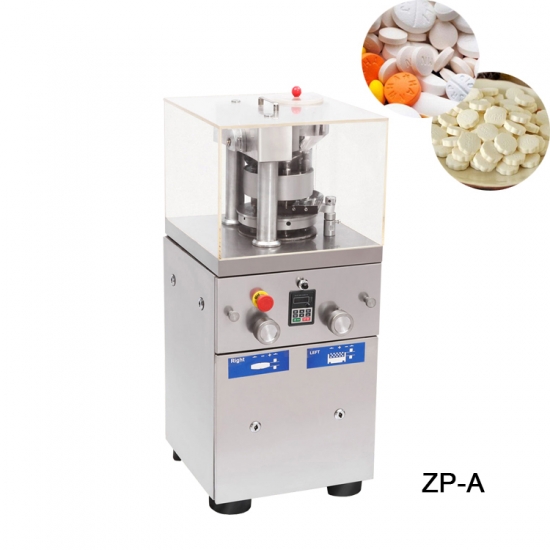

This machine is a single-pressure automatic rotating, continuous tableting machine that compresses the raw materials into various tablets. It is mainly used for the production of tablets in the pharmaceutical industry, and is also applicable to the chemical, food, electronics and other industrial sectors. The outer casing is in a fully enclosed form, the material is made of stainless steel, the inner table is made of stainless steel, and the surface of the turntable is specially treated to maintain surface gloss and prevent cross-contamination, in line with GMP requirements.
Product Parameter
Product Details
Sample Pictures
Model
ZP-5
ZP-7
ZP-9
Die number(sets)
5
7
9
Max. Pressure(kn)
40
40
40
Max. Tablet Diameter(mm)
12
12
12
Max. Tablet Thickness(mm)
6
6
6
Max. Filling Depth(mm)
15
15
15
Production Capacity(pcs/h)
9000
12600
16200
Weight(kg)
190
190
190
Dimension(mm)
480*490*1100
480*490*1100
480*490*1100
Voltage(V)
220
220
220
Motor Power(kw)
1.5
1.5
1.5
Packing & Shipping
