Lab Magnetic Stirring Micro Reactor

  • Model Number:

    OLT-HP-100ml
  • Minimum Order Quantity:

    1
  • Compliance:

    CE Certified
  • Power(W):

    80W(Mixing power)
  • Capacity:

    100ml
  • Use pressure:

    -0.1-10 Standard10Mpa
  • Service temperature:

    RT-350℃
  • Mixing speed:

    0-1500
  • Lead Time:

    6-8 Day
  • Warranty:

    1 year
  • Product Details

Micro reactor is suitable for petroleum, chemical, chemical, pharmaceutical,  polymer synthesis, metallurgy and other fields. For example, catalytic reaction, polymerization, supercritical reaction, high temperature synthesis, hydrogenation reaction, etc..

Model

OLT-HP-25ml

OLT-HP-50ml

OLT-HP-100ml

OLT-HP-250ml

OLT-HP-500ml


OLT-HP-1000ml

OLT-HP-2000ml

volume(ml)

25

50

100

250

500

1000

2000

Service temperature(℃)

RT-350℃,Higher temperatures can be customized according to customer requirements

Use pressure(Mpa)

-0.1-10  Standard10Mpa,Can be customized according to customer requirements

heating power(w)

600

1000

1500

1500

1500

1500

1500

control mode

1、PID artificial intelligence adjustment, LCD 2, program temperature control

Mixing form

Magnetic stirring

Mixing power(w)

80

Stirring speed(rpm)

0-1500

Positive and reverse regulation

Positive inversion

Temperature setting

Self setting function of temperature


Standard Configurations

Serial number Name Number Company Remarks
1 Chassis control display panel 1 set HTLAB
2 Finishing vessel 1 set 316L
3 Wika pressure gauge 0-16mpa 1 branch Germany
4 Bursting disc unit 1 slice C276
5 Thermocouple and extension wire 1 root OMEGA
6 Intake valve 1 individual
7 Intake valve 1 individual
8 Thermocouple sleeve 1 root 316L
9 Bottom pipe 1 root 316L
10 Graphite metal winding pad 1 individual
11 PTFE lining 1 individual Matching
12 Quartz glass lining 1 individual Matching
13 High-temperature magnet 2 individual
14 Torque wrench 1 slice
15 Fuse 2 branch
16 Instruction manual, certificate of approval, warranty card, packing list 1 copies each share

1, temperature warning function, over temperature alarm, self power-off protection.

2 、 input adopts digital correction system, built-in thermocouple and thermal resistance non-linear correction form, accurate and stable measurement

3, the use of advanced artificial intelligence adjustment algorithm, without overshoot, with self-tuning (AT) function

4, timing function: can be under different conditions for 1-9999 minutes between the timing control;

5, positive reversal: can control the mixing motor, forward and reverse alternately rotating mixing;

6, digital display function: speed, temperature and time are digital display.

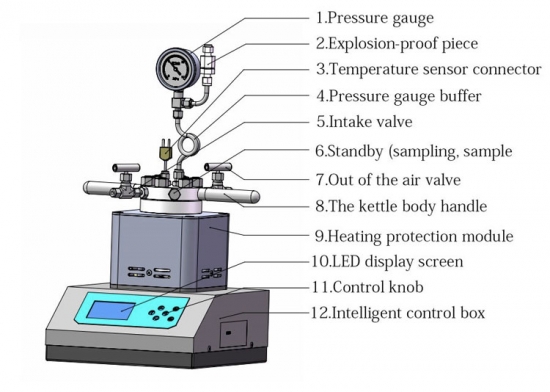

The accessories: intake valve, exhaust valve, liquid sampling valve, dip tube, pressure gauge, temperature sensor, explosion-proof membrane, high temperature magnetic etc.




Packaging:

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note

Express

Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
