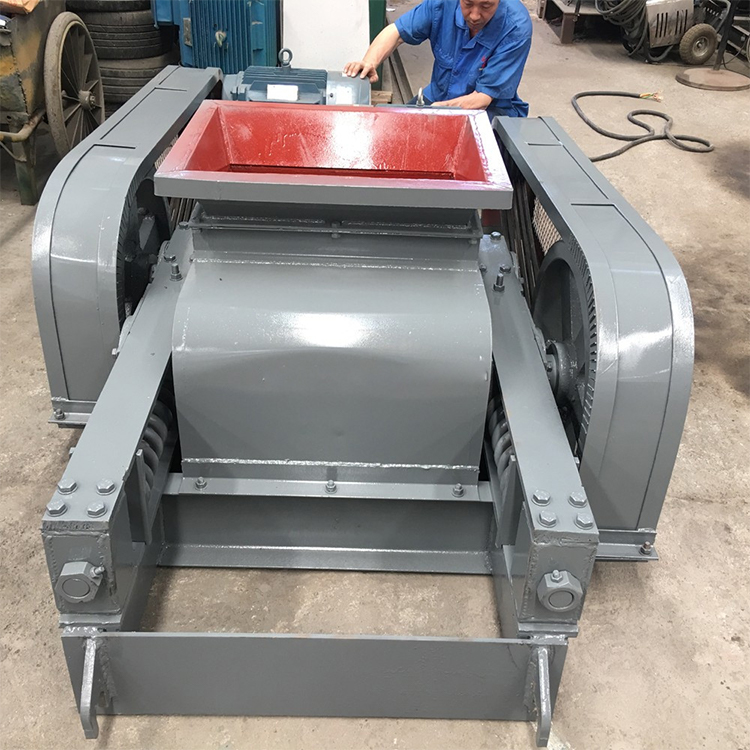

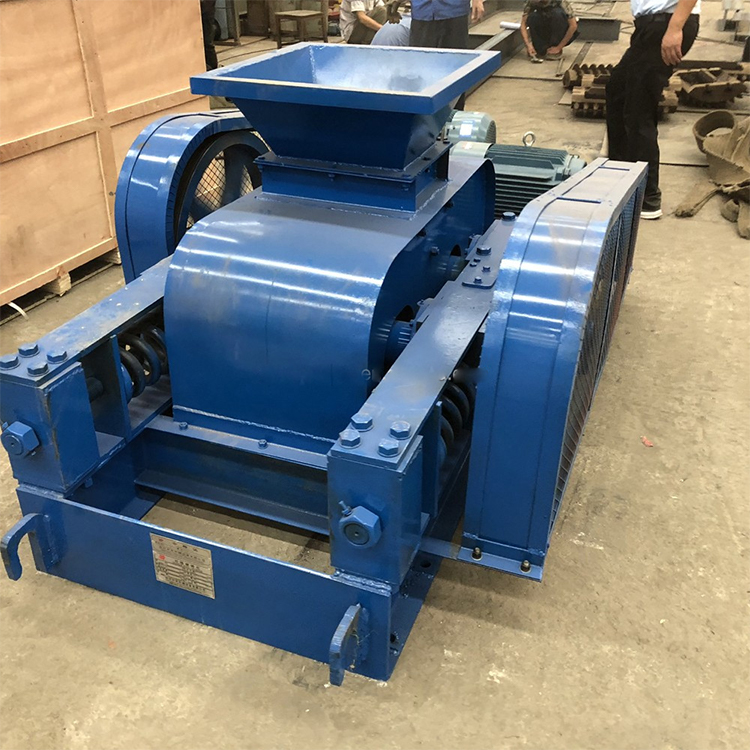

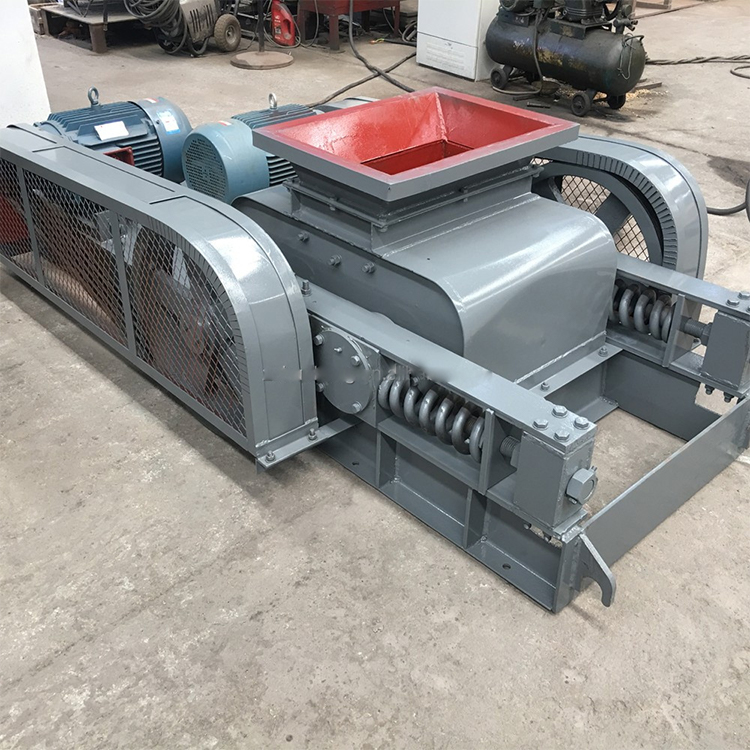

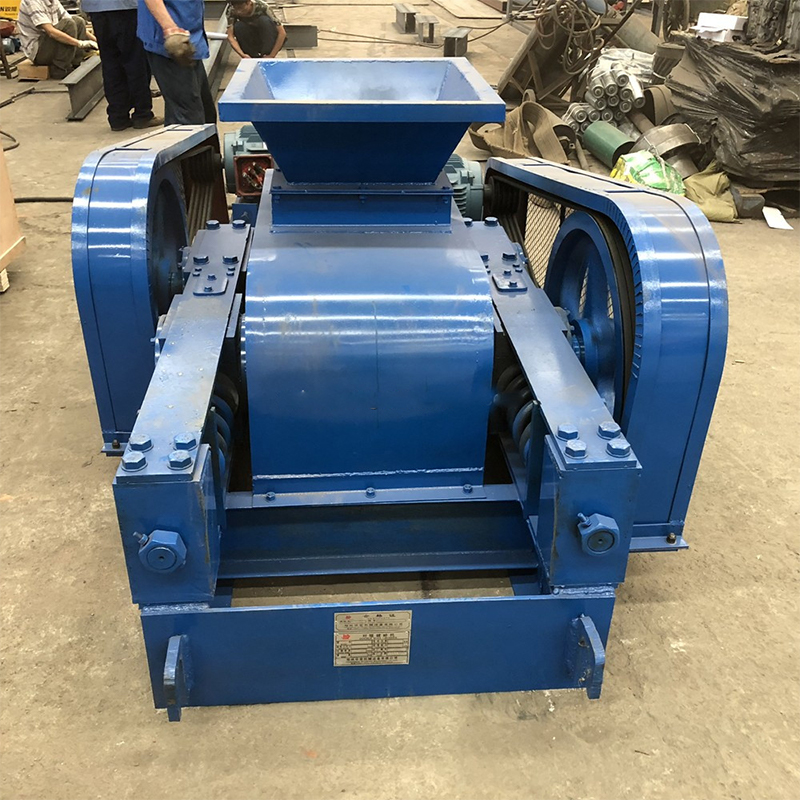

Tire Type Movable Coal Impact Crushers

The product can be classified into double roller crusher and four roller crusher according to the roller quality
  • Item NO.:

    2PG400X250
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details


1.The product can be classified into double roller crusher and four roller crusher according to the roller quality

2.The products are widely used in coal metallurgy ,mining,chemicals,building materials and other industries is more applicable to large-scale coal mine or coal preparation plant (including waste)is broken
3.Double roller crusher with stable operation, easy maintenance, low cost, output size adjustable

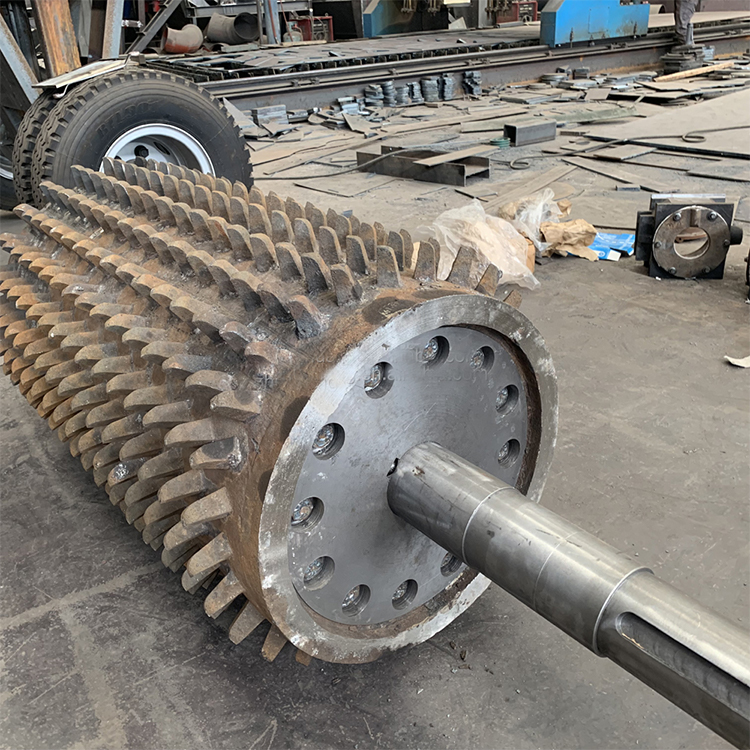

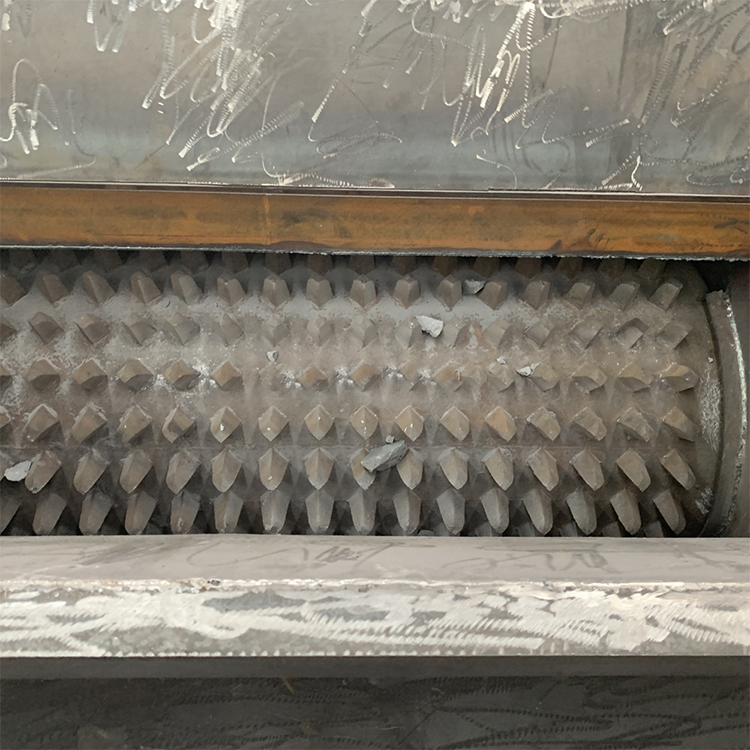

1.Drived by electromotor via reducer, two toothroller rotate inward synchronously in opposite direction;
2.Material dropping from the inlet to crushing chamber;
3.Classified by the tooth roller with tooth;

4.The massive materials would be crushed,cut, and then discharged in the discharging opening.

Model
Max.feed size(mm)
Output size(mm)
Capacity(t/h)
Motor
Weight(t)
Size(mm)
2PG400*250
≤350
15-125
20-30
11kw
2.8
2300*1050*900
2PG400*500
≤350
15-125
30-50
22kw
3.6
3000*1400*1200
2PG450*500
≤350
15-125
30-60
15kw
4.5 2260*2200*766
2PG600*750
≤350
15-125
60-100
30kw
7.2 2780*3065*1310
2PG600*900
≤350
15-150
80-120
37kw
7.8 4500*1900*1350
2PG900*900
≤350
15-150
80-120
45kw
13.5 3945*3450*1890
2PG1015*760
≤350
15-150
100-160
90kw
18.5 2780*4100*1500
2PG920*1200
≤800
20-150
150-200
75kw
16.5 3848*3408*1394
2PG1200*1500
≤1000
30-300
150-250
110kw
26 3370*3390*1945
