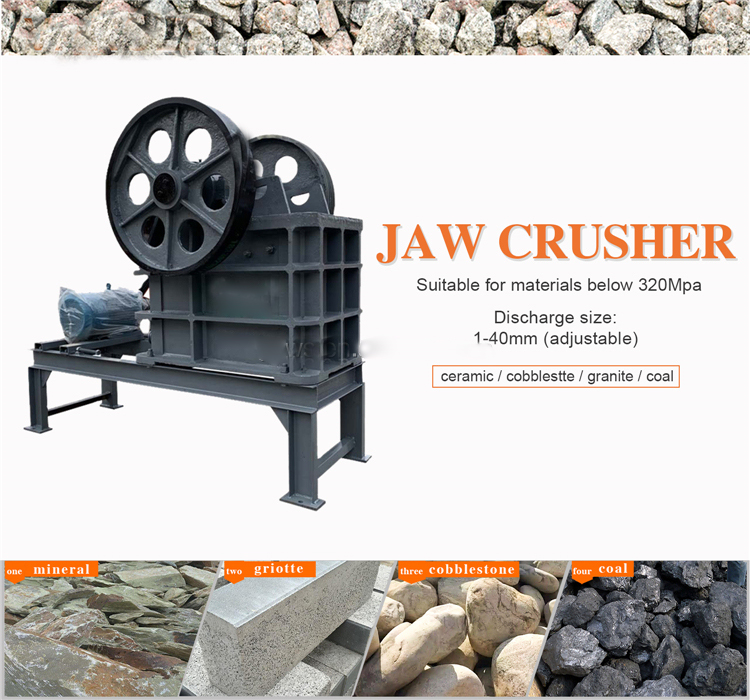

Portable Gold Mine Coal Mine Crushing Equipment

Jaw crusher is mainly used in metallurgy, mining, chemical industry, cement, construction, refractories and ceramics and other industrial sectors for medium and fine breaking of all kinds of medium and hard ores and rocks.
  • Item NO.:

    PE250*400
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

pe250*400 jaw crusher Portable gold mine coal mine crushing equipment



Parameter

Type number
PE-250*400
Size of feeding port (mm)
250*400
Maximum feed size (mm)
210
Adjustment range of discharge port (mm)
20-60
Processing capacity (T /h)
15-20
Eccentric shaft speed (R /min)
260
Motor Power (kW)
15
Total weight (t)
2.2
Overall dimension (l * w * h) (mm)
2000*1060*1700

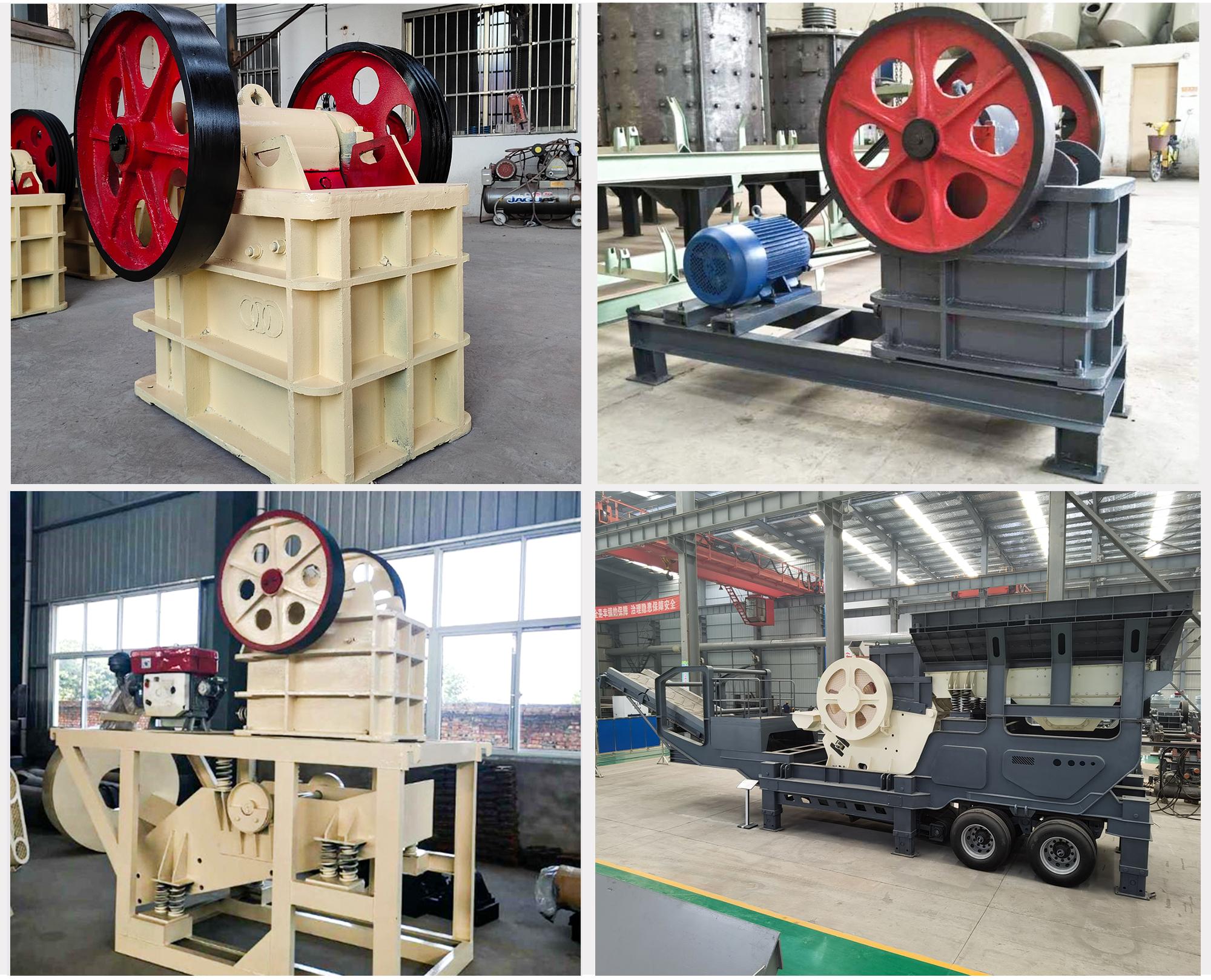

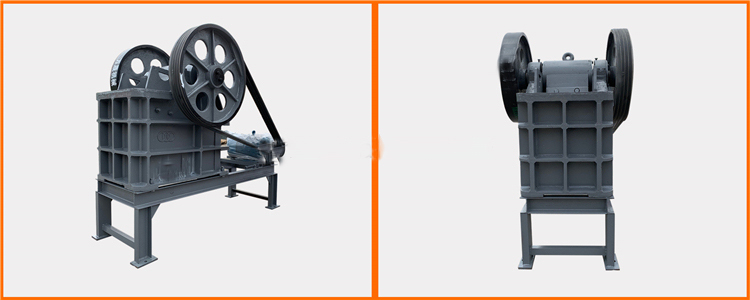

Other product demonstrations

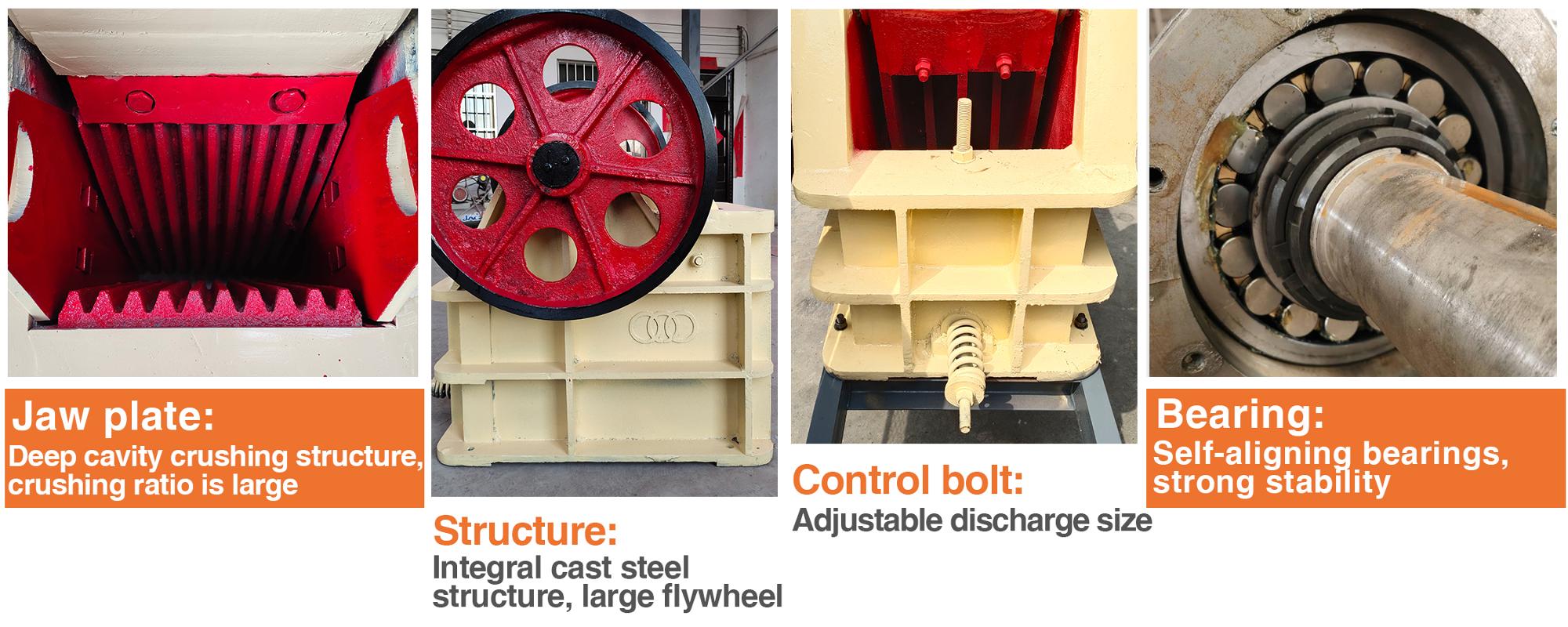

Product details display

1.Jaw plate : High manganese steel,high resistance to wear.
2.Structure : Whole welding,firm and durable
3.Bearing : Self-aligning bearings,strong stability
4.Control bolt : Adjustable discharge size

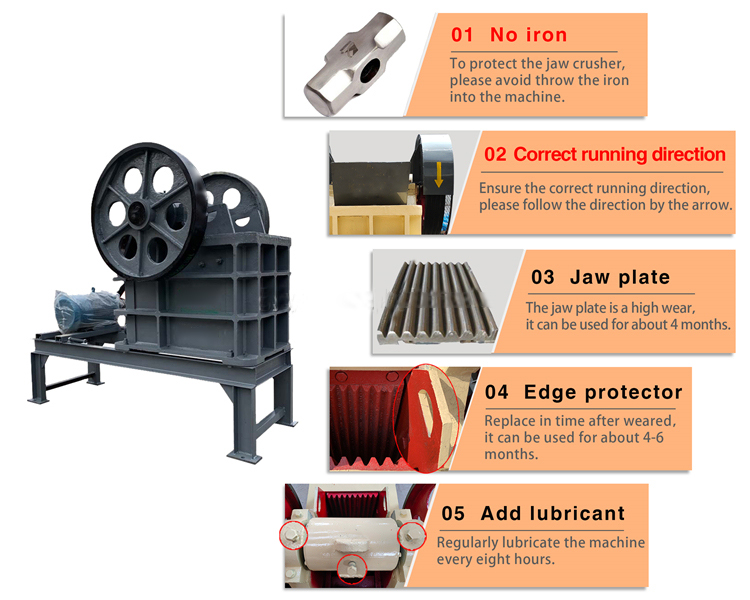

Operation and maintenance

1.To protect the jaw crusher,please avoid throw the iron into the machine.
2.Ensure the correct running direction,please follow the direction by the arrow.
3.Regularly replace the jaw plate and edge protector,if any wear,pleasere place it with new one.
4.Regularly lubricate the machine every eigh thours.

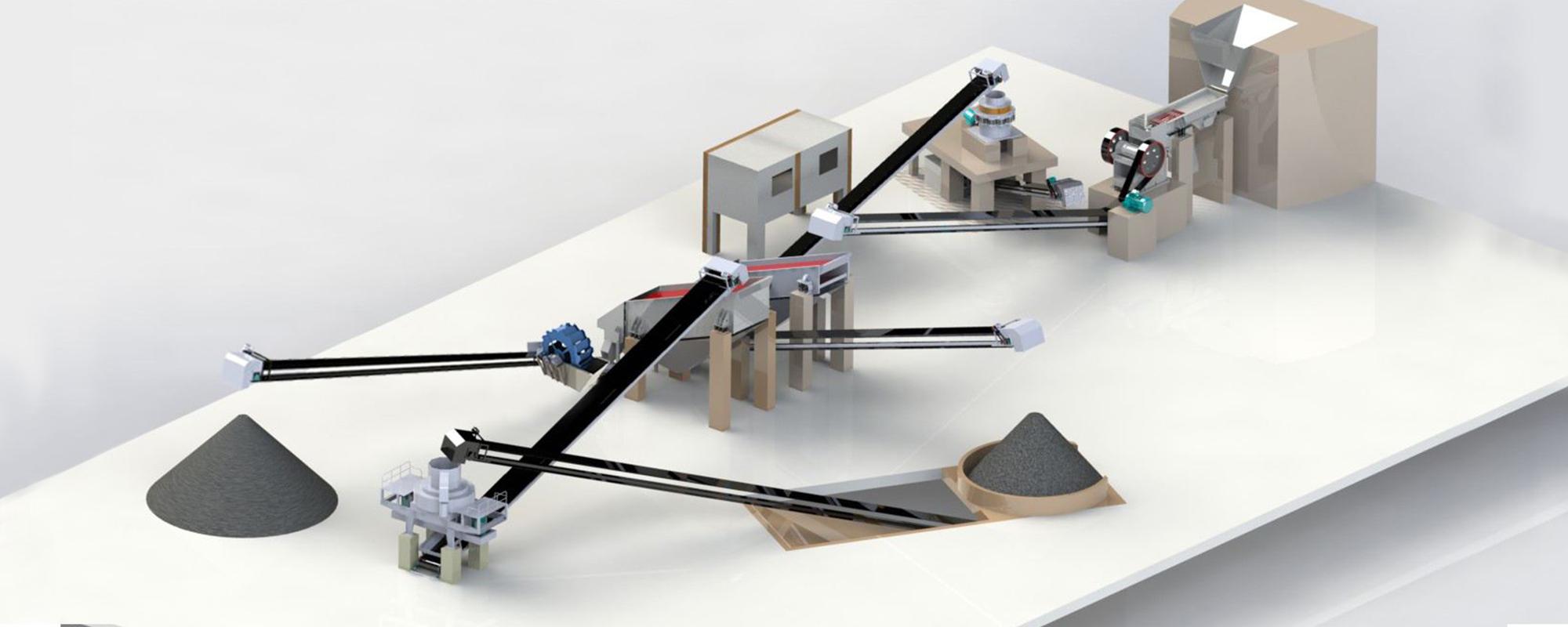

Simple Jaw Crusher Line
