Model Number:
XPMPower:
0.37kwWarranty:
1 YERADimension(L*W*H):
750*700*480mmWeight:
105kg

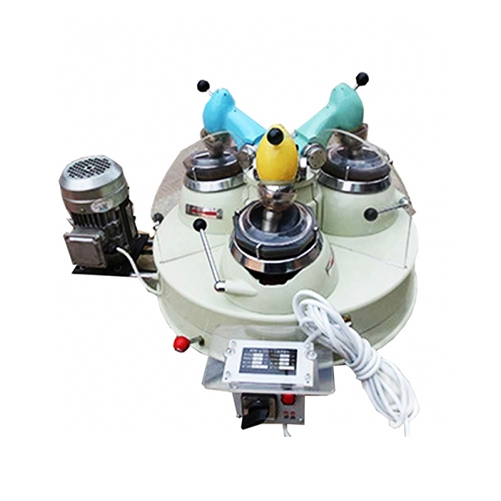

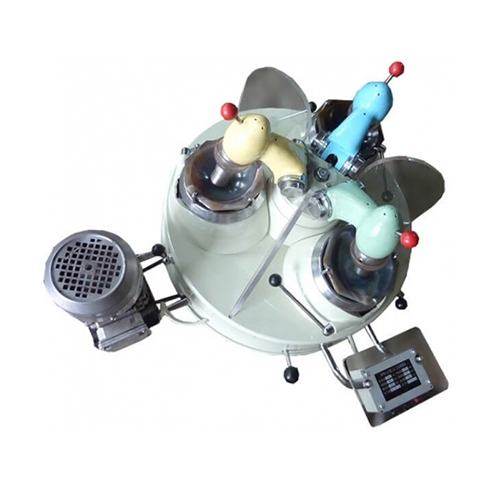

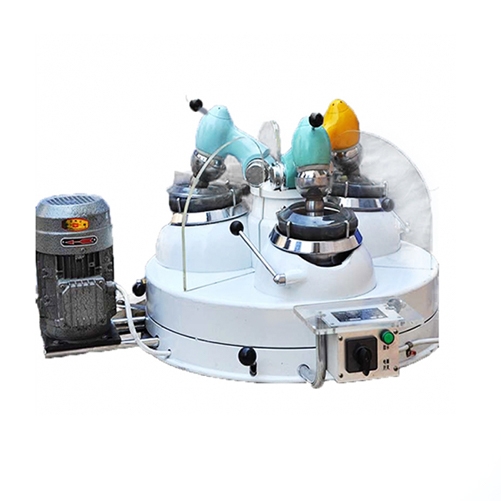

XPM 120x3 Laboratory Grinding Mill is a kind of grinding equipment which mill and analyze samples through dry grinding. Laboratory Grinding Mill are mainly used to mill and analyze samples by laboratories in departments such as metallurgy, building material, chemical, coal, water and electricity, commercial inspection, and geology. Laboratory Grinding Mill are also used to grind a small quantity of materials.
|
Model
|
Unit
|
XPM-120*3
|
|
Diameter of mortar
|
mm
|
120
|
|
Amount of grinder head
|
pcs
|
3
|
|
Rotary Speed of pestle
|
r/min
|
220
|
|
Rotary Speed of mortar
|
r/min
|
9
|
|
Feed size
|
mm
|
-1.5
|
|
Capacity of each bowl
|
g
|
30
|
|
Power
|
w
|
370
|
|
Overall dimension
|
mm
|
750*700*480
|
|
Weight
|
kg
|
105
|

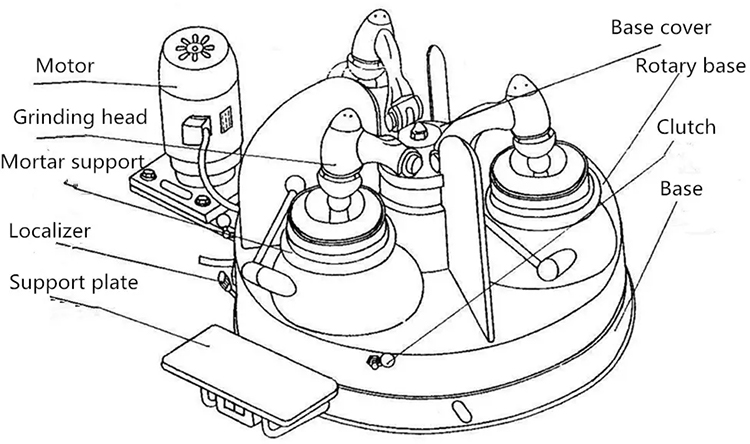

Structure of Laboratory levigation analysis mortar and pestle grinding miller
The structure of Laboratory Grinding Mill is as shown in Figure to Figure. See Figure for its overall structure which is mainly composed of three sets of grinding heads, clutch, mortar support, etc.
