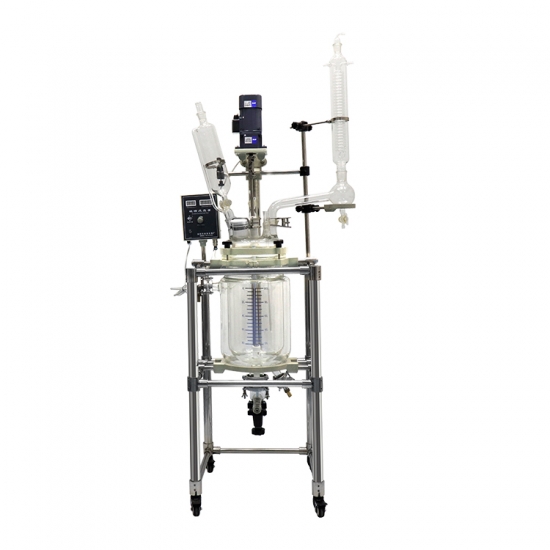

10L Electric Heating Tank Lab Glass Reaction

Lead Time:
1-3 days
Model Number:
DGR-10L
Compliance:
CE Certified
Minimum Order Quantity:
1
Capacity:
10L
Warranty:
1 year

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

Factory Direct Selling Glass Reaction Kettle

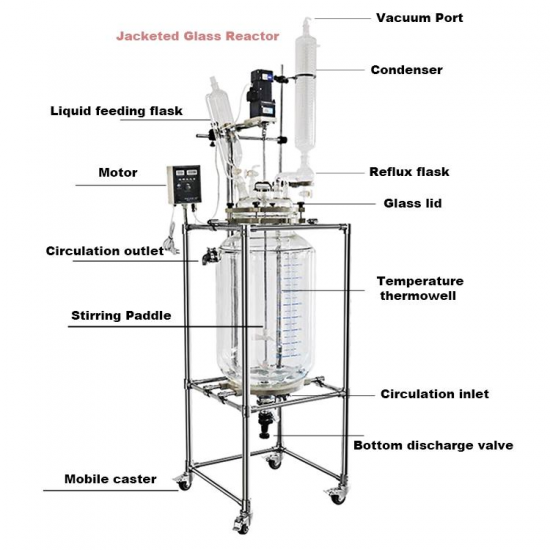

For special applications, Jacketed glass reactor is designed with a jacket for heating or cooling. Jacket is sealed to the vessel with Viton 'O' ring and other sealing compositions. The seal prevents high stresses between vessel and jacket by allowing the movement flexibility between two due to thermal expansion. This Jacketed glass reactor can be used for vacuum stirring reaction, high temperature and low temperature reaction, constant speed operation mixing reaction, distillation, reflux, concentration reaction , negative pressure operation and so on.

Jacketed glass reactor capacity range:1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,fully meet the request of small laboratory experiments and pilot production in plant.

Specification

Model	DGR-10L	DGR-20L	DGR-30L	DGR-50L
Reactor capacity	10L	20L	30L	50L
Stirring speed ( rpm )	60 - 600
Stirring power	120W	250W	250W	370W
Dia. Stirring Paddle	12mm			16mm
Vacuum degree	0.098Mpa
Voltage ( V / Hz )	220V/50Hz or 110V/60Hz
Discharge valve	PTFE ( Teflon ) Bottom Discharge Valve
Explosion-proof	180W ex-proof motor
