Lead Time:
1-3 daysModel Number:
JGR-20FCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
2-200LWarranty:
1 year
JGR-F Series Decarboxylation Reactor
The crystallization process is a commonly used glass reactor for biochemical refinement, which combines the functions of the reactor and the filter. Lab1st crystallization reactor can make crystallization concentration, distillation, reflux, separation and purification which is an ideal instrument for oil processing.
|
Model
|
JGR-20F
|
JGR-30F
|
JGR-50F
|
JGR-100F
|
JGR-200F
|
|
Reaction Capacity (L)
|
2~20
|
5~30
|
5~50
|
10~100
|
30~200
|
|
Jacketed Volume (L)
|
6
|
10
|
16
|
30
|
40
|
|
Total (pcs)
|
5+1
|
5+1
|
5+1
|
5+1
|
5+1
|
|
Stirrer Port
|
50#
|
50#
|
50#
|
60#
|
60#
|
|
Air charging valve
|
34#
|
34#
|
34#
|
34#
|
34#
|
|
Solid feeding Port
|
80# Flange
|
||||
|
Thermometer Tube
|
DN25 Flange
|
||||
|
Reflux Separator
|
50#
|
50#
|
50#
|
50#
|
50#
|
|
Ball Mill Mouth
|
|||||
|
Condenser Port
|
34#, spiral condenser
|
||||
|
Constant Pressure
Drop Funnel |
40#,1000ml
|
40#,2000ml
|
40#,2000ml
|
40#,2000ml
|
10L
|
|

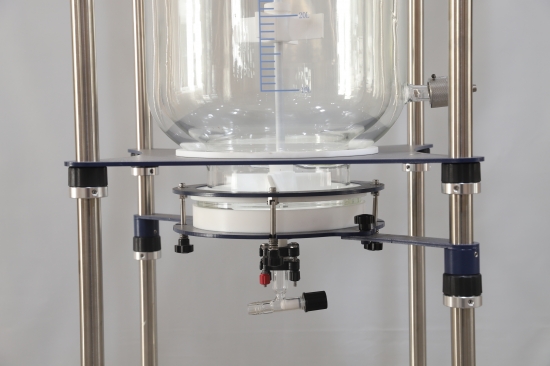

Filter Flate
|
PTFE 1mm
|
||||
|
Filter Parts
|
PTFE Sand core filter plate （25μm)
|
||||
|
T-polyester/T-polyester filter cloth （2μm）
|
|||||
|
Discharge port
|
OD:32mm, ID:22mm
|
||||
|

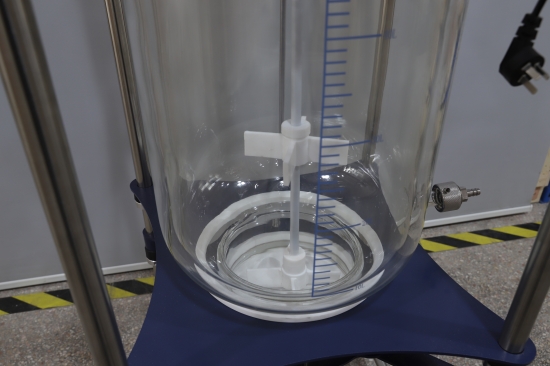

PTFE Stirrer
|
Four-blade Type
|
||||
Product Details
Packing & Shipping
