Model Number:
XB-OLT-60Compliance:
CE CertifiedMinimum Order Quantity:
1Voltage:
108V-240V 50/60HZDimension(L*W*H):
107x60x118cmPackaging Details:
Export wooden packageDelivery Time:

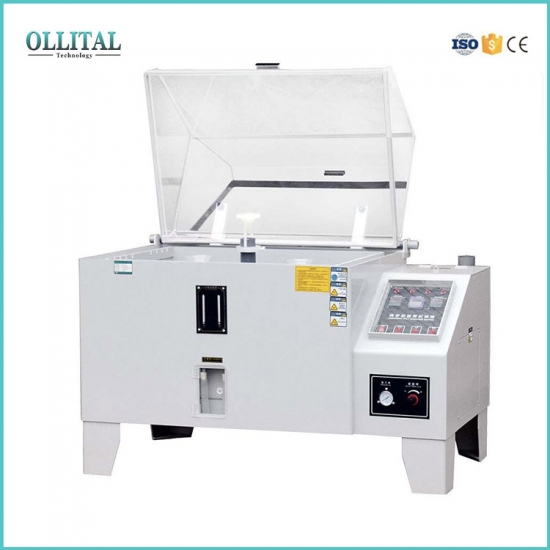

8-10 daysASTM B117 Laboratory Nozzle Salt Spray Corrosion Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
1.The Laboratory Nozzle Salt Spray Corrosion Test Chamber is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
Model
XB-OLT-60
XB-OLT-90
XB-OLT-120
XB-OLT-160
XB-OLT-200
Inner size (cm)
60x45x40
90x60x50
120x100x50
160x100x50
200x100x50
External size(cm)
107x60x118
141x88x128
190x130x140
230x130x140
270x130x140
Inside temp
Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method
(CASS)50°C±1°C
Brine temp
35°C±1°C 50°C±1°C
Test chamber volume
108L
270L
600L
800L
1000L
Brine chamber volume
15L
25L
40L
40L
40L
Compressed air pressure
1.00±0.01kgf/cm2
Spray volume
1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity
85%RH or more
PH
6.5~7.2 3.0~3.2
Spray method
Programmable spray (including the continuous spray interrupted spray)
Power
AC110V-240V1Φ10A
AC110V-240V1Φ15A
AC110V-240V1Φ20A
AC110V-240V1Φ20A
AC110V-240V1Φ30A
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001
GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117 ASTM G85
