Salt Fog Cyclic Corrosion Test Chamber
Home
/Environmental Test Chambers
/Salt Fog Cyclic Corrosion Test Chamber
/
High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
In the field of rubber and plastic processing, the open two-roll mill serves as the foundational equipment for material preparation. What distinguishe
In materials synthesis and sample preparation laboratories, there is a device with an extremely simple structure—no pressure gauge, no stirring motor,
In many product development processes, a key challenge for R&D personnel is how to thoroughly blend raw materials with differing properties to ach
In industries such as painting, printing, electronics, and automotive parts manufacturing, organic solvents are widely used in cleaning, thinning, deg
Model Number:
OLT-60ACompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
108LVoltage:
108V-240V 50/60HZDimension(L*W*H):
(Test chamber size)60*45*40cmPackaging Details:
Export wooden packageDelivery Time:

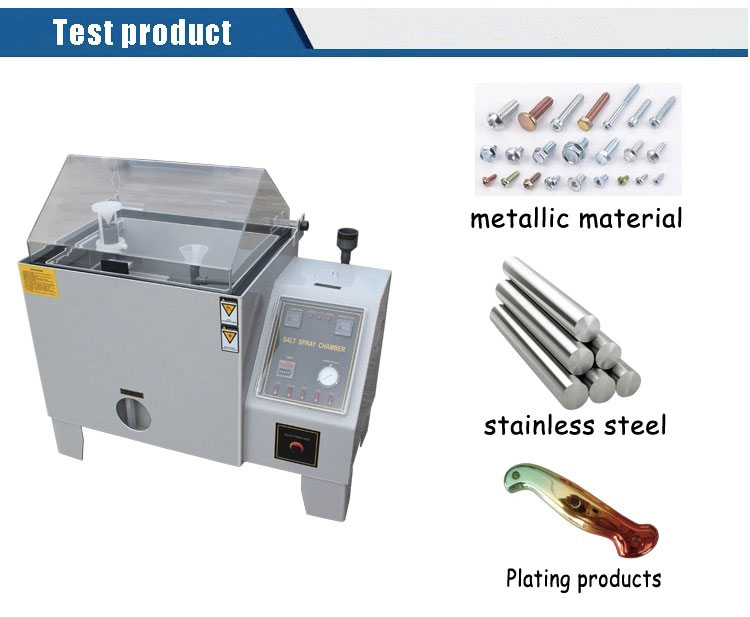

6-8 DaySalt fog spray corrosion test cabinet can be used for all kinds of material surface treatment, including coating, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.
|
Model |
OLT-60A |
OLT-90A |
OLT-120A |
OLT-200A |
|
Standards |
ISO9227, CNS3627,3885,4159,7669,8886, JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO 3768, 3769, 3770, ASTM B-117, B-268, GB-T2423, GJB 150. |
|||
|
Test chamber capacity (L) |
108L |
270L |
600L |
1440L |
|
Temperature |
Test chamber |
NSS.ACSS 35°C±1°C/CASS 50°C±1°C |
||
|
Air cylinder |
NSS.ACSS 47°C±1°C/CASS 63°C±1°C |
|||
|
Test chamber size LxWxD(cm) |
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
|
Max volum of test liquid (L) |
15 |
25 |
40 |
40 |
|
Volume LxWxD(cm) |
107*60*118 |
141*88*128 |
190*130*140 |
270*150*150 |
|
Power |
AC108V-240V,10A |
AC108V-240V,15A |
AC108V-240V,30A |
AC108V-240V,30A |
|
Spray quantity |
1.0~2.0ml/80cm2/h |
|||
|
PH |
6.5~7.2 3.0~3.2 |
|||
Customize parts for Corrosion Test Chamber:
1. Inner chamber size
2. Inner chamber structure
3. PID programmable controller or PLC touch screen controller
2.Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products,strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.

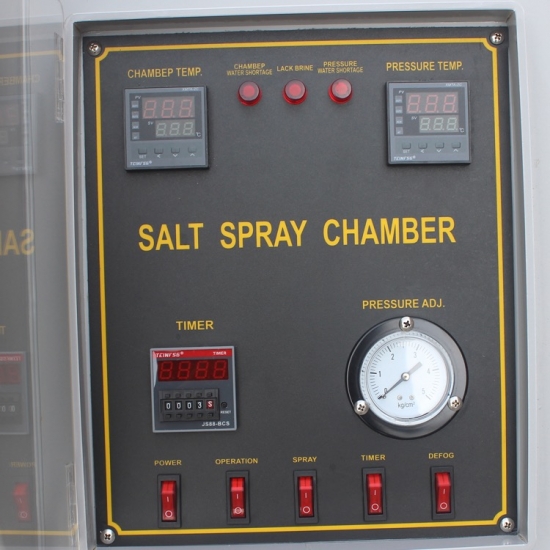

3.Controller are in the same panel, the operation simple and clear.
4.Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory.
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
|
Express |
Door to door, very convenient, don't need to clearance or pick-up |
| By air |
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea |
Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you. |
