Digital Display Automatic Laboratory Autoclave Pressure Steam Sterilizer

  • Lead Time:

    1-3
  • Color:

    Silver
  • Model Number:

    JH-XDG
  • Minimum Order Quantity:

    1
  • Warranty:

    1 YEAR
  • Product Details

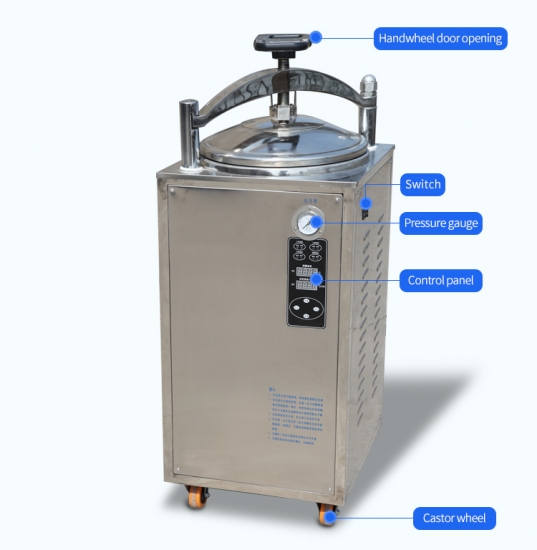

Vertical steam autoclave sterilizer is a rapid, reliable disinfection and sterilization equipment upon using of pressure-saturated steam. It is suitable for medical and health undertakings, scientific research, agriculture and other units.XFH-MA series vertical steam autoclave sterilizer is users favorite model. It gas fully stainless high-alloy steel structure with a long using life. It is digital display, users could use it much convenient.


Product Parameter

Model
technical data

35L

50L

75L

100L

Chamber volume

φ318×450mm

 φ340×550mm

φ400×600mm

φ440×650 mm

 working pressure

0.22MPa

Working temperature

134℃

Max working pressure

0.23 Mpa

Heat average

≤±1℃

Timer scope

0~99 min  or  0~99hour59 min

Temperature scope

105~134℃

Power

2.5KW/AC220V.50Hz

3KW /AC220V.50Hz

4.5KW /AC220V.50Hz

Overall dimension

480×460×850(mm)

520×520×980(mm)

560×560×980(mm)

590×590×1080(mm)

Transport dimension

570×550×970(mm)

590×590×1110(mm)

650×630×1150(mm)

680×650×1220(mm)

G.W/N.W

56Kg/ 42Kg

68Kg/ 50Kg

90Kg/70Kg

105Kg/85K




120 L Dryer is optional

150L  Dryer is optional

φ480×660mm

φ510×7400 mm

0.22MPa

134℃

0.23 Mpa

≤±1℃

0~99 min  or  0~99hour59 min

105~134℃

6KW /AC220V.50Hz

600×640×1140(mm)

670×690×1130(mm)

730×730×1270(mm)

760×760×1270(mm)

125Kg/100Kg

135Kg/110K


 Product introduction
