Fine Jaw Crusher Rock Coal Jaw Crusher

Hammer crusher, also known as hammer mill, is designed to grind various types of material into fine particles.
  • Item NO.:

    PCB-1000X1800
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

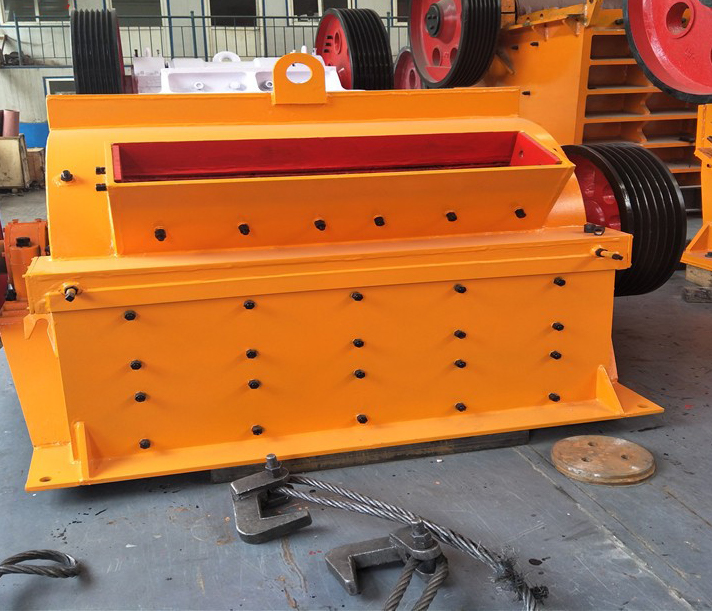

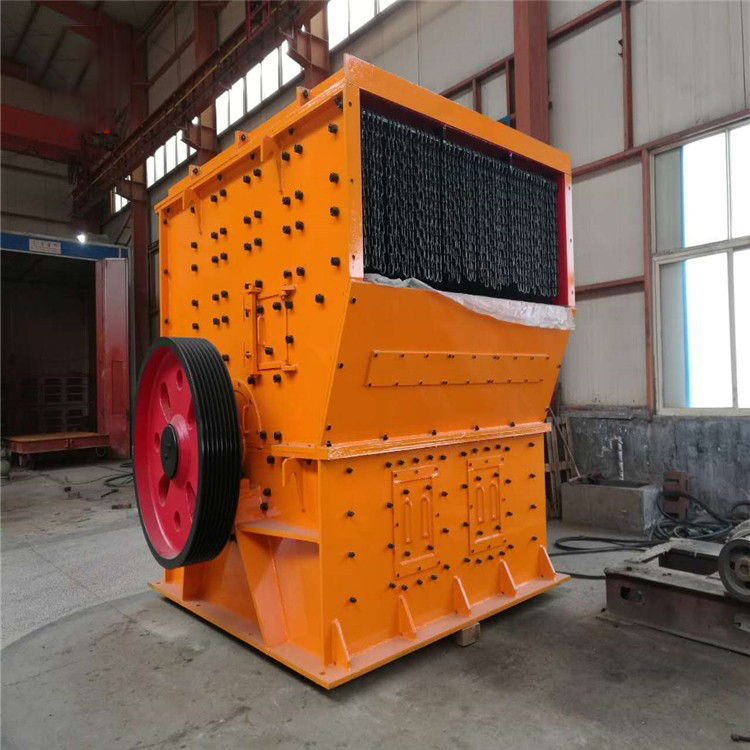

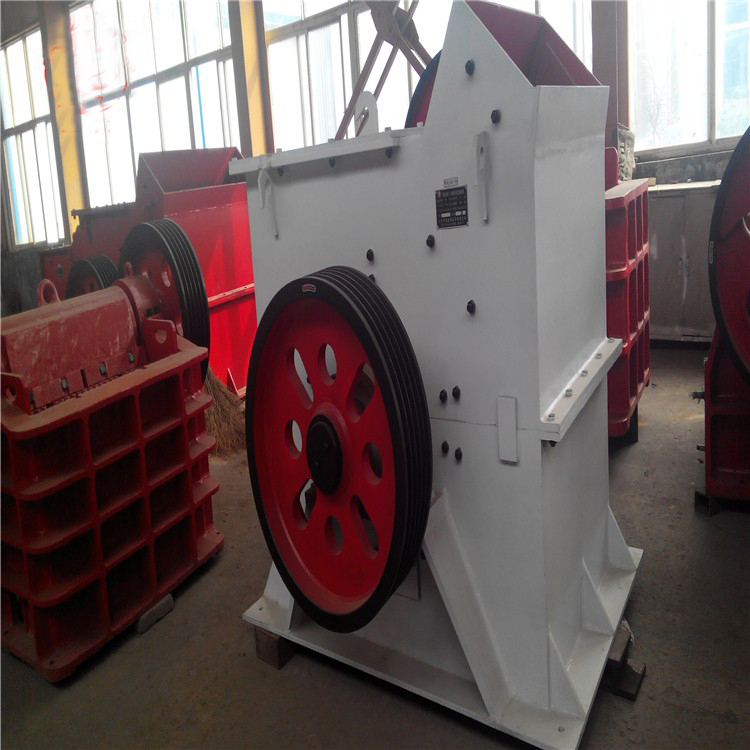

Coal hammer mill crusher pc 400x300

Hammer crusher, also known as hammer mill, is designed to grind various types of material into fine particles. Hammer crusher machine can support the crushing of materials with a maximum compressive resistance of 100Mpa such as coal, salt, chalk, gypsum, blocks, limestone, etc.

Working Principle

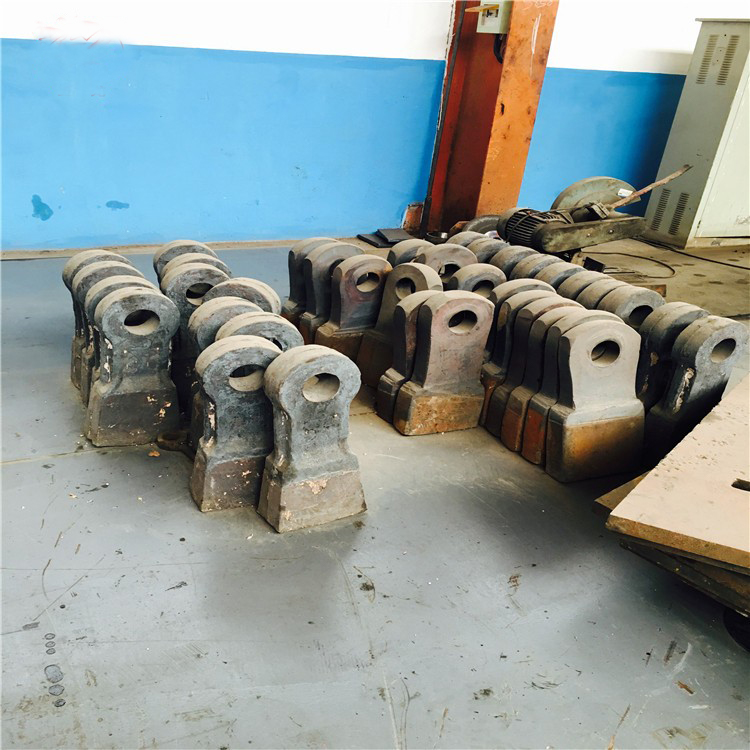

The main part of hammer crusher is rotor. Rotor consists of main shaft, disc, pin roll and hammer. Motor drives rotor to rotate at a high speed. Materials are fed into crusher and crushed by the rotor. There is a screen deck at the bottom of rotor, the products that reach the target may discharged through screen deck, and the coarse particles may stay on the deck for crushing until reach the target.

What kind of raw materials hammer crusher machine can break?

Hammer crusher machine is mainly used as primary crushing and can break limestone,granite,pebble,iron ore,ballast, basalt, quartz stone, gypsum,concrete,etc.



How to find suitable hammer crusher machine?

Ollital will recommend the most suitable machine for you based on below information.
1)What is the raw material type? Such as limestone or granite.
2)what is the capacity per hour do you need? Such as 200 ton per hour.
3) what is the raw material max input size (mm/inch)?
4) what is the output size you need(mm/inch)?

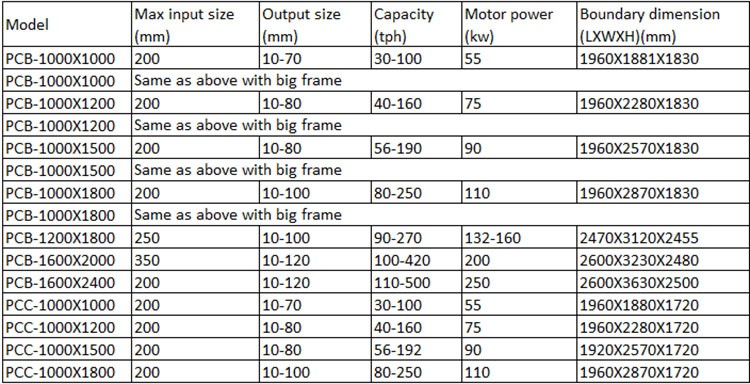

Specification
