Gypsum Brick And Tile Coal Mine Small Sample Crusher

  • Item NO.:

    AC Motor
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

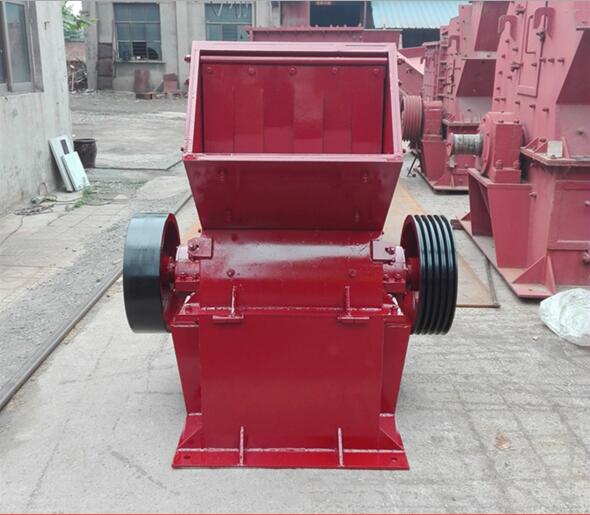

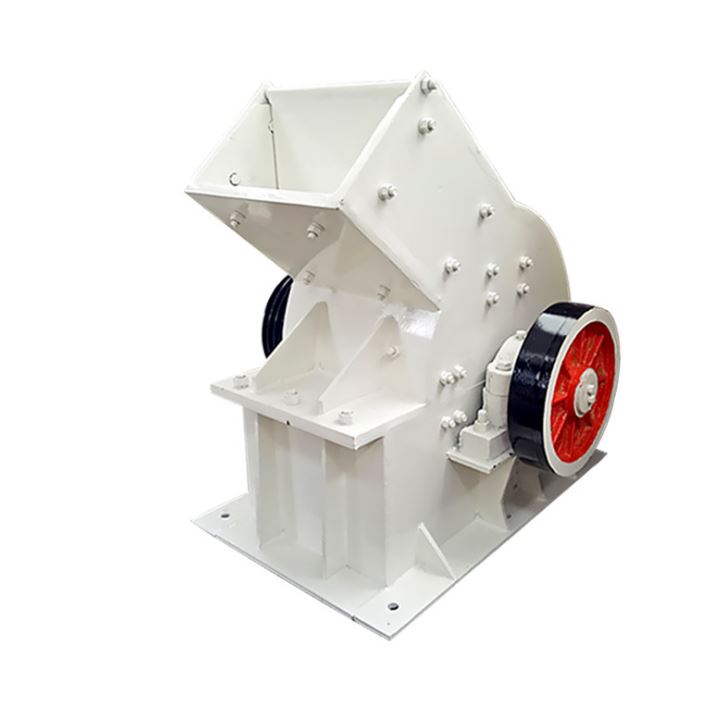

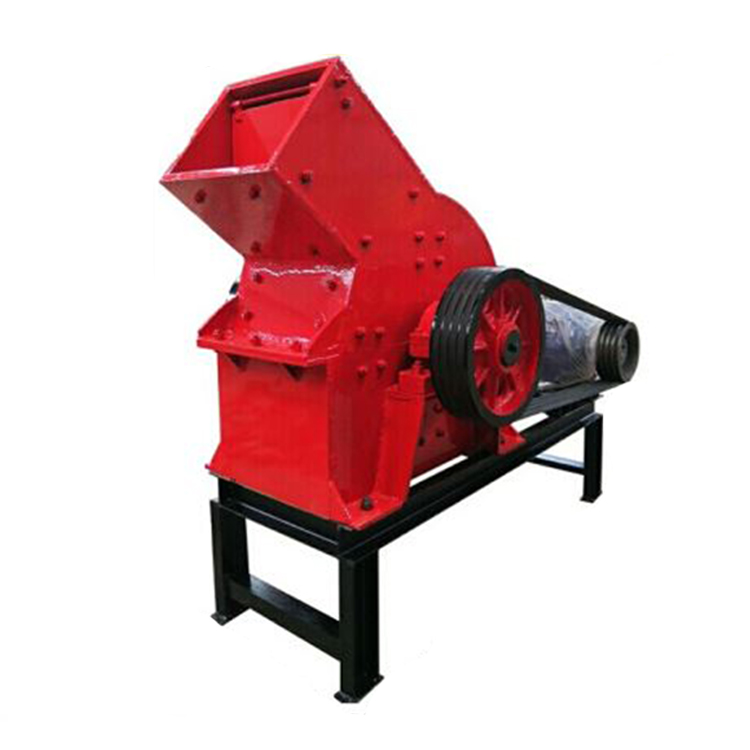

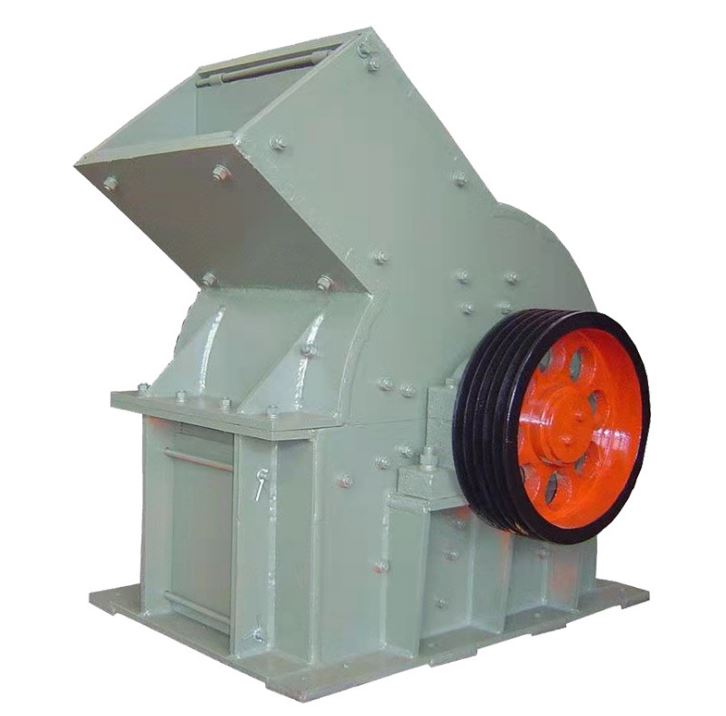

Hammer crusher


Hammer crusher is used to crush all kinds of medium hard and weak abrasive materials. The compressive strength of the material shall not exceed 100MPa and the moisture content shall be less than 15%. The crushed materials are coal, salt, chalk, gypsum, bricks and tiles, limestone, etc. It is also used to break broken wood, paper or waste of broken asbestos cement with strong fiber structure, elasticity and toughness, so as to recover asbestos fiber and so on. In addition, hammer crusher can not only be used in crushing production line and sand production line, but also replace cone crusher in Beneficiation production line. The main working part of hammer crusher is the rotor with hammer (also known as hammer head). The rotor is composed of a main shaft, a disc, a pin shaft and a hammer. The motor drives the rotor to rotate at high speed in the crushing chamber. The materials are fed into the machine from the upper feeding port and crushed by the impact, impact, shear and grinding of the high-speed hammer. The lower part of the rotor is provided with a screen plate. The particle size smaller than the size of the screen hole in the crushed material is discharged through the screen plate, and the coarse particle size larger than the size of the screen hole is prevented from remaining on the screen plate to continue to be hit and ground by the hammer, and finally discharged out of the machine through the screen plate.

Model
Feed size(mm)
Discharging granularity(mm)
Production capacity(t/h)
Power(kw)
Weight(kg)
Dimensions(mm)
300x200
120
8
1-3
5.5
0.6
630x380x630
400x300
200
10
5-10
11
0.8
900x670x860
500x350
200
10
10-15
18.5
1.52
980x685x935
600x400
250
15
15-25
22
2.26
1200x1050x1200
800x600
250
15
25-40
55
4.8
1310x1180x1310
1000x800
250
15
40-55
75
5.9
1600x1390x1575
