Sample Concrete Machinery Crusher Price With Easy To Operate

HPG multi-cylinder hydraulic cone crusher Application areas: sand and gravel crushing, mine crushing, building stone crushing, chemical production, roadbed construction, infrastructure, energy, etc.
  • Item NO.:

    HPG500-M
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details
HPG multi-cylinder hydraulic cone crusher
Application areas: sand and gravel crushing, mine crushing, building stone crushing, chemical production, roadbed construction, infrastructure, energy, etc.

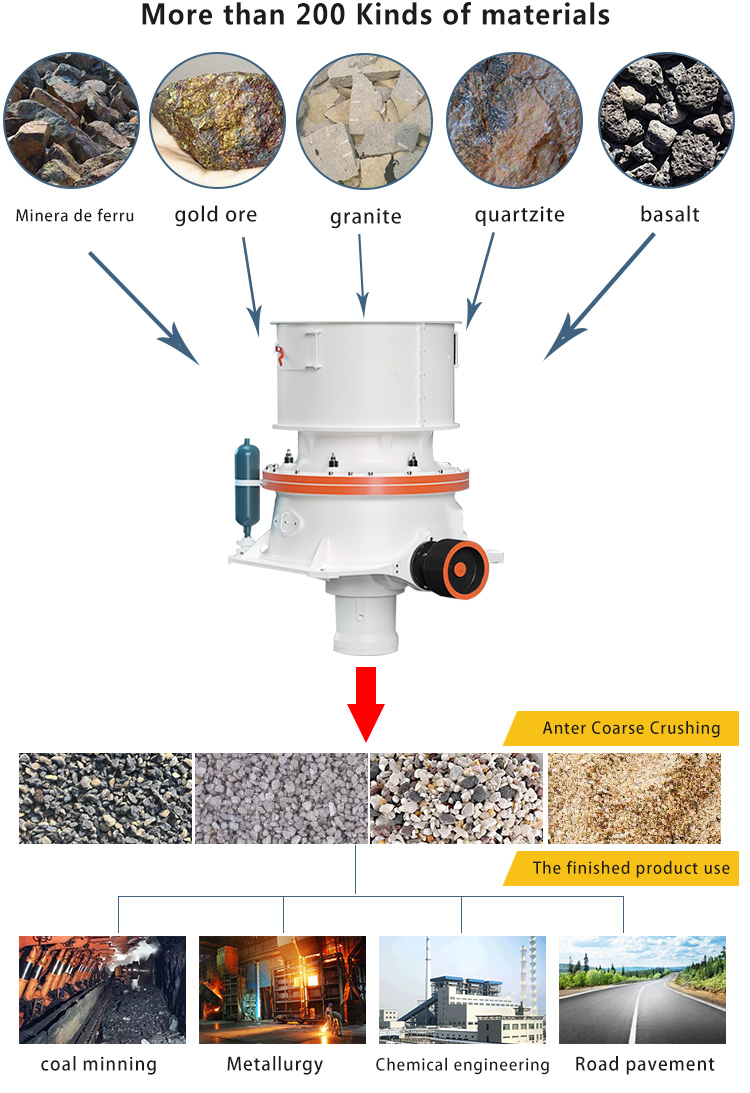

Applicable materials: Quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, and other hard and medium-hard rocks.
Feeding size: ≤450mm

Processing capacity: 45-1200t/h


Model
Cavity type
Open side feeding size(mm)
Closed side feeding size(mm)
Min outlet size(mm)
Capacity (t/h)
Installed Power(kw)
HPG400
C1 Extra Coarse
360
290
30
135-625
315
C2 Coarse
310
250
25
315
M Middle
260
196
20
F1 Fine
182
110
13
F2 Extra Fine
135
90
10

HPG500
C1 Extra Coarse
               370
                 330
                  38
           200-790
              400
C2 Coarse
320
290
                  28
400
M Middle
245
210
22
F1 Fine
180
130
13
F2 Extra Fine
150
95
10

HPG800
C1 Extra Coarse
                       450
                    352
             38
265-1200
                     630
C2 Coarse
373
298
32
630
M Middle
340
275
25
F1 Fine
280
230
16
F2 Extra Fine
235
150
10
1.High-performance, Good stability, High reliability
2.Good products size composition
3.Convenient Cleaning-up
4.Easy maintenance and operation
5.Widespread use, Low production costs
6.Separate Lubrication
Crusher is being manufactured from us that comes strong in structure and high in functionality, and get vast utility in different
industrial sectors.
On the basis of its horizontal design, crusher turns the task of loading and unloading into a simple job.

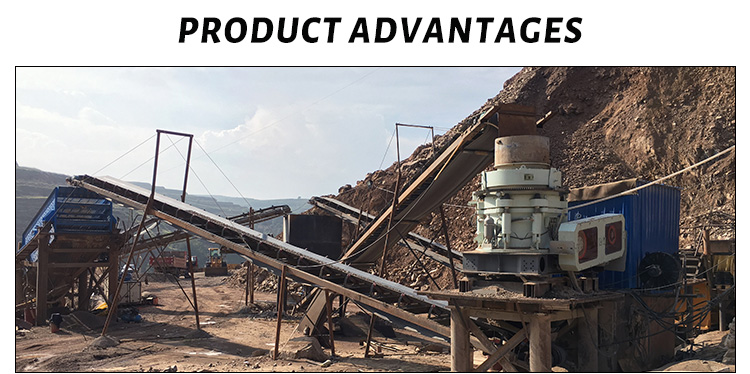

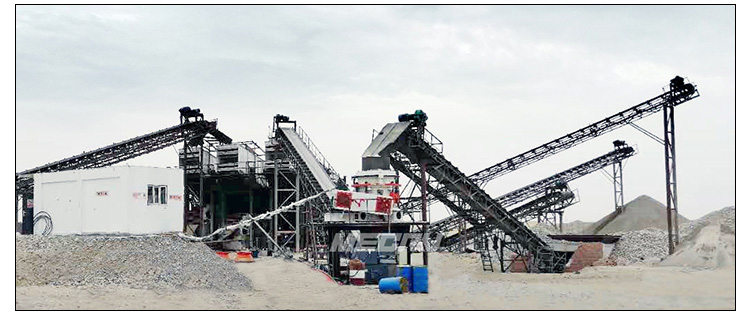

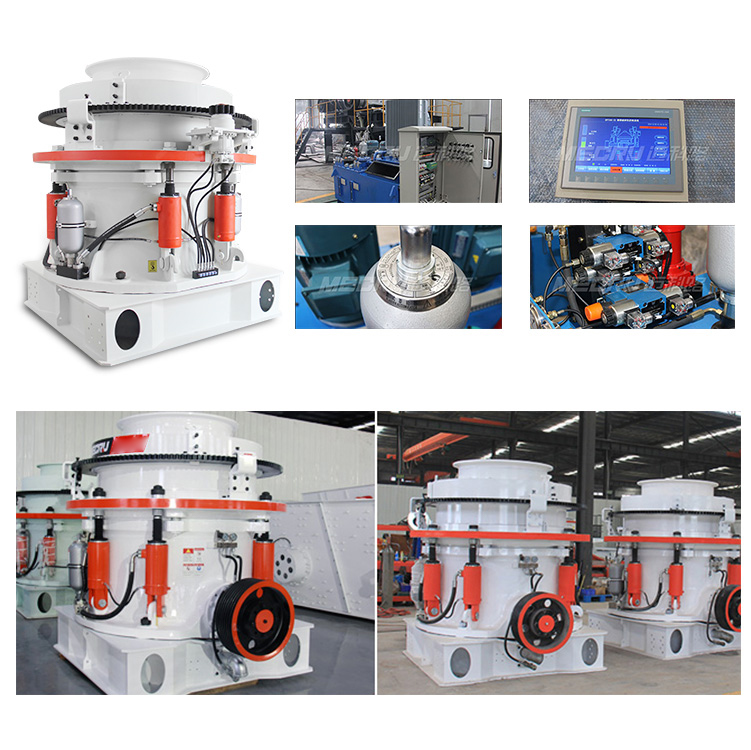

Product Display

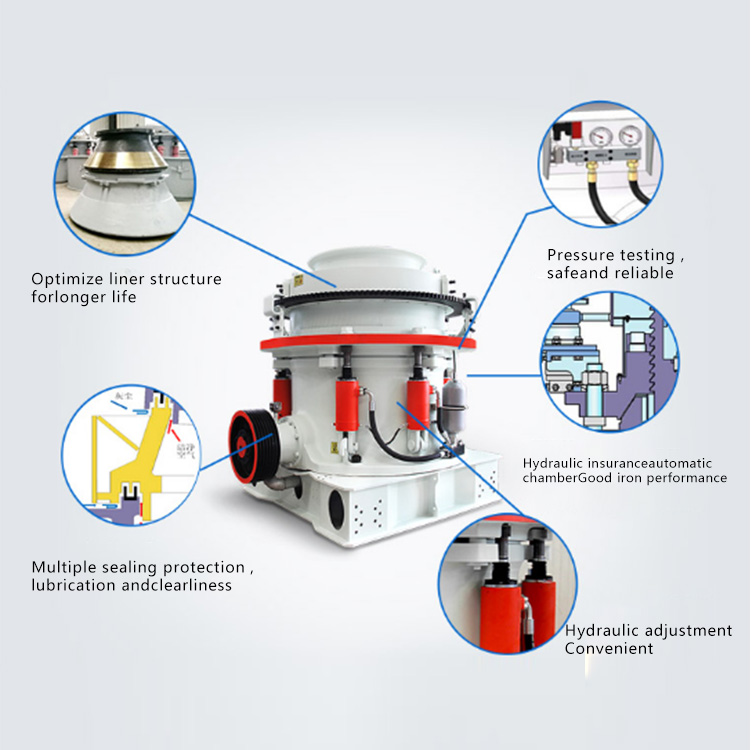

Product advantages:
1. Hydraulic devices are used for insurance, adjustment and locking of the crusher. It is convenient to adjust the discharge port and has a small overload coefficient when passing non-crushed objects.
2. Mecru continuously optimizes the equipment and cavity type, which not only improves the efficiency of lamination crushing,but also has high crushing efficiency, but also has low wear of vulnerable parts and reduces production costs.
3. The finished product has a cubic shape and high fine-grain content, which not only improves the quality of the finished product, but also reduces the production cost of the equipment and the entire system.
4. One machine can change different crushing cavity types. The machine is equipped with multiple medium crushing and fine crushing cavities. Only a small number of parts such as the corresponding cavity type liner can be replaced to convert the machine cavity type.

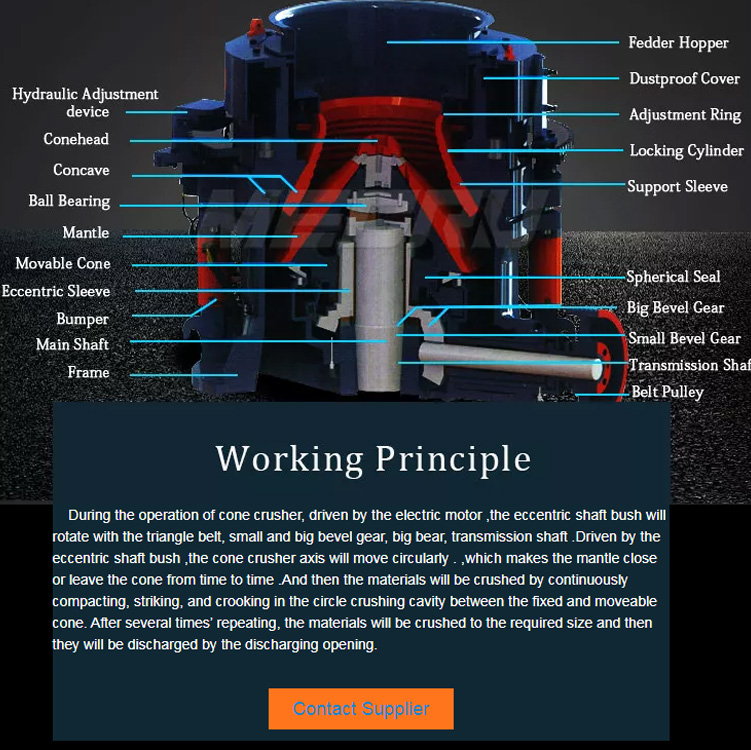

Working Principle
The cone breaker moves the cone under the action of the eccentric sleeve to make a swing motion, which drives the broken wall to squeeze and grind the material between the wall and the rolling mortar wall. According to the lamination theory, the material is subjected to forces in multiple directions, according to its own texture. It is crushed and polished to form stable stone particles, which fall from the swing gap of the crushing wall that meets the discharge requirements, and the rest of the materials continue to be broken until the discharge demand is reached.
