Product Orgin:
ChinaShipping Port:
XiamenPayment:
T/TModel Number:
OLT-1/2/3/7/10BGMinimum Order Quantity:
1Operation method:
Voltage:
220/240/380 Volt 50/60 HzPower:
0.75KW-75KWWarranty:
1 YearWeight:
50- 15000 Kgs

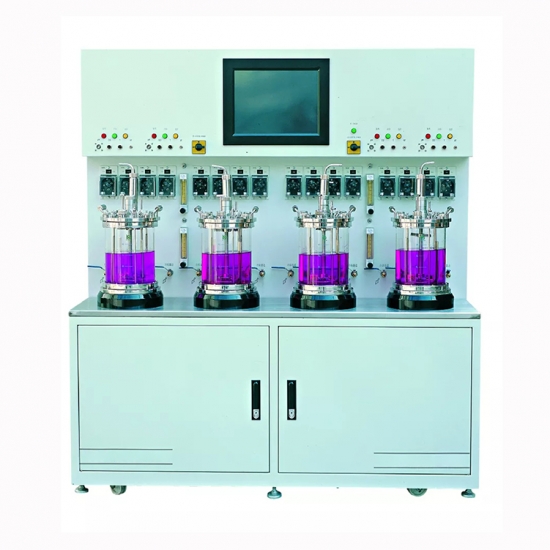

Professional Manufacturers Mbr Membrane Bioreactor
Product Description
Technical Data
TYPE
OLT-1/2/3/7/10BG
Total Volume
1/2/3/7/10
Vessel
316L Stainless Steel +Borosilicate Glass
Stirrer
Magnetically Driven(Cell lift impeller Marine Blade impeller pitched blade impeller for option)
Sterilization
In Autoclave
Basic Features
Temperature,RPM,PH,DO,Antifoam,Feed,Aeration,Pressure,4-Gas system
Advanced Features
Level,Weight Feed,Multi-Feeds,Mehanol&Ethanol,Exhaust O2&CO2
|
Controller
|
OLT-7000 Technical parameter
|
|
|
|
Parameter
|
Guideline
|
Controller data processing function
|
|
|
pH
|
Displaying range: 0.00~14.00±0.01
Auto-control range:2.00~12.00±0.05 Fermentation process control (According to the fermentation time, auto- control pH fluent, at least10 parts) |
pH value historical and trend curve analysis Acid, alkali dosage curve analysis
Batch report form analysis Acid, alkali total dosage record Keep |
|
|
Antifoam
|
Automatic PID control and alarm
Fermentation process control (According to the fermentation time, auto- control antifoam fluent, at least10 parts) |
Antifoam value historical and trend curve analysis Foam error state record
antifoam total dosage record Batch report form analysis Keep |
|
|
Rpm
|
Automatic enactment and control(50~1000rpm±5‰)
Fermentation process control (According to the fermentation time, auto-control rev fluent, at least10 parts) |
Rpm value historical and trend curve analysis Batch report form analysis Keep and deliver data
|
|
|
Temperature
|
Temperature of cooling water: +5℃-65℃±0.2℃
Fermentation process control (According to the fermentation time, auto- control temperature fluent, at least10 parts) |
Temperature value historical and trend curve analysis Batch report form analysis Keep
|
|
|
Feeding
|
PID automatic enactment and control
Fermentation process control (According to the fermentation time, auto- control feeding fluent, at least10 parts) |
Feeding value historical and trend curve analysis
Feeding total dosage record Batch report form analysis keep |
|
|
Pressure
|
Manual control, instrument display
|
|
|
|
Air flux
|
Manual control, instrument display
|
||
|
Performance parameter
|
||
|
Equipment
|
Item
|
Reqirements and manufacturers
|
|
.
OLT-5L reactor tank |
reactor body
|
glass and strainless steel cylinder, 5L litres total volume, 2.5~4 litres working volume, sterilizable in situ, magnetic force stirrer
|
|
Aeration system
|
include pressure control valve, rotameter, aeration filter(0.2μm)
|
|
|
Agitation system
|
bottom magnetic force stirrer, AC motor, ca.50~1200rpm,±1%
|
|
|
Temperature control
|
double walled dished base for temperature control, cooling water temp.+5~65℃,±0.5℃
|
|
|
Anti foam control
|
antifoam probe check and add antifoam agent by one peristaltic pump
|
|
|
Feeding control
|
feeding by one peristaltic pump,≥3.7ml/min
|
|
|
pH control
|
PID control of two pumps to add acid or alkali, pH display range:0~14,±0.01, pH electrode: Swiss Mettler-Toledo
|
|
|
DO control
|
DO display range:0~150%,±1, DO electrode: Swiss Mettler-Toledo
|
|
|
Control system
|
The essential part of OLT-7000 consists of10.5"touch prainter and PLC. The standard display is used as showing interface and the keyboard and mouse can be used to operate. One controller can control 2~12 fermenters at the same time and
the fermenters can work at the same time. Software: Siemens S7+ FORCE CONTORL Data collection and control module: S200 PLC controller and data collection and control module Driving relay: OMRON, Japan Electrical driver: Panasonic, Japan |
|
