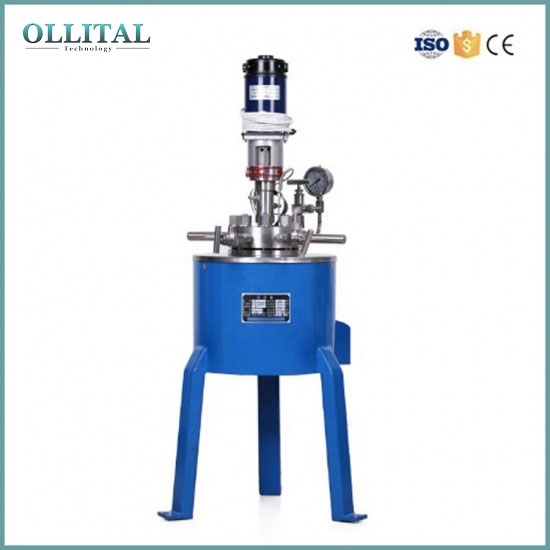

Small Lab Steel Stainless High Pressure Reactor with Stirring

  • Model Number:

  • Minimum Order Quantity:

  • Compliance:

    CE Certified
  • Voltage:

  • Power(W):

  • Capacity:

  • Use pressure:

  • Service temperature:

  • Weight:

  • Dimension(L*W*H):

  • Lead Time:

  • Product Details

OLT-HP-1 high pressure stainless steel stirring reactor is a gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical raw material of a chemical reaction stirring device. It can make a variety of chemical substances in high pressure, vacuum, temperature conditions are fully stirred to enhance the mass transfer and heat transfer process.

Model NO. OLT-HP-1 Tower Reactor Type None
Heating Electric Heating Heat Transfer Structure Jacketed
Automatic Grade Semi-Automatic Accuracy of temperature ±1ºC
Power(W) 2500W Stirring Torque (N.cm)
Setting Pressure(MPa)


Capacity(L) 1L
Setting Temp.(ºC)
350℃ Voltage AC108V~240V
Specification 600*466*518mm
Transport Package Packed in Wooden Case Material

304/316 Stainless steel,

Titanium, also can plus PTFE liner

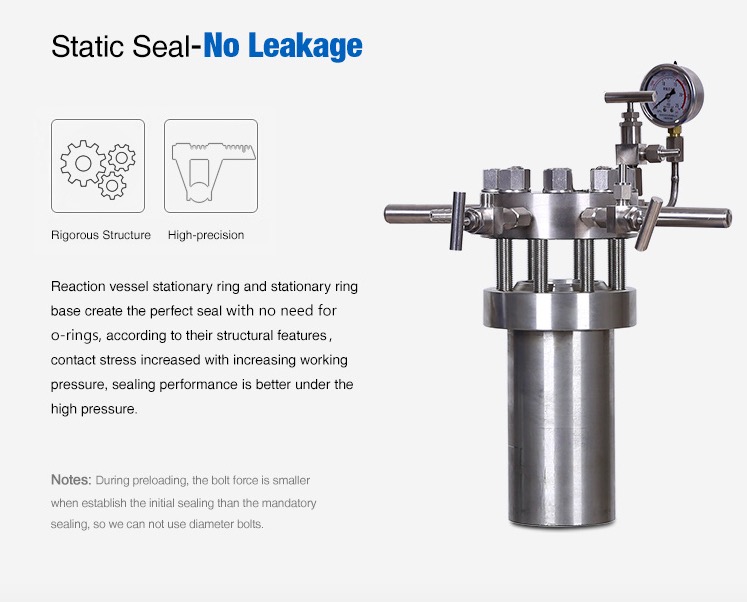

  • Static sealing structure.
  • The mixer bath electrical machinery transmission uses the magnetic force couple connection.
  • Non-contact transmission torqu, solving the stirred leak problem.
  • Medium and the stirring member is in sealing state to work.

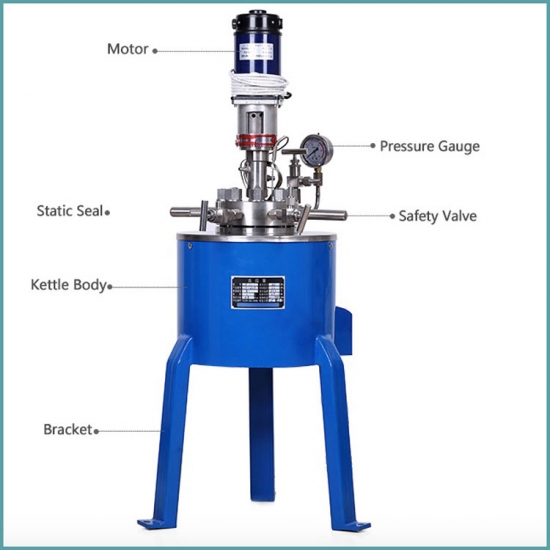

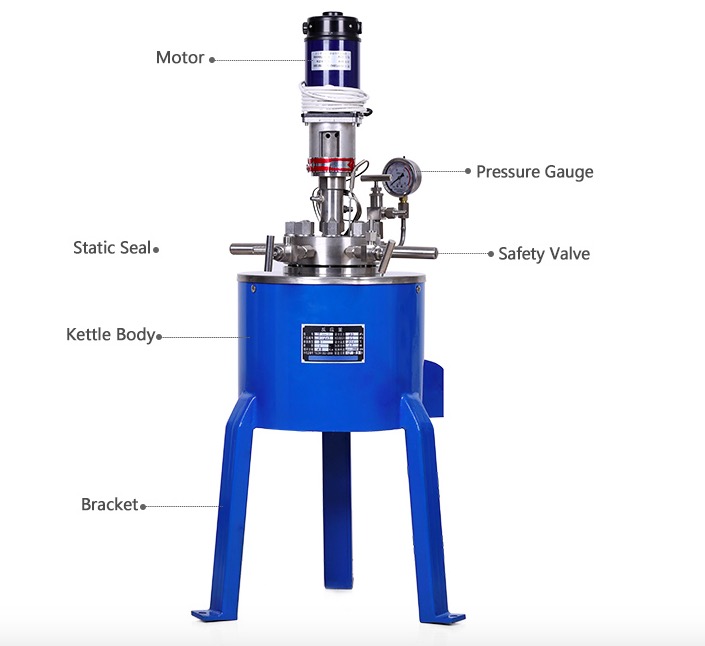

The high pressure autoclave adopts static sealing structure, and the magnetic stirrer is used to connect the stirrer and the motor drive. Because of its non-contact transmission torque, the static seal replaces the dynamic seal, which completely solves the problems of mixing and leakage, and makes the whole medium and stirring components. It is completely in the state of absolute sealing, therefore, it is more suitable for a variety of flammable, explosive, highly toxic, valuable medium and other chemical medium with strong penetrating power for stirring reaction, which is petroleum, chemical, organic synthesis, high It is a non-leakage reaction device with the most ideal reaction such as sulfurization, fluorination, and oxidation in the polymerization of molecular materials and foods.


-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note


Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
