Model Number:
OLT-HP-O5Minimum Order Quantity:
1Compliance:
CE CertifiedVoltage:
AC 108~240VAutomatic Grade:
Semi-AutomaticUse pressure:
22 MpaService temperature:
350 ℃Weight:
85 KgDimension(L*W*H):
950*850*1005 mmLead Time:

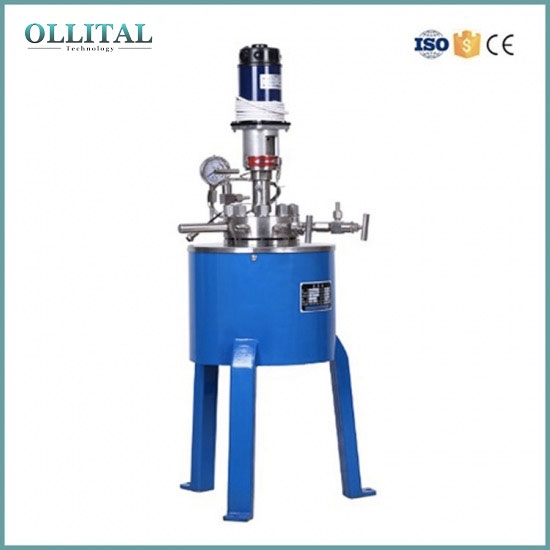

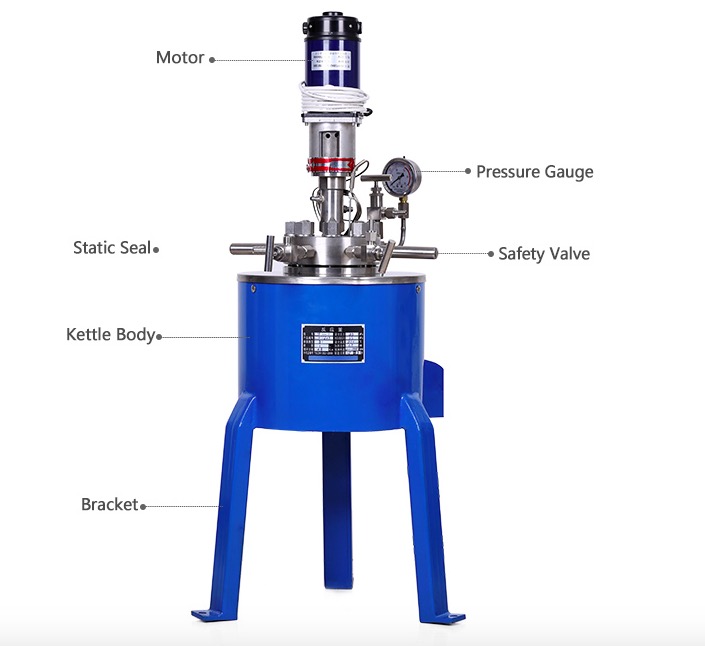

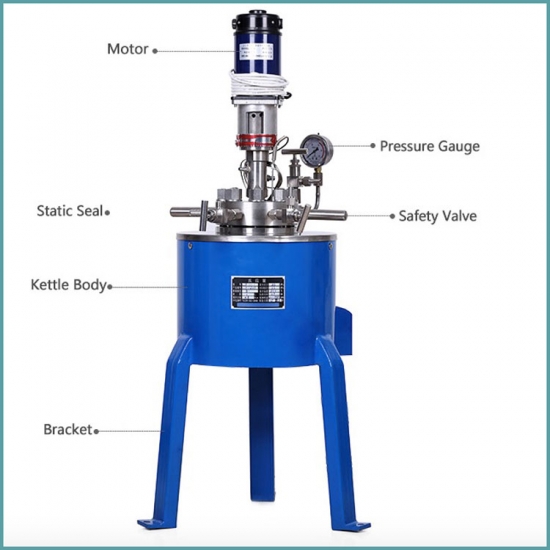

6-8DayHigh-pressure reactor autoclave is suitable for flammable, explosive, highly toxic, precious media and chemical media of strong penetration to stir. It is the best no-leak response for petroleum, chemical, organic synthesis, polymer, food and another process to vulcanize, fluorite, oxidize.
Model
OLT-HP-O5
OLT-HP-O1
OLT-HP-25
OLT-HP-5
OLT-HP-1
OLT-HP-2
Capacity (L)
0.05
0.1
0.25
0.5
1
2
Setting Pressure (Mpa)
22
Setting Temperature (℃)
350
The accuracy of Temperature Control
±1
Heating Method
General electric heating,
the others are far-infrared,
thermal oil, steam,
circulating water, etc
Stirring Torque (N.cm)
120
Heating Power (kW)
0.6
0.8
1.5
2

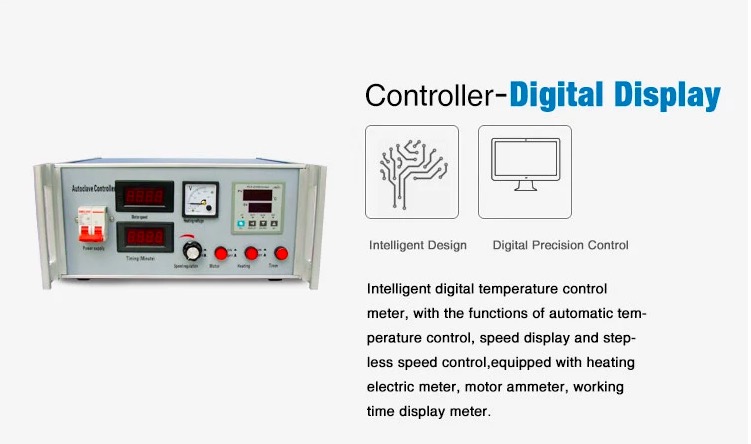

Temperature controller
Real~time display and adjust the speed,
temperature, time,
heating voltage,
with standard PID automatic temperature
adjustment meter.
Lifting mode
manual lift or electric lift
Material
304/316 Stainless steel, Titanium,

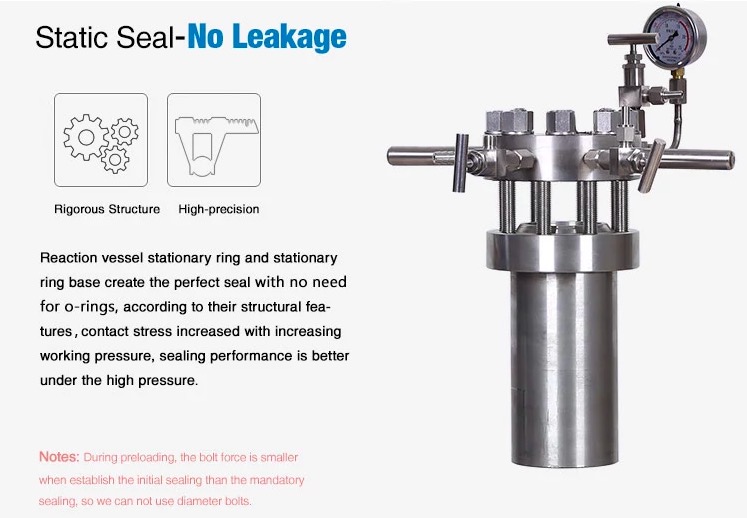

1. Static sealing structure
2. The mixer bath electrical machinery transmission uses the magnetic force couple connection
3. The no-touch passing moment, solving the stirred leak problem
4. Medium and the stirring member is in sealing state to work
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
