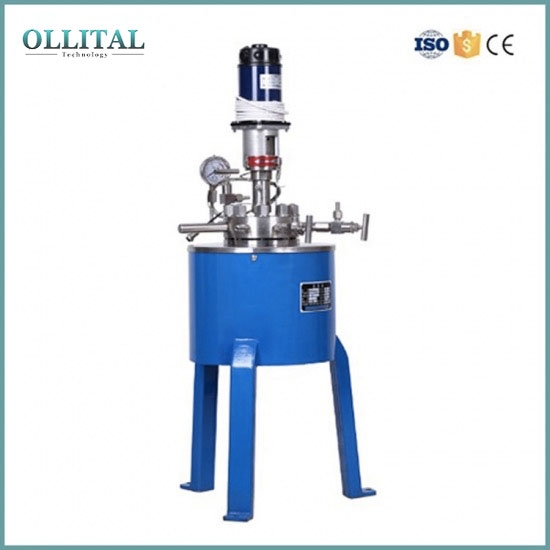

High Pressure Stainless Steel Chemical Stirring Reactor

  • Model Number:

    OLT-HP-10
  • Minimum Order Quantity:

    1
  • Voltage:

    AC108V~240V
  • Capacity:

    10L
  • Use pressure:

    22Mpa
  • Service temperature:

    350℃
  • Lead Time:

    6-8day
  • Warranty:

    One Year
  • Packaging Details:

    Standard export wooden box
  • Product Details

Stainless steel high pressure reactor is an stirring reactor for chemical material reactor with different phase, such as, gas-liquid, liquid-liquid, liquid-solid, or gas-liquid-solid, etc. It can stir all kinds of chemical material in high temperature, high pressure, vacuum condition to enhance the mass transfer and heat transfer process.

Model

OLT-HP-O5

OLT-HP-O1

COLT-HP-25

OLT-HP-5

OLT-HP-1

OLT-HP-2

OLT-HP-2

OLT-HP-5

OLT-HP-10

OLT-HP-20

OLT-HP-30

Capacity (L)

0.05

0.1

0.25

0.5

1

2

3

5

10

20

30

Setting pressure (Mpa)

22

Setting temperature ()

350

Accuracy of temperature

control ()

±1

Heating method

General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc

Stirring torque (N. cm)

120

Heating power (kW)

0.6

0.8

1.5

2

2.5

4

7

10

10

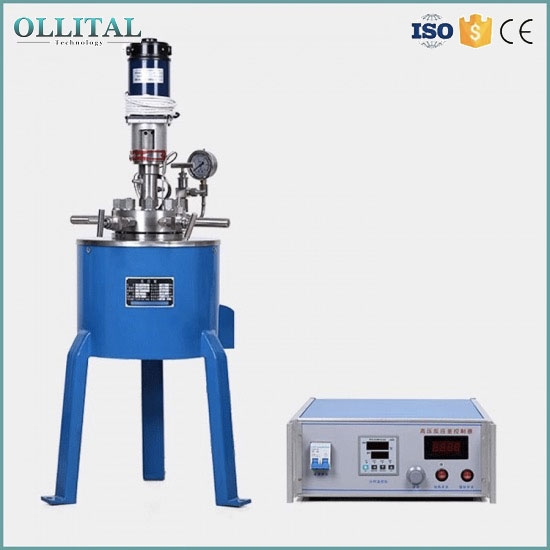

Temperature controller

Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter.

Temperature controller

working environment

Ambient temperature 0-50℃, relative humidity 30-80%

Lifting mode

manual lift or electric lift

Material

304/316 Stainless steel, Titanium, also can plus PTFE liner


1)Static sealing structure

The Static sealing structure instead the motive seal. The stirrer and motor are Magnetic coupling connection.

2)Perfect, full sealing and no mass leakage

It adopts unique the torque transmission without contact

3)Application of high requirement degree

Suitable for the stirring reaction of flammable and combustible, toxic, Valuable medium or other Strong penetration of chemical medium.

It is the most ideal, non leak reacting equipment for Vulcanization, fluoride, hydrogenation, halide, polymerization reaction, etc in Petroleum, chemical industry, Organic synthesis, polymer polymerization, food industry, etc.


Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda  Controller-Digital Display
 Intelligent digital temperature control meter, with the            functions of automatic temperature control, speed              display and stepless speed control, equipped with              heating electric meter, motor ammeter, working time            display meter.
 Static Seal-No Leakage
 Reaction vessel stationary ring and stationary ring              base create the perfect seal with no need for o-rings,          according to their structural features, contact stress            increased with increasing working pressure, sealing            performance is better under the high pressure.
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda  Pressure Gauges-Seisnic Stability
 Seismic pressure gauges for the environment places          severe vibration, the pulse of media tolerance, and the      impact of a sudden unloading, gauges clear                        instructions and stability, with good vibration                        resistance.
 Safety Valve-Safe and Sellable
 The reaction kettle equipped with safety valve, that            adopted blasting diaphragm, blasting numerical error is      small, instantly exhaust gas fast, safe and reliable.              Each valve adopts needle valve, reciprocating closed          form, seal is reliable and durable. All safety valves with        resonable installation and releasing unblocked.
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda
Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda Small High Pressure Reactor Manufacturer Price from Zhengzhou Keda

Packaging:

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note

Express

Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
