Item NO.:
OLT-GLT-0.1/40Lead Time:
7-15 dayProduct Orgin:
ChinaShipping Port:
XiamenModel Number:
OLT-GLT-0.1/40Voltage:
220V 50Hz or CustomizePower:
2.2(KW)Dimension(L*W*H):
850*600*1020 mmWeight:
260KGHigh-pressure nano homogenizer is an advanced equipment mainly used to homogenize and disperse solid particles (such as nanomaterials, creams, drugs, etc.) in liquids to make their particle size reach nanometer level. The equipment is widely used in food, cosmetics, pharmaceuticals, biotechnology and other industries.
1. Working principle

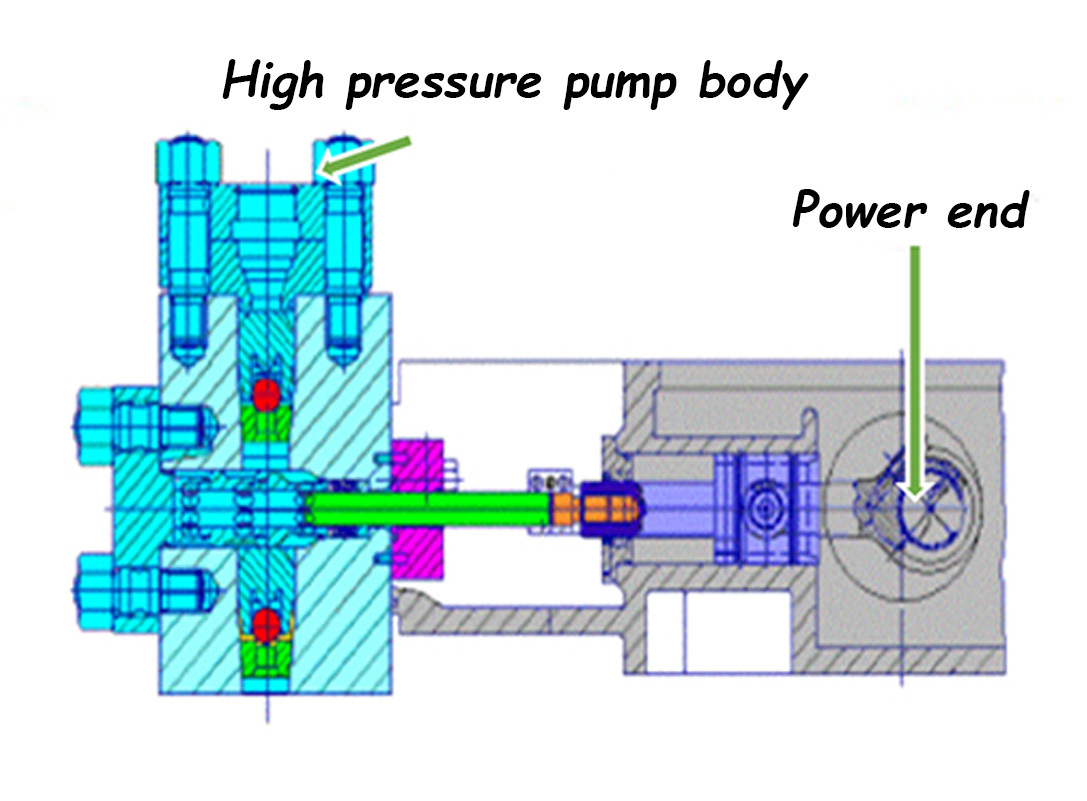

The high-pressure nano homogenizer uses a high-pressure pump to pass the liquid through a narrow nozzle or homogenizing valve under high pressure, generating strong shear and impact forces. This force causes the solid particles in the liquid to break and disperse, forming a uniform nanoparticle suspension.
2. Design features
High-pressure system: capable of generating pressures up to 1000 bar (or higher) to meet the homogenization needs of different materials.
Multi-stage homogenization: can be configured with multi-stage homogenizing valves to gradually process the liquid to achieve better dispersion effect.
Compact design: The equipment has a compact structure and small footprint, suitable for use in laboratories and small production lines.
Fully automatic control: equipped with an advanced automatic control system, real-time monitoring of pressure, flow and temperature to ensure the stability of the homogenization process.
3. Application fields
Pharmaceutical industry: used for homogenization of drug preparations to improve the solubility and bioavailability of drugs.
Food industry: used for homogenization of dairy products, beverages and condiments to improve the taste and stability of products.
Cosmetics industry: homogenize skin care products, lotions and other cosmetics to improve their texture and effect.
Nanomaterials: used for the preparation of nanoparticles and nanocoatings, widely used in materials science and engineering.
4. Equipment advantages
Efficient homogenization: can quickly homogenize particles to the nanometer level to ensure the uniformity and stability of the product.
Wide range of applications: suitable for the processing of a variety of liquids and solid particles, with strong flexibility.
Save time and cost: efficient processing capacity reduces processing time and improves production efficiency.
Improve product quality: through homogenization, the taste, appearance and performance of the product are improved, increasing market competitiveness.
|
Model
|
Flow
T/H
|
Greatest pressure
M pa
|
Rated pressure
M pa
|
Motor Power
Kw
|
Overall dimensions
(L*W*H，mm)
|
|
OLT-GJJ-0.1/25
|
0.1
|
25
|
20
|
2.2
|
755X520X935
|
|
OLT-GJJ-0.1/32
|
0.1
|
32
|
25
|
2.2
|
755X520X935
|
|
OLT-GLT-0.1/40
|
0.1
|
40
|
32
|
3
|
755X520X935
|
|
OLT-GJJ-0.1/60
|
0.1
|
60
|
48
|
4
|
1020X676X1065
|
|
OLT-GJJ-0.1/70
|
0.1
|
70
|
56
|
5.5
|
1020X676X1065
|
|
OLT-GJJ-0.1/100
|
0.1
|
100
|
80
|
7.5
|
1100X676X1065
|
|
OLT-GJJ-0.2/25
|
0.2
|
25
|
20
|
2.2
|
755X520X935
|
|
OLT-GJJ-0.2/32
|
0.2
|
32
|
25
|
3
|
1020X676X1065
|
|
OLT-GJJ-0.2/40
|
0.2
|
40
|
32
|
4
|
1020X676X1065
|
|
OLT-GJJ-0.2/60
|
0.2
|
60
|
48
|
5.5
|
1020X676X1065
|
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
The Ollital Laboratory High-Pressure Homogenizer is a precision-engineered instrument designed for particle size reduction, emulsification, dispersion, and cell lysis at the nano scale.
The Ollital Nanometer-Scale High-Pressure Homogenizer is a precision-engineered instrument for particle size reduction, emulsification, dispersion, and cell lysis.
High pressure homogenizer is a device used to homogenize liquids.
Adhesives High Pressure Homogenizer Food Emulsifier
High pressure homogenizer can disperse particles into micron or even nanometer scale.
High-pressure homogenizer is a device that homogenizes, emulsifies and disperses liquids.
