Model Number:
OLT-PXC4-250FJCompliance:
CE CertifiedMinimum Order Quantity:
1Operation method:
PLC + touch screen or computer controlMixing method:
Touch ScreenCapacity:
CustomizeWarranty:

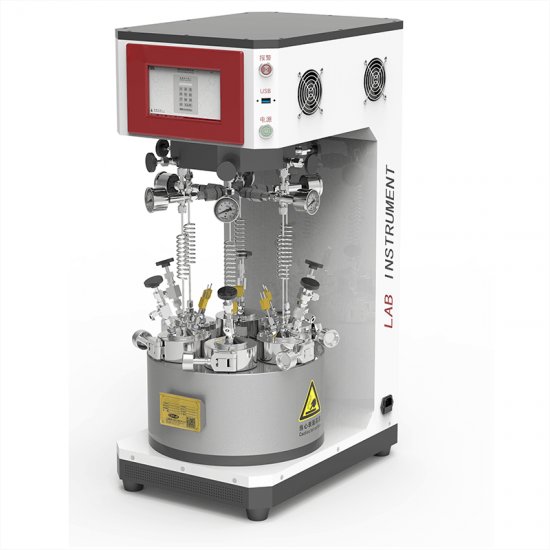

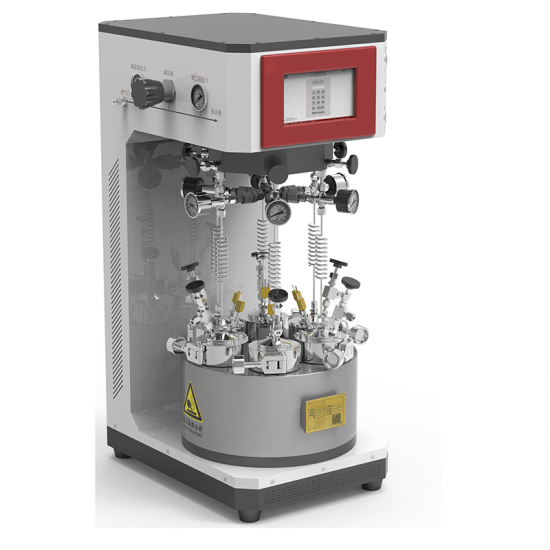

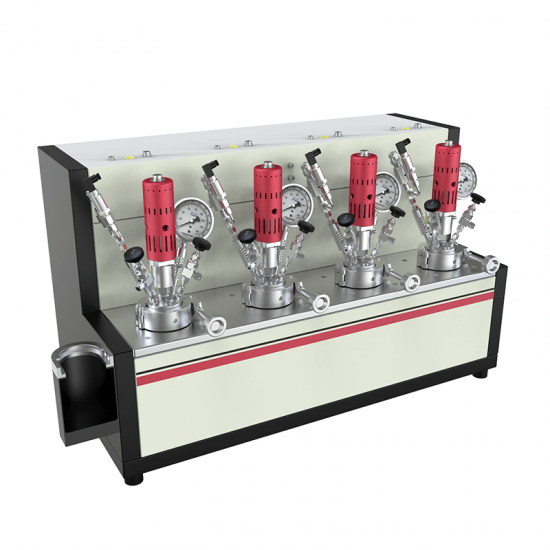

1 yearSplit parallel high pressure reactor: based on the concept of maximizing the efficiency of laboratory work, it is a kind of high pressure and high temperature resistant multiple reaction device, fast and efficient reaction screening, supporting up to 6 groups of reactions running at the same time, working pressure up to 100 bar. Dedicated to the optimization of high-pressure reaction conditions and the efficient development and application of homogeneous and heterogeneous catalytic systems, all the reaction parameters in each interval can be independently monitored and controlled. Optional precision special software can quickly and efficiently carry out high pressure reaction conditions screening, catalyst screening and reaction research, greatly improving the process research and development efficiency.
Specification
| Model | OLT-PXA4-250FJ | OLT-PXB6-100YC | OLT-PXC4-250FJ |
| Pisition | 4 or customize | Max 6, customize |
4 or customize |
| Capacity | 50/100/250/500ml or customize | 50/150/200ml |
50/100/250/500ml or customize |
| Material |
Standard configuration 316L, customized Hastelloy, Monel alloy, titanium, etc |
||
| Temperature | Max temperature 300℃ | Max temmperature 200℃ |
Max temperature 300℃ |
| Pressure | Max pressure 10Mpa |
Max pressure 10Mpa |
Max pressure 10Mpa |
|
Sealing structure |
Flange structure / quick opening structure / one key quick opening structure |
one key quick opening structure |
Flange structure / quick opening structure / one key quick opening structure |
| Stirring method | Magnetic stirring or mechanical stirring | ||
| Heating method |
Electric heating |
Electric heating |
Electric heating or customize oil bath heating |
|
Kettle cover opening |
Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements |
Air inlet (common pressure gauge, explosion-proof port) * 1, exhaust port * 1, temperature measuring port * 1. It can be adjusted according to customized requirements |
Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements |
| Control method |
PLC + touch screen or computer control |
PLC + touch screen control |
PLC + touch screen or computer control |
|
Extended function |
Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized |
/ |
Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized |
