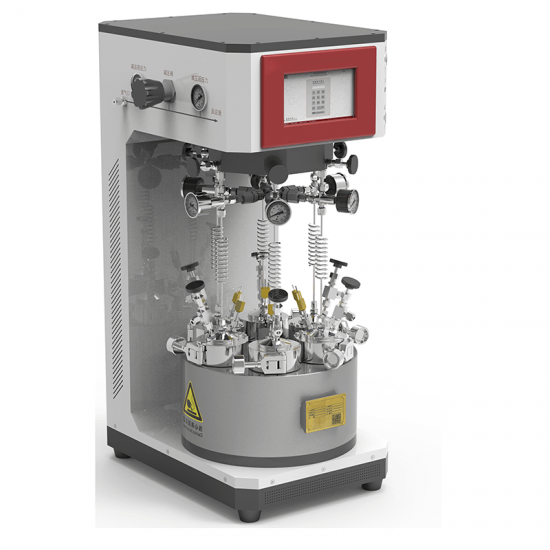

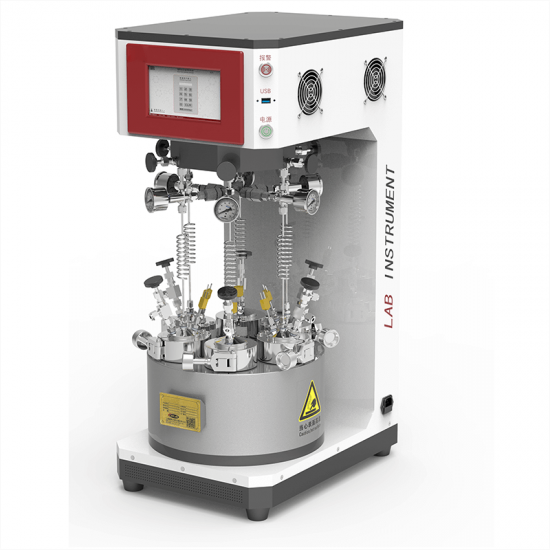

Lab Scale High-Pressure Parallel Reactors System

  • Model Number:

    OLT-PXB6-100YC
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Operation method:

    PLC + touch screen control
  • Screen:

    Touch Screen
  • Capacity:

    Customize
  • Warranty:

    1 year
  • Product Details

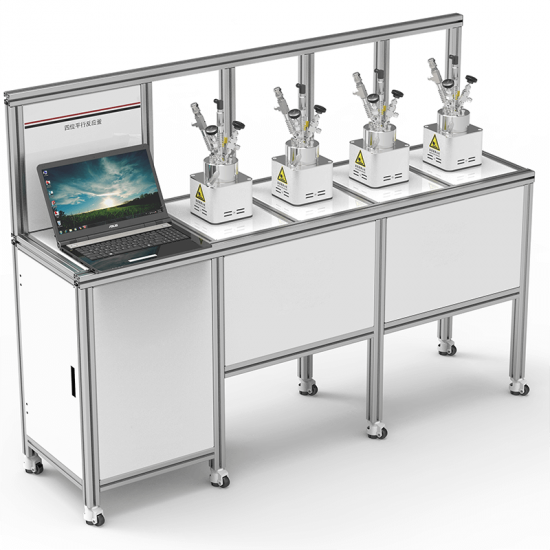

Multi position parallel reactor is an upgraded and integrated product of the basic model, which greatly saves space resources. This reactor is mainly used in laboratory parallel test, constant variable comparative analysis test, etc.

There are two modes: simultaneous temperature control and independent temperature control. The main difference between parallel reactors is that the volume, mixing form, work number, structural form, control mode, function configuration, etc. of the reactor can be combined freely according to the actual needs

Specification

Model OLT-PXA4-250FJ OLT-PXB6-100YC OLT-PXC4-250FJ
Pisition 4 or customize Max 6, customize 4 or customize
Capacity 50/100/250/500ml or customize 50/150/200ml 50/100/250/500ml or customize
Material Standard configuration 316L, customized Hastelloy, Monel alloy, titanium, etc
Temperature Max temperature 300℃ Max temmperature 200 Max temperature 300
Pressure Max pressure 10Mpa Max pressure 10Mpa
Max pressure 10Mpa
Sealing structure
Flange structure / quick opening structure / one key quick opening structure
one key quick opening structure
Flange structure / quick opening structure / one key quick opening structure
Stirring method Magnetic stirring or mechanical stirring
Heating method Electric heating
Electric heating
Electric heating or customize oil bath heating
Kettle cover opening
Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements
Air inlet (common pressure gauge, explosion-proof port) * 1, exhaust port * 1, temperature measuring port * 1. It can be adjusted according to customized requirements
Mixing port * 1, air inlet * 1, exhaust port * 1, temperature measuring port * 1, pressure gauge explosion-proof disc port * 1. It can be adjusted according to customization requirements
Control method PLC + touch screen or computer control
PLC + touch screen control
PLC + touch screen or computer control
Extended function
Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized
/ Temperature, pressure, material, process sampling, process feeding, condensation and built-in cooling coil can be customized
