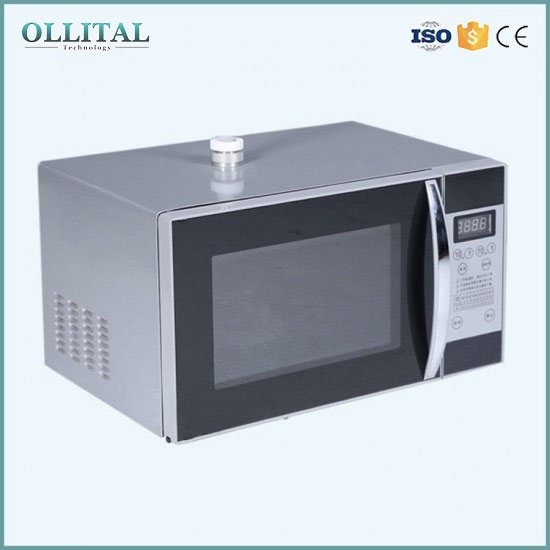

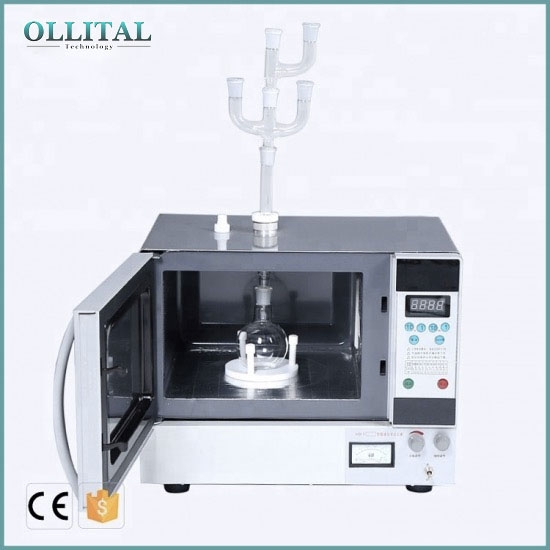

Lab Chemical Microwave Reactor For Reflux Condensation

  • Model Number:

    OLT-CR-2
  • Minimum Order Quantity:

    1
  • Voltage:

    AC108V~240V
  • Weight:

    20 kg
  • Dimension(L*W*H):

    480*540*540
  • Lead Time:

    6-8 Day
  • Payment:

    Western Union, T/T, L/C
  • Warranty:

    1 year
  • Packaging Details:

    Standard export wooden box
  • Product Details
  • 1.adopts microcomputer technology and unique technology of microwave adjustment.
  • 2.microwave power continuous and adjustable.
  • 3.easy to operate and good repeatability.
  • 4.scientific and practical.
  • 5.require microwave-assisted catalytic reaction conditions.

Model OLT-CR-2 OLT-CR-3
Rated power consumption(W) 1100 1100
Rated maximum output power(W) 750 650
Maximum input current(A) 7.8 7.8
Operating voltage(V) 220 220
Frequency(Mhz) 2450±50 Adjustable size
Chamber size(mm) 330*365*235 290*295*190
Packing size (mm) 480*540*540 610*480*550
G.W. (Kg) 20 35
The working principle of microwave chemical reactor:
Microwave is a high-frequency electromagnetic wave that does not generate heat by itself. Natural microwaves cannot be used as an energy source because they are not concentrated, and the magnetic control used can convert electrical energy into microwaves and penetrate the medium at an oscillation frequency of 2450 MHz per second. When the medium has a suitable dielectric constant and dielectric loss, high frequency oscillations occur in the alternating electromagnetic field. The energy is accumulated inside the medium. For chemical reactions, both thermal and non-thermal effects can be produced.



Packaging:

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note

Express

Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
