Product Orgin:
ChinaShipping Port:
XiamenPayment:
T/TModel Number:
OLT-5/7/10BGZMinimum Order Quantity:
1Operation method:
Voltage:
220/240/380 Volt 50/60 HzPower:
0.75KW-75KWWarranty:
1 YearWeight:
50- 15000 Kgs

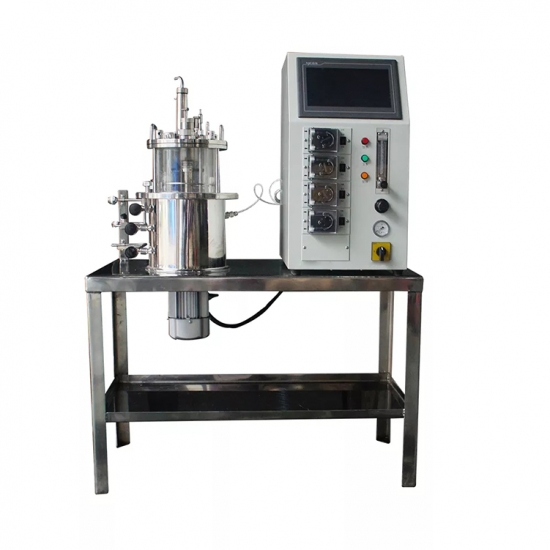

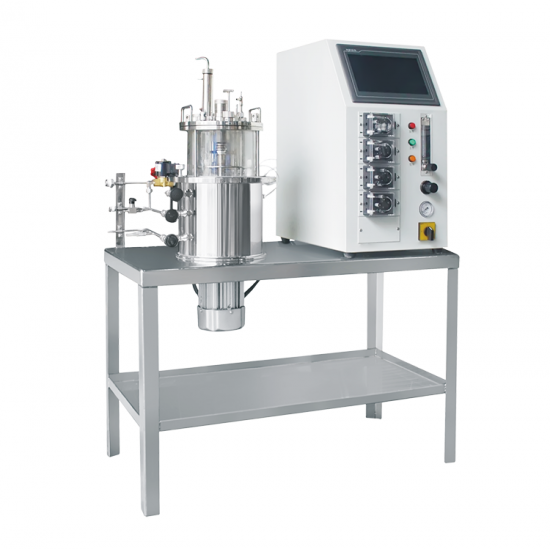

Glass Bioreactor Fermenter
Product Description
Technical Data
|
TYPE
|
OLT-5/7/10BGZ
|
OLT-5/7/10JGZ
|
|
Total Volume
|
5/7/10L
|
|
|
Vessel
|
316L Stainless Steel +Borosilicate Glass
|
|
|
Stirrer
|
Top driven
|
Bottom Driven by magnetic Coupling
|
|
Sterilization
|
In situ Sterilization (Steam Source External)
|
|
|
Basic Features
|
Temperature,RPM,PH,DO,Antifoam,Feed,Aeration,Pressure
|
|
|
Advanced Features
|
Level,Weight Feed,Multi-Feeds, Mehanol&Ethanol,Exhaust O2&CO2
|
|
|

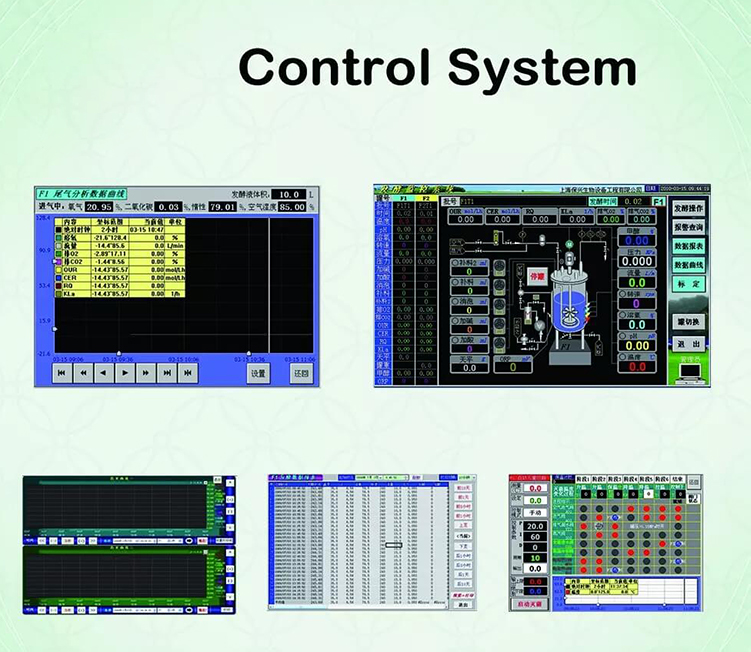

Controller
|
OLT-7000 Technical parameter
|
|
|
|
Parameter
|
Guideline
|
Controller data processing function
|
|
|
pH
|
Displaying range: 0.00~14.00±0.01
Auto-control range:2.00~12.00±0.05 Fermentation process control (According to the fermentation time, auto- control pH fluent, at least10 parts) |
pH value historical and trend curve analysis Acid, alkali dosage curve analysis
Batch report form analysis Acid, alkali total dosage record Keep |
|
|
Antifoam
|
Automatic PID control and alarm
Fermentation process control (According to the fermentation time, auto- control antifoam fluent, at least10 parts) |
Antifoam value historical and trend curve analysis Foam error state record
antifoam total dosage record Batch report form analysis Keep |
|
|
Rpm
|
Automatic enactment and control(50~1000rpm±5‰)
Fermentation process control (According to the fermentation time, auto-control rev fluent, at least10 parts) |
Rpm value historical and trend curve analysis Batch report form analysis Keep and deliver data
|
|
|
Temperature
|
Temperature of cooling water: +5℃-65℃±0.2℃
Fermentation process control (According to the fermentation time, auto- control temperature fluent, at least10 parts) |
Temperature value historical and trend curve analysis Batch report form analysis Keep
|
|
|
Feeding
|
PID automatic enactment and control
Fermentation process control (According to the fermentation time, auto- control feeding fluent, at least10 parts) |
Feeding value historical and trend curve analysis
Feeding total dosage record Batch report form analysis keep |
|
|
Pressure
|
Manual control, instrument display
|
|
|
|
Air flux
|
Manual control, instrument display
|
||
Our Advantages
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
