Model Number:
12NCompliance:
CE CertifiedMinimum Order Quantity:
1Mixing method:
LCDVoltage:
108V-240V 50/60HZWarranty:
1 yearDimension(L*W*H):
450x580x380Packaging Details:
Export wooden packageDelivery Time:
6-8 day♦Accord with international standards of Green environmental friendly.
♦7" True~color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
♦U disk Can storage lyophilized data;
♦ Upload software can print curve;
♦ Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
♦ Large opening trap, no coil inside, with samples pre-freeze function
♦ Imported refrigeration compressor, low noise
♦ Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean

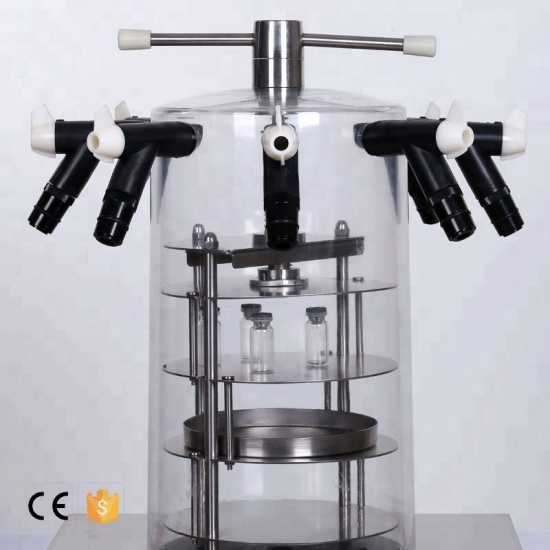

♦ Transparent Bell type drying room, secure and ocular
♦ Stainless steel sample holder, common sample plate spacing adjustable
♦ Small size and easy to operate
♦ Nitrogen inflation valve within.

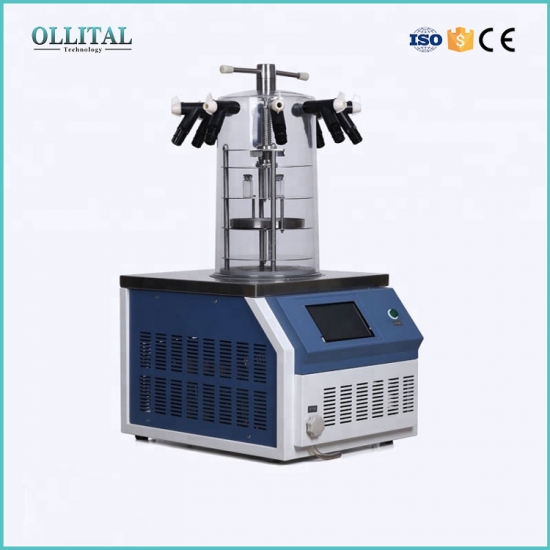

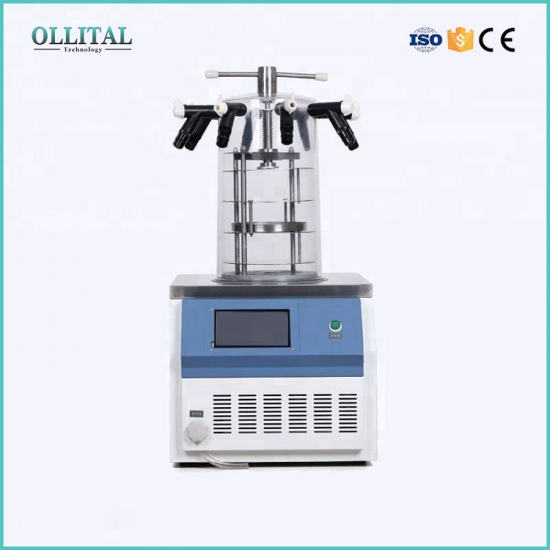

12N Freeze Dryer
12N
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
No-load Temperature(℃)
<-56
Freeze Area(m2)
0.12
0.08
0.12
0.08
Plate Load Capacity(L)
1.5
1
1.5
1
Ability to Capture
Water(kg)
4
Vacuum Degree(Pa)
<10
Machine Dimension
(W*H*D)mm
600*460*(720+450)
Sample Tray Size(mm)
4×Φ200
Ø 3×180
4×Φ200
Ø 3×180
Power(w)
950W
Power Supply(V/HZ)
110/60or 220/50
110/60 or 220/50
110/60 or 220/50
110/60 or 220V/50
interlayer spacing (mm)
70
Cold trap size(mm)
Ø215×216
The number of
Schering bottles
Ø22: 260
Ø22: 165
Ø22: 260
Ø22: 165
Ø16: 480
Ø16: 285
Ø16: 480
Ø16: 285
Ø12: 920
Ø12: 560
Ø12: 920
Ø12: 560
N.W./ G.W
110KG/125KG
115KG/130KG
120KG/135KG
125KG/140KG
We can according to customers' special needs, of course, we also have our own flagshaip products,
