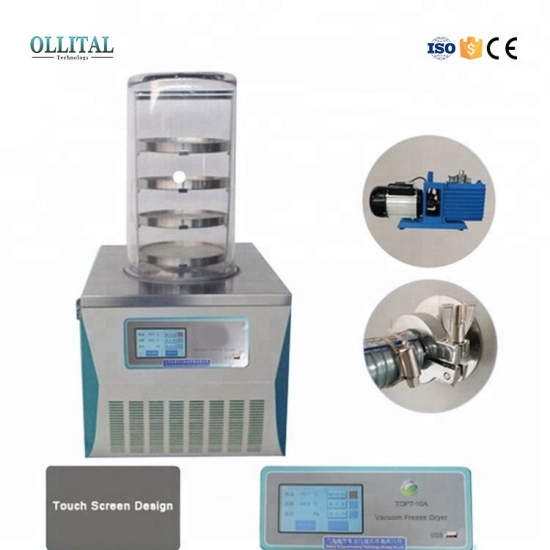

LCD Display Mini Vacuum Freeze Dryer For Food Fruit And Vegetable

  • Model Number:

    OLT-10A
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Capacity:

    1.2L
  • Voltage:

    108V-240V 50/60HZ
  • Warranty:

    1 year
  • Dimension(L*W*H):

    425*615*(370+445) mm
  • Weight:

    80 Kg
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

Lab freeze dryer

OLT-10A

Freeze-drying area
0.12 square meter
Cold trap temp
<-55℃
Vacuum
<10 Pa
Water-capture capacity
3~4 Kg/24h
Material tray
200 mm diameter
Whole power
970 W
Tray number
4
Main frame size
425*615*(370+445) mm
Main frame weight
80 Kg
Liquid capacity
1.2 L
Voltage
108V-240V 50Hz, single phase
LCD display, drying curve being displayed.
Vacuum freeze dryers support small amount of samples been pre-freezed in condenser. So this type food freeze dryers are suitable for lab use or small-scale food production,and they also can meet requirements for most laboratories.
Freeze drying food are easier for long-term preservation after freezing-drying processing, they can be restored to the original state and maintain its chemical and biological characteristics after being watered.

1.Imported compressor, CFC Free refrigeration.
2.Big opening of cold trap, this type cold trap has pre-freeze function.

3.The machine can store freeze-dried data for many times, experimental data can be output by a USB flash disk.
4.Touch screen as human-computer interface, Chinese (English) convertible interface, display drying curve.
5.Small volume, compact structure ,easy and convenient operation.
6.The international standard KF vacuum interface, with a variety of vacuum pump combination.
7.Condenser and operation panel are all stainless steel, corrosion resistant and easy to clean.
8.Pre-freeze shelf can work as a lead tube, speed up the drying speed.
9.Optional charging valve, filling dry inert gas.
10.Cascade refrigeration is optional , applied for -80℃ machine.

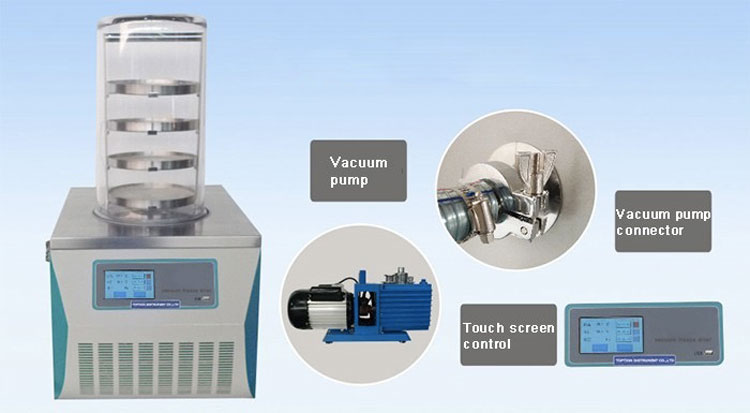

Part list :

sealed ring
pre-freeze lid
Clamp
Vacuum tube with joint
Vacuum grease
vacuum pump
power cable
Organic glass over
Freeze drying shelf
Material trays

Pre-freezing shelf





Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
