Model Number:
OLT-FD-1Compliance:
CE CertifiedMinimum Order Quantity:
1Mixing method:
LCDCapacity:
1LVoltage:
108V-240V 50/60HZPower:
950WWarranty:
1 yearDimension(L*W*H):
450x580x380Packaging Details:
Export wooden packageDelivery Time:

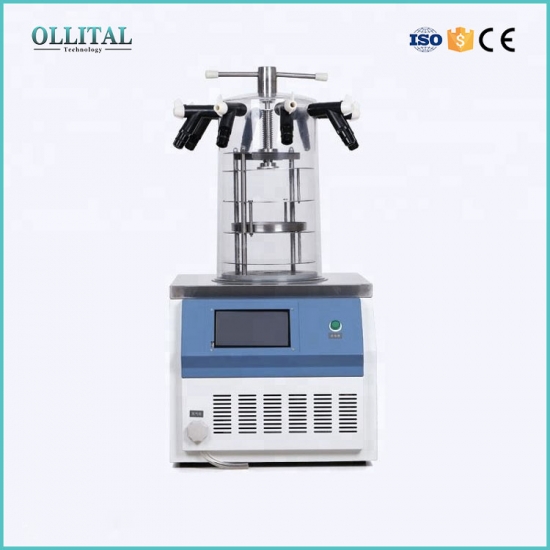

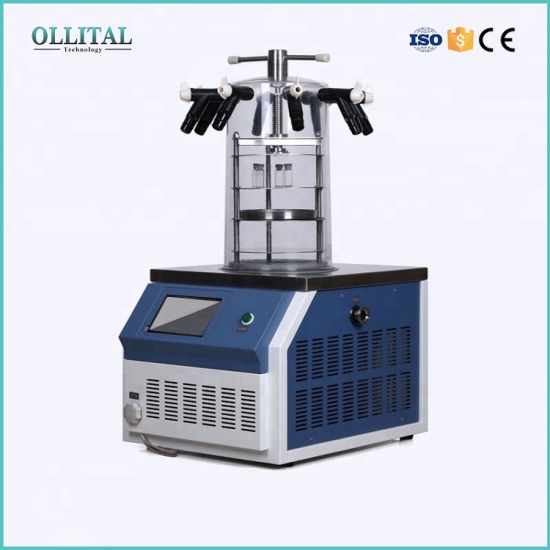

6-8 dayLab Use Mini Lyophilization Machine
Model
OLT-FD-1
Power Supply (V/Hz)
220/50
Heating Power(W)
950
Specifications
Gland manifold
Freeze Area (m2)
0.08
Sample Tray Size (mm)
Ø180*3
Plate Load Capacity (L)
1
No-load Temperature (℃)
<-56
Vacuum Degree(Pa)
<10
Interlayer Spacing (mm)
70
The Number of Schering Bottles
Ø22mm
165
Ø16mm
285
Ø12mm
560
The Number of Multiple Manifold
8
The Number of Eggplant Shape Bottle
8
Ability to Capture Water (Kg)
3
Cold Trap Size (mm)
Ø 215*160
Machine Dimension (W*H*D, mm)
450*580*380
( 1 ) The mini lyophilization machine adopts international brand Danfoss compressor refrigeration, rapid , low temperature cold trap .
( 2 ) 7- inch TFT LCD touch screen control system , easy to operate , and powerful .
( 3 ) industrial embedded operating system , ARM9 core control circuit design , 32M RAM 128M FLASH, operating fast response, store large volumes of data .
( 4 ) control system automatically saves lyophilized data, and can be viewed in the form of real-time curve and the curve of history , the whole freeze-drying process clear.

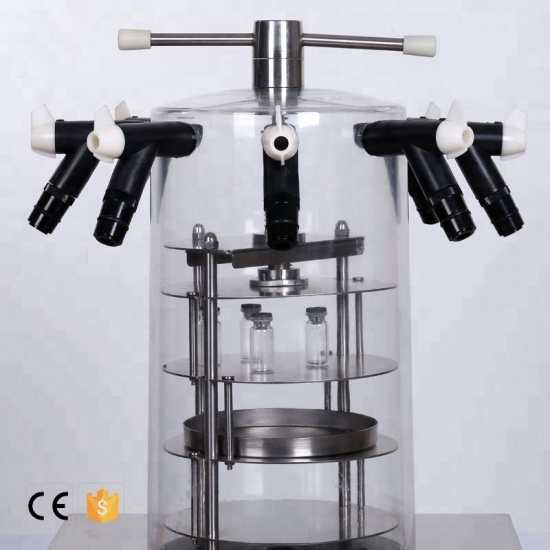

( 5 ) drying chamber using colorless, transparent organic glass , clear and intuitive sample can be observed in the whole process of freeze-drying .
( 6 ) connected to a vacuum pump and a host of international standards KF quick connector , simple and reliable.
( 7 ) The machine can store multiple freeze-drying curve, and extracted with U-disk data to a computer, use the PC software to view and print a variety of options in the computer.
( 8 ) configuration inflation valve , rechargeable dry inert gas.
