Working principle Two fluid atomizer (air flow atomizer) generates kinetic energy through the high-speed flow of compressed air or steam, cutting and
Lead Time:
1-3 daysModel Number:
OLT-432Minimum Order Quantity:
1Operation method:
Touch ScreenPower:
3∮, AC380VWarranty:

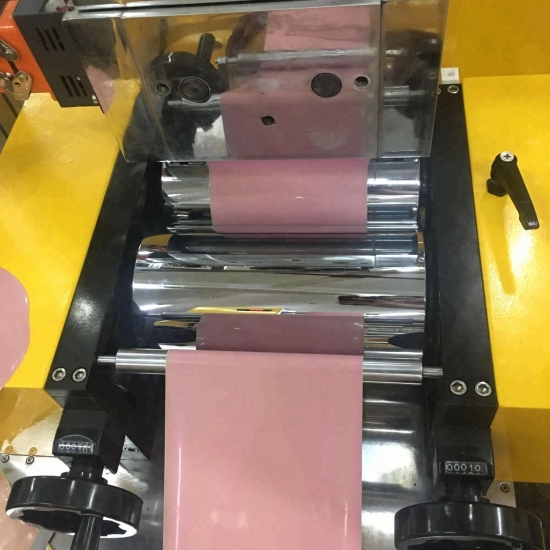

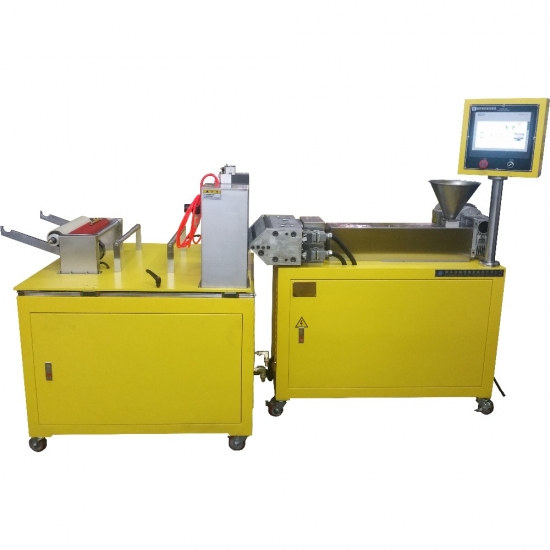

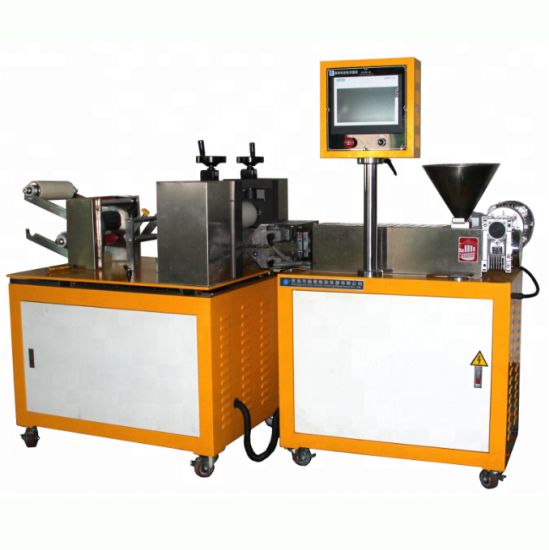

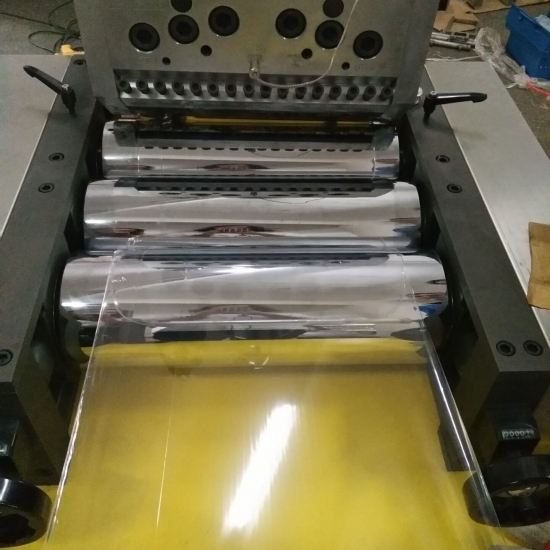

1 yearCast film extrusion line consist of a lab precise single screw extruder, a molding system(die), a film casting, haul-off & winding machine and a SIEMENS PLC Touching Screen Control System.
It not only has wide range of technology adjustment (including speed, temperature, pressure, thickness, etc.), but also has a lot of functions such as real-time parameter acquistion, graphic displaying, recording and storing. It is an ideal tool for research institute to develop new material formula and film shaping technology.
Parameter
| Model | OLT-432(Single layer) |
OLT-432-2(Double layers) |
OLT-432-3(Three layers) |
| Screw diameter (mm) | 25 | 25 | 25 |
| L/D | 1:33 |
1:33 |
1:33 |
| Screw speed (Speed Adjustable) | 0~95rpm |
0~95rpm |
0~95rpm |
| Main Motor power (KW) | 2.2 | 2.2*2 | 2.2*3 |
| Die | Hanger Type |
Hanger Type |
Hanger Type |
| Die lip width | 300 or cunstomzied |
300 or cunstomzied |
300 or cunstomzied |
| Volume(H*W*D)mm | 2500*800*1700 | 2600*960*2100 | 3200*1200*2100 |
| Power Supply |
3∮, AC380V |
||
|
Special models can be desighed according to cunstomers' requirements |
|||
Product Application
1) Polymer casting property test;
2) New material formula development;
3) Optimization of production technology;
4) Production quality control.
Main Features
1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;
4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;

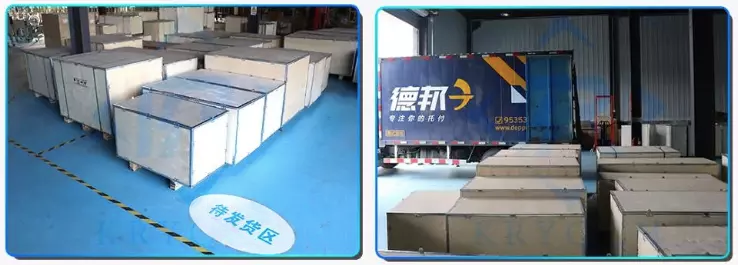

Packing & Shipping
