Lab Single Screw Extruder for Casting Film Lines for PP,TPE, PVC, LDPE

  • Lead Time:

    1-3 days
  • Model Number:

    OLT-432
  • Minimum Order Quantity:

    1
  • Screen:

    Touch Screen
  • Power:

    3∮, AC380V
  • Warranty:

    1 year
  • Product Details

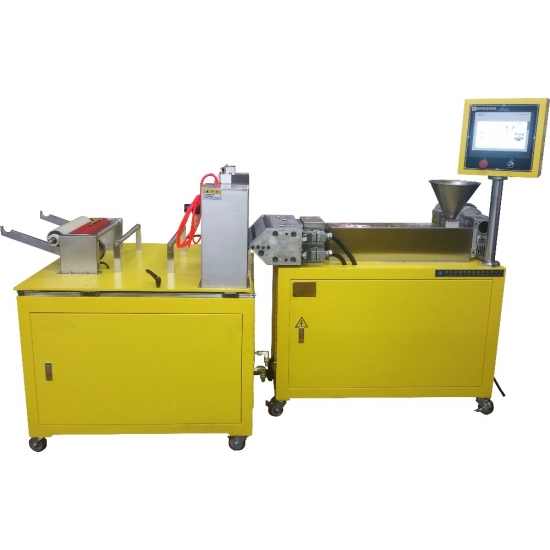

Cast film extrusion line consist of a lab precise single screw extruder, a molding system(die), a film casting, haul-off & winding machine and a SIEMENS PLC Touching Screen Control System.

It not only has wide range of technology adjustment (including speed, temperature, pressure, thickness, etc.), but also has a lot of functions such as real-time parameter acquistion, graphic displaying, recording and storing. It is an ideal tool for research institute to develop new material formula and film shaping technology.

Parameter

Model OLT-432(Single layer) OLT-432-2(Double layers)
OLT-432-3(Three layers)
Screw diameter (mm) 25 25 25
L/D 1:33 1:33
1:33
Screw speed (Speed Adjustable) 0~95rpm 0~95rpm
0~95rpm
Main Motor power (KW) 2.2 2.2*2 2.2*3
Die Hanger Type Hanger Type
Hanger Type
Die lip width 300 or cunstomzied  300 or cunstomzied
300 or cunstomzied
Volume(H*W*D)mm 2500*800*1700 2600*960*2100 3200*1200*2100
Power Supply 3∮, AC380V
Special models can be desighed according to cunstomers' requirements

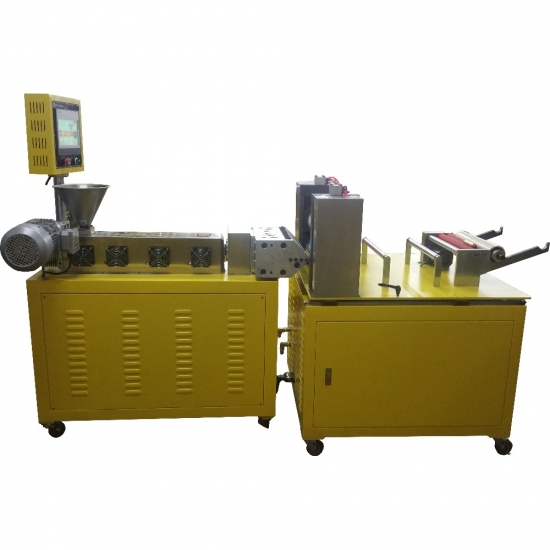

Detailed ImageProduct Application

1) Polymer casting property test;
2) New material formula development;
3) Optimization of production technology;

4) Production quality control.

Main Features

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;
4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;
