Lab Cast Stretch Film Manufacturing Machine with Single Screw Extrusion Line

  • Lead Time:

    1-3 days
  • Model Number:

    OLT-432
  • Minimum Order Quantity:

    1
  • Mixing method:

    Touch Screen
  • Power:

    3∮, AC380V
  • Warranty:

    1 year
  • Product Details

The casting unit is a new type of equipment developed by our company, mainly composed of a small casting machine. The casting machine is a mechanical equipment for the molding of rubber and plastic material cast film products. It is mainly used in the fields of casting film product molding, casting material formulation development, and casting material performance research, such as conveying materials to flow The casting machine is made of cast film products. Its advantage is light and practical. During use, the rotation speed of the casting roller and the traction roller can be controlled by the frequency conversion motor, so that the conveying speed of the material can be adjusted to produce various sheet products that meet the requirements of users. This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electric control system, casting die, two-roll calendering and so on. Its working principle is: the material flows from the hopper into the plasticizing and extruding through the extruding device into a casting state, and then comes out from the host through the die, and is calendered by a two-roll calender.

Parameter

Model OLT-432(Single layer) OLT-432-2(Double layers)
OLT-432-3(Three layers)
Screw diameter (mm) 25 25 25
L/D 1:33 1:33
1:33
Screw speed (Speed Adjustable) 0~95rpm 0~95rpm
0~95rpm
Main Motor power (KW) 2.2 2.2*2 2.2*3
Die Hanger Type Hanger Type
Hanger Type
Die lip width 300 or cunstomzied  300 or cunstomzied
300 or cunstomzied
Volume(H*W*D)mm 2500*800*1700 2600*960*2100 3200*1200*2100
Power Supply 3∮, AC380V
Special models can be desighed according to cunstomers' requirements

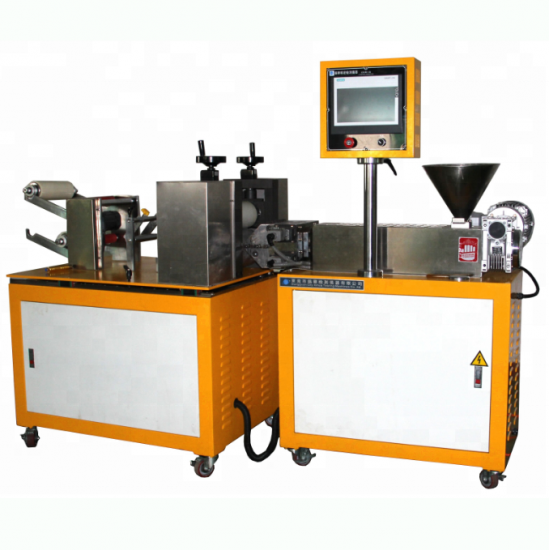

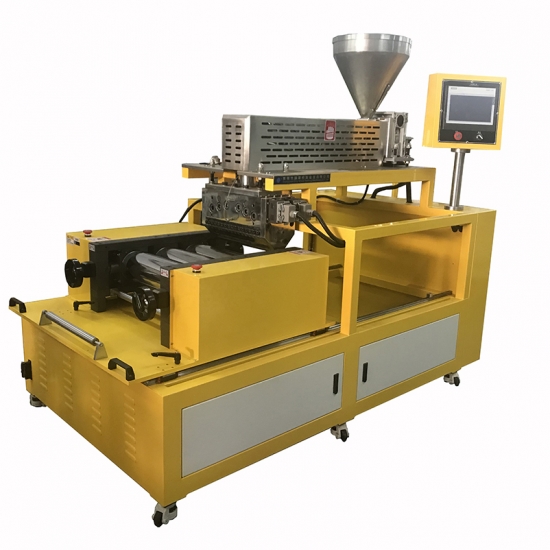

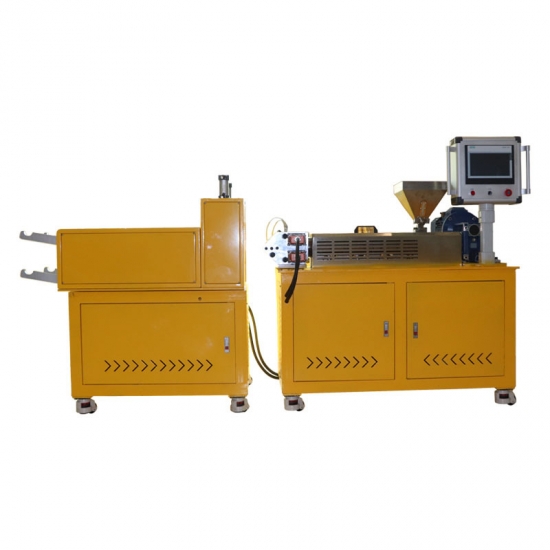

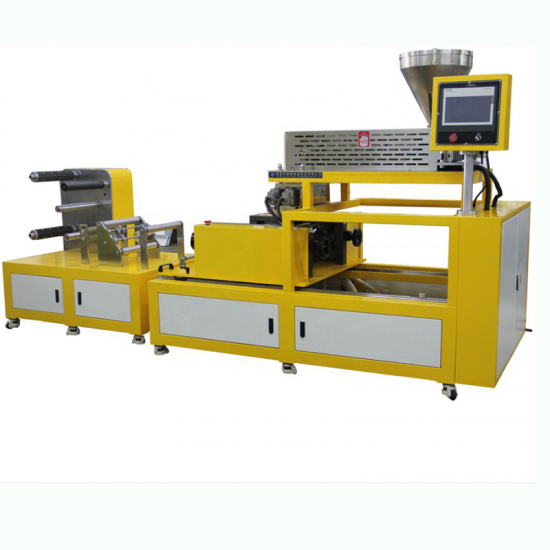

Detailed Images


Main Features

The lab mini extruder is driven by servo motor, controlled by PLC, PID temperature setting, screw structure optimization to ensure good plasticization and stable extrusion.
Hard chromium - plated mirror roller with 304 stainless steel roll core, reliable quality, highly surface finish for product.
The machine all driven by servo motor, to achieve smooth and precise running.
Each roll of the lab small multi-layer coextruder is driven independently by servo motor, and the running is stable. The speed ratio of each roll can be adjusted freely.
Advanced multi-axis synchronous technology ensures the synchronization of each roll speed.
Advanced PLC control and mobile touch screen operation ensure system stability and improve operation convenience.
