Model Number:
OLT-RK-2LMinimum Order Quantity:
1Compliance:
CE CertifiedVoltage:
220V or 110V / 50-60HZPower(W):
90WCapacity:
2LService temperature:
-60 to 200°CWeight:
21.5kgDimension(L*W*H):
40x40x125 cmLead Time:
6-8 DayWarranty:

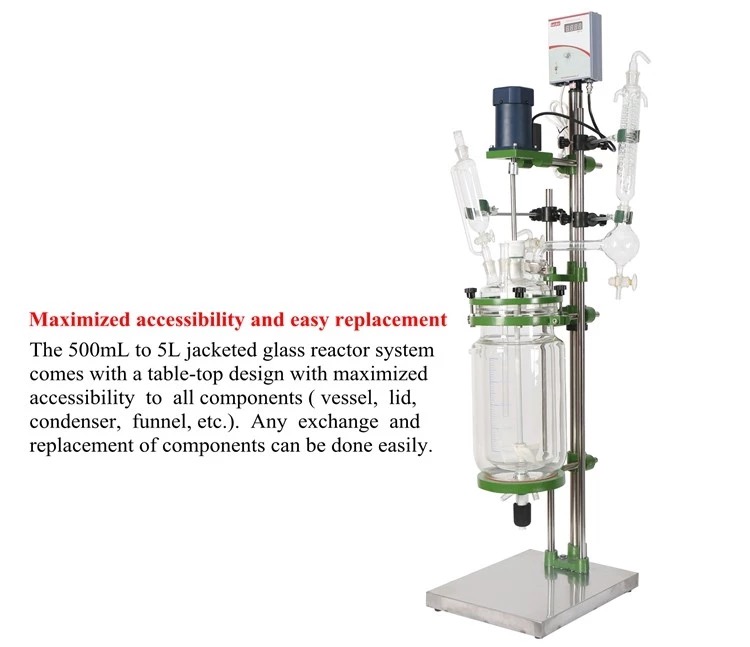

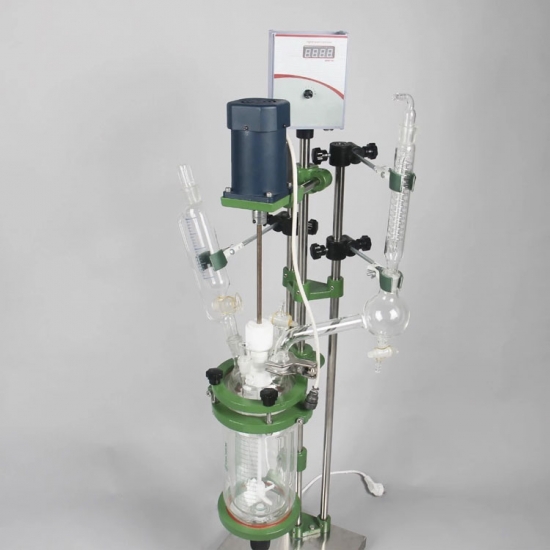

1 YearThe jacketed glass reactor systems is the ideal equipment for mixing, reaction and distillation in chemistry and pharmaceutical industries.
A wide choice of volumes are available from 500mL to 200L. When working with heating / cooling circulators, the temperature inside the vessel can be gently and accurately controlled by thermal fluid circulation inside the jacket. This reaction vessel is rated to operate safely under full vacuum.
|
Model
|
OLT-RK-1L
|
OLT-RK-2L
|
OLT-RK-3L
|
OLT-RK-5L
|
|
Reaction Volume(L)
|
1L
|
2L
|
3L
|
5L
|
|
Jacket Volume(L)
|
0.5L
|
1L
|
1.5L
|
2L
|
|
Reactor Material
|

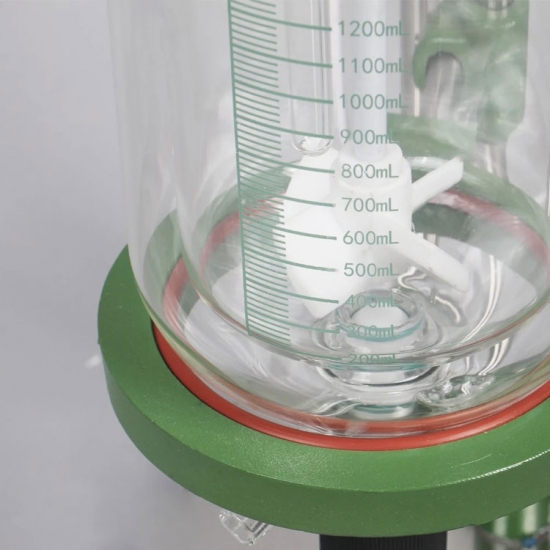

High quality borosilicate 3.3 glass
|
|||
|
Support Frame Material
|
Stainless steel 304 and coated aluminum
|
|||
|

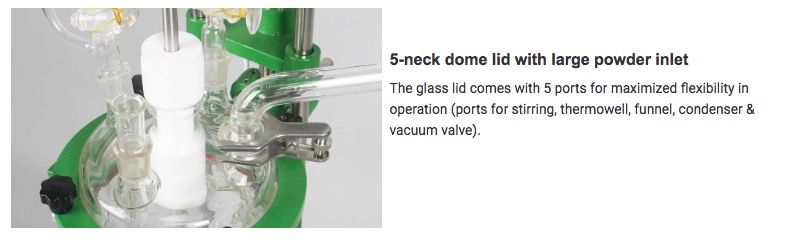

Neck No. On Lid
|
5
|
|||
|
Rated. torque(N.cm)
|
140
|
140
|
140
|
140
|
|

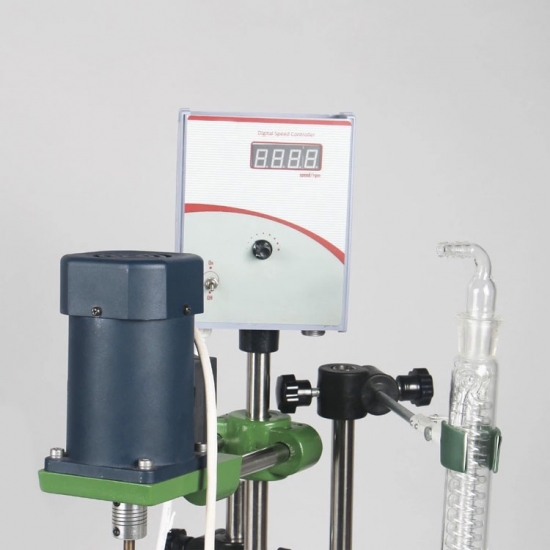

Motor power(W)
|
90
|
90
|
90
|
90
|
|
Rotating speed(rpm)
|
0 ~ 600 (customizable)
|
|||
|
Power supply
|
220V or 110V / 50-60HZ
|
|||
|
Discharge
|

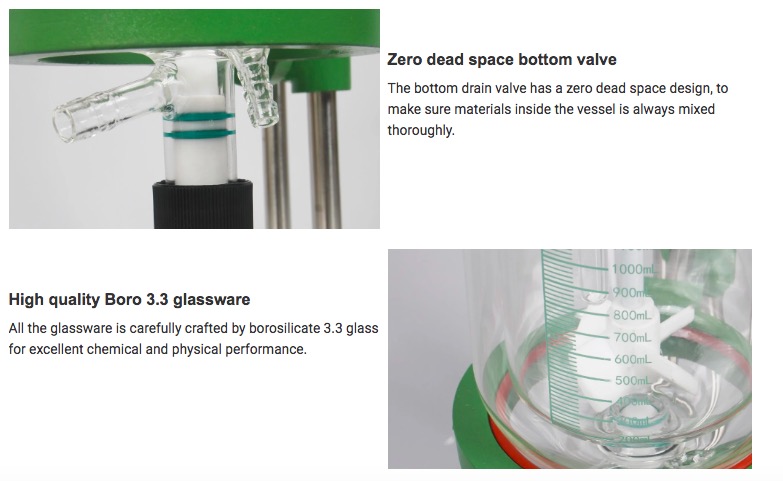

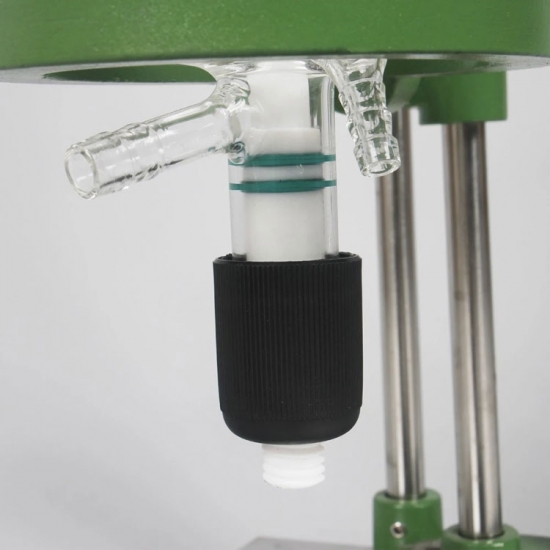

PTFE (Teflon) bottom discharge valve with no deadspace
|
|||
|
Working Temp range
|
-60 to 200°C
|
|||
|
Pressure Range
|
Full vacuum to atmosphere
|
|||
|
Max jacket pressure
|
0.5 bar
|
|||
|
Dimension
|
35x35x115 cm
|
40x40x125 cm
|
50x50x150 cm
|
50x50x155 cm
|
|
Net Weight
|
20 kg
|
21.5 kg
|
27 kg
|
30 kg
|
This system can be modified in our own factory quickly in case any customization is needed from us (dimension, motor power, explosion proof, additional glassware, custom port size, etc). Please contact us if any further details are needed.
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
|
Express |
Door to door, very convenient, don't need to clearance or pick-up |
| By air |
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea |
Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you. |
