Laboratory Desktop Injection Molding Machine Plastic Single Screw Extruder

Lead Time:
3-5 days
Model Number:
SJ15
Compliance:
CE Certified
Minimum Order Quantity:
1
Capacity:
0.01-0.5kg/h
Warranty:
1 year

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

Introduction

Mini lab plastic extruder always be used for test or lab research with small capacity and low energy consumption.

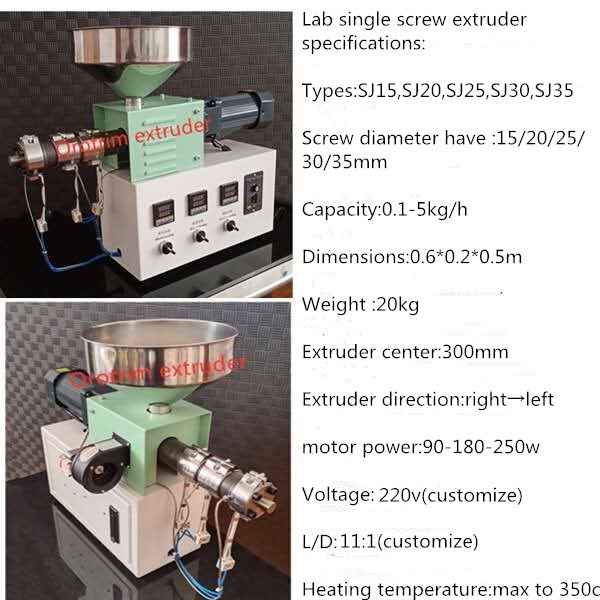

Parameter

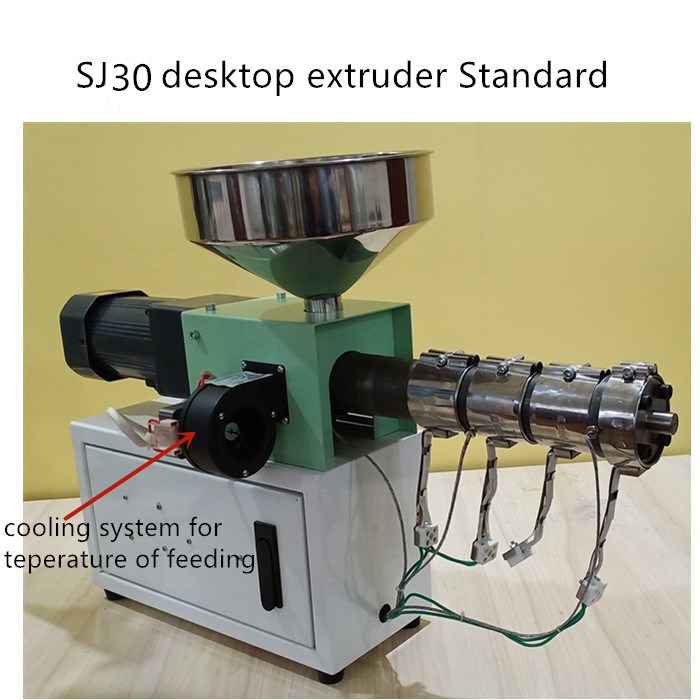

Model	SJ15	SJ30	SJ35
Production Capacity	0.01-0.5kg/h	1-3kg/h	3-5kg/h
Screw diameter	15mm	30mm	35mm
L/D	14: 1	13: 1	13: 1
Heating temperature	RT-300C	RT-300C	0-350C
Voltage	200V or Customize	220/60 Hz,1phases	110V/220V
Power	90W	250W	300W
Screw and barrel material	38Crmola, Nitrided	38CrMoAlA	38CrMoAlA

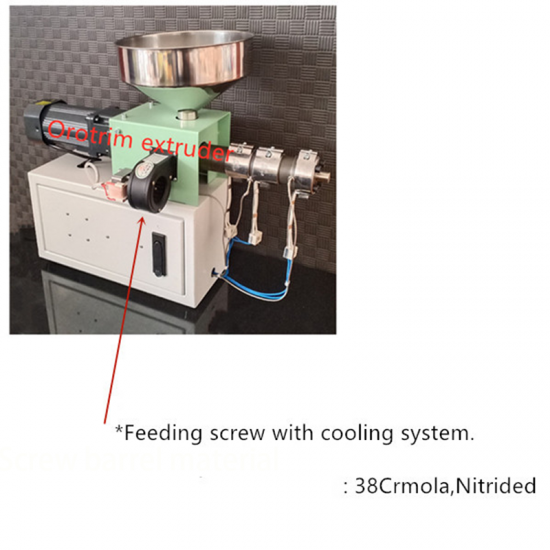

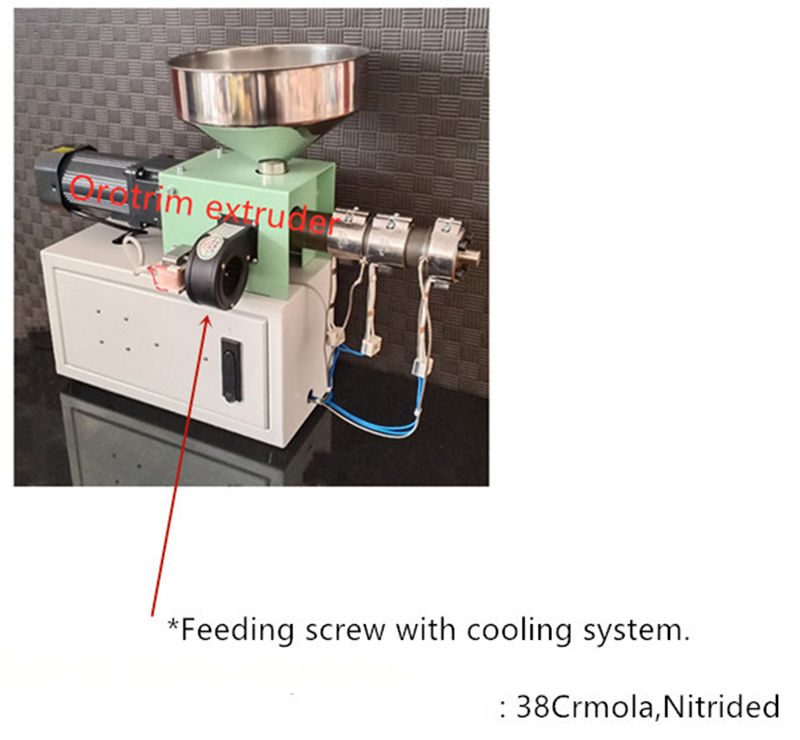

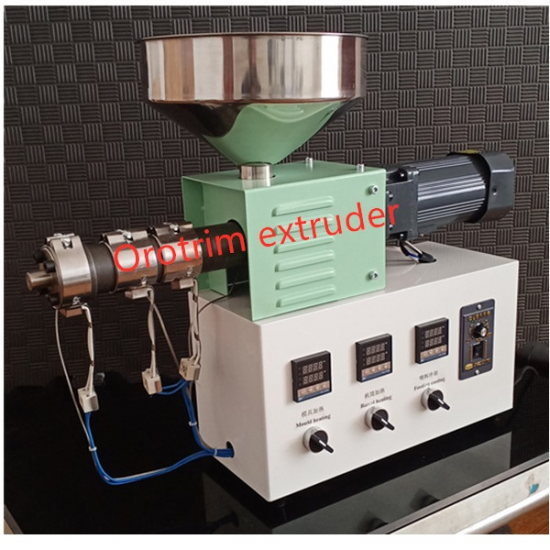

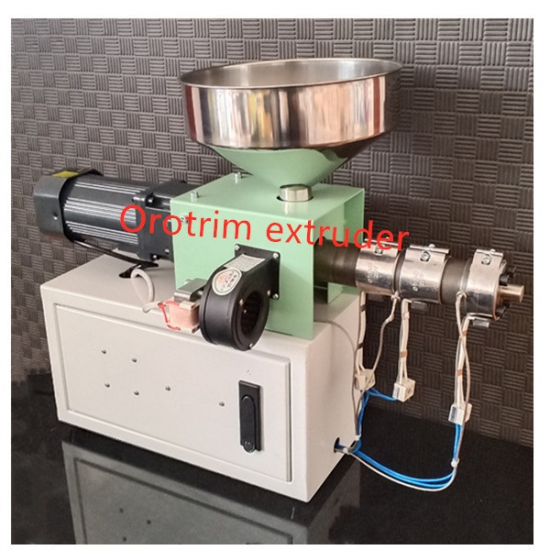

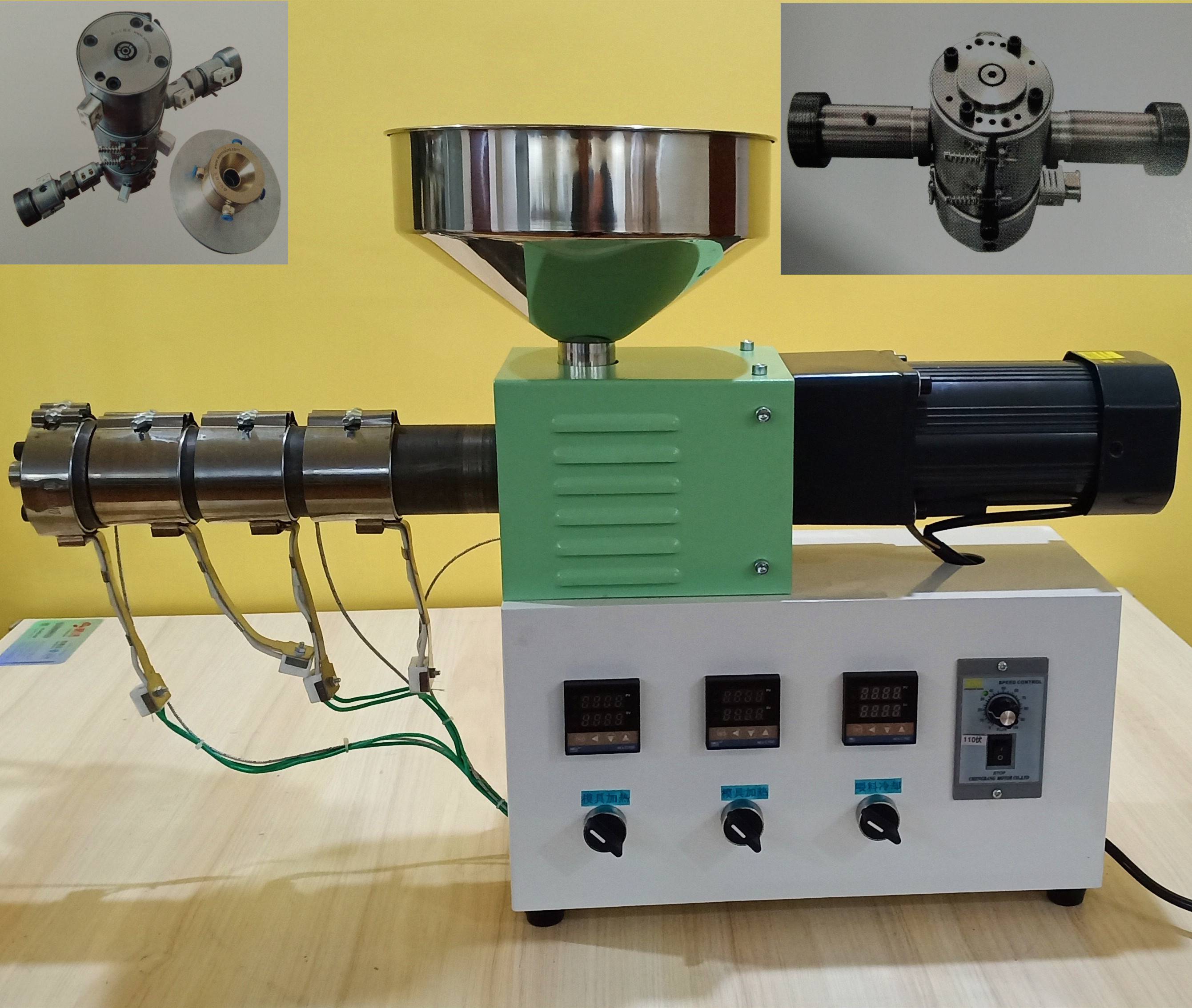

Detail Image

Application

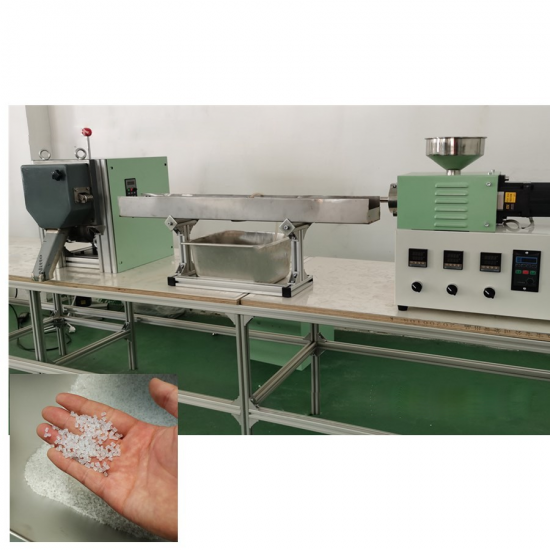

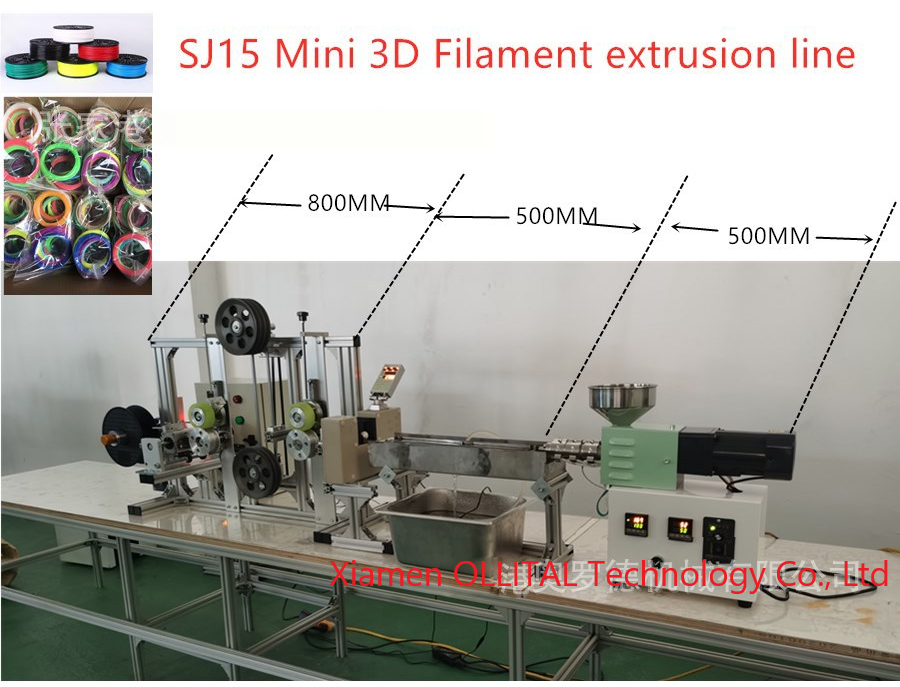

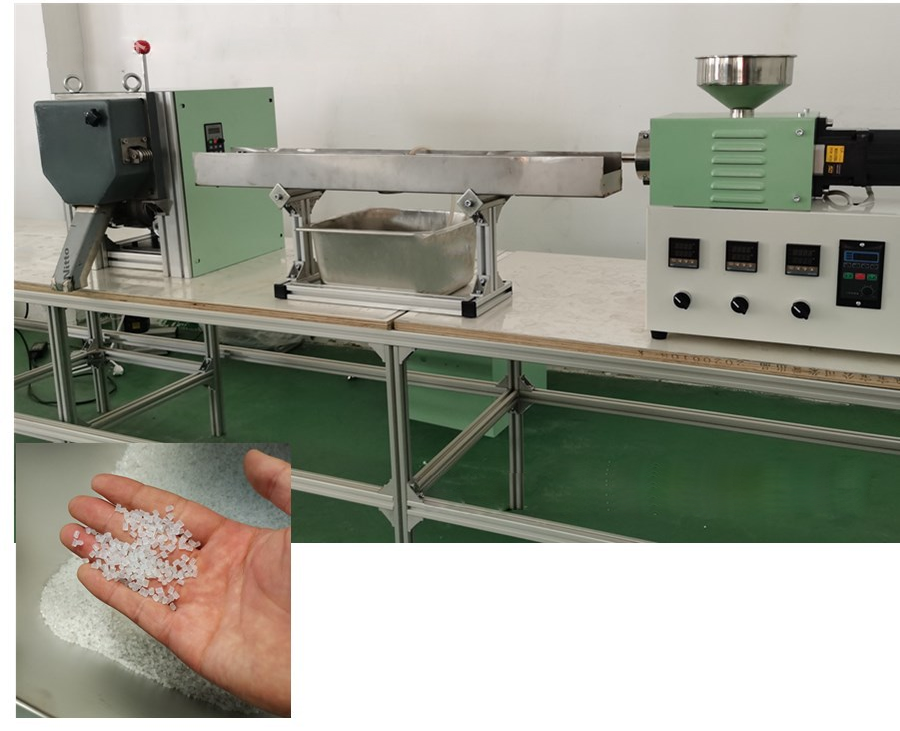

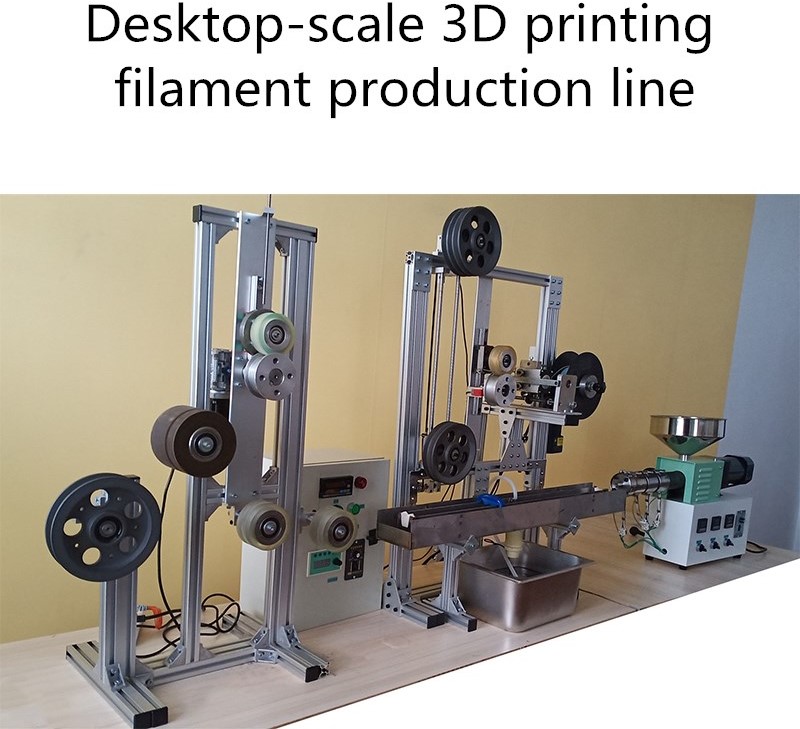

This mini lab plastic extruder can be used to plastic modification test, pipe extrusion test, filament extrusion text and granulation test with different moulds. It is an essential equipment of the chemical enterprise, scientific research institution, college and university lab.
This mini lab plastic extruder can process all kinds of plastic materials such as soft/hard propene Polymer (PP) and polystyrene(PE) coordinated with the appropriate auxiliary machine.

At the same time, this mini lab plastic extruder is used for PP, HDPE, PE pipes co-extruding, it can be used for the color line, outside face of the pipes.

Packing & Shipping
