Laboratory Two Roll Mill Rubber Machine

  • Lead Time:

    1-3 days
  • Model Number:

    ZS-401B-120
  • Minimum Order Quantity:

    1
  • Screen:

    LCD
  • Warranty:

    1 year
  • Product Details

Two Roll Mill Machine is suitable for plastic industry polymer material mixing and processing such as, PVC, color master

 batch. Making the raw material and compound mixing, and achieve the required color and qualityThe machine

adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be

mixed, the machine safety protection deviceconvenience to use.

Technical Parameter

Model

ZS-401A-120

ZS-401B-120

ZS-401C-120

Size of roll (mm)

120X350 or customized

Heating mode

Electrical heating or oil heating

Cooling mode

Tap water cooling/oil cooling (optional)

Roller speed

Constant speed

Single speed regulator

Double frequency modulation

Motor power (Kw)

0.75X1®or customized

0.75X1® or customized

0.75X2or customized

Volume (mm)

1000X550X1200

1000X550X1200

1000X550X1200

Weight (kg)

350

370

400

Power supply

3ph, AC380V

Special models can be designed according to customers requirements

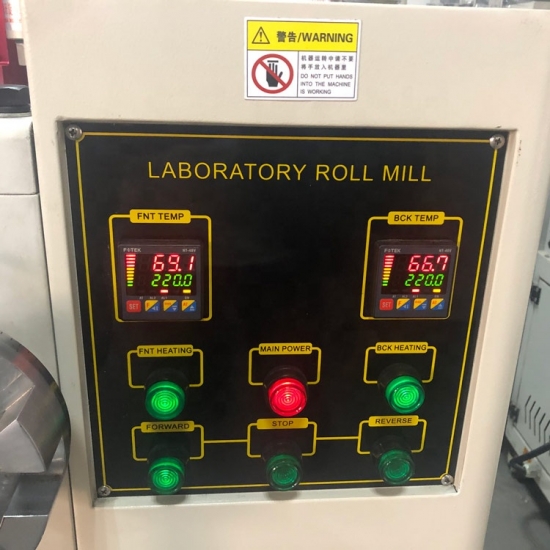

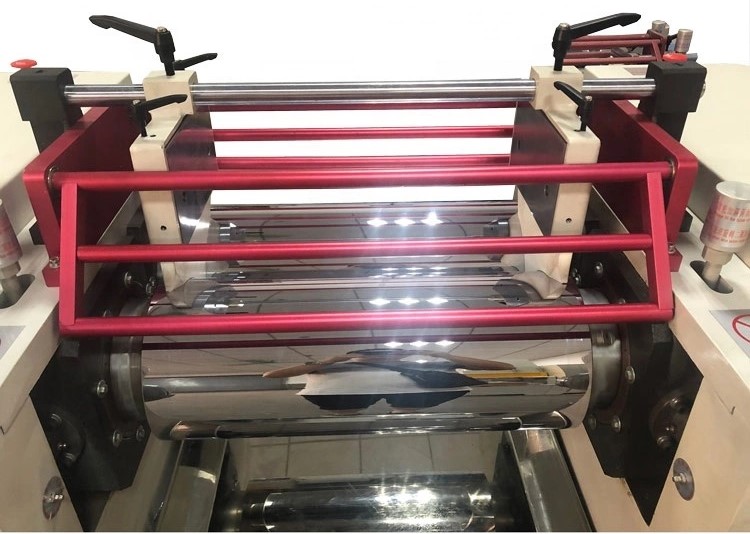

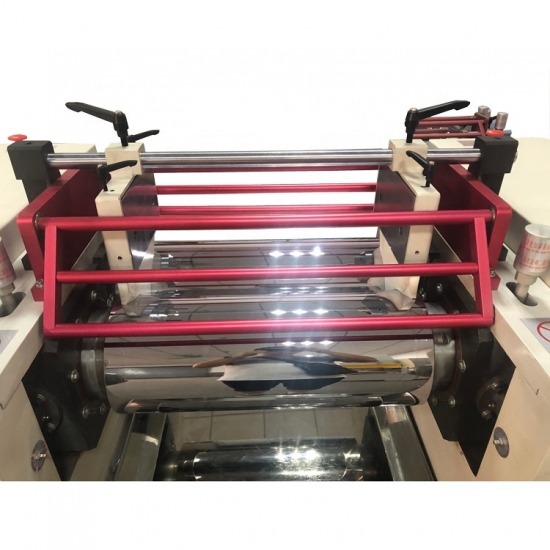

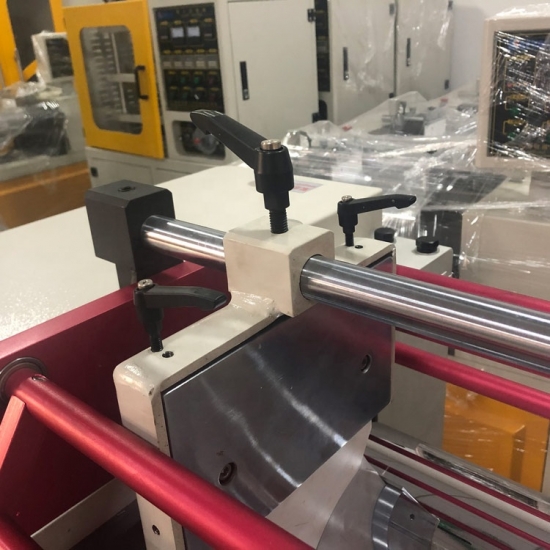

Detailed Image

 Laboratory Two Roll Mill Rubber MachineLaboratory Two Roll Mill Rubber Machine

Technique Features

1.The core technology from Taiwan, The main parts adopt the French schneider.
2.The whole floor,easy installation, driving mode is uniaxial output ensure the torsion big,Imported bearings

reduce rubbing force to ensure save electricity, low noise and rubber thickness uniform parallel controllable.

3.Roll adopts the vanadium titanium alloy chilled cast iron,roll hardness(HRC)50-60,surface is hard

wear-resisting, durable. Roller lumen finish machining to ensure that the roller body cooling quickly and evenly.

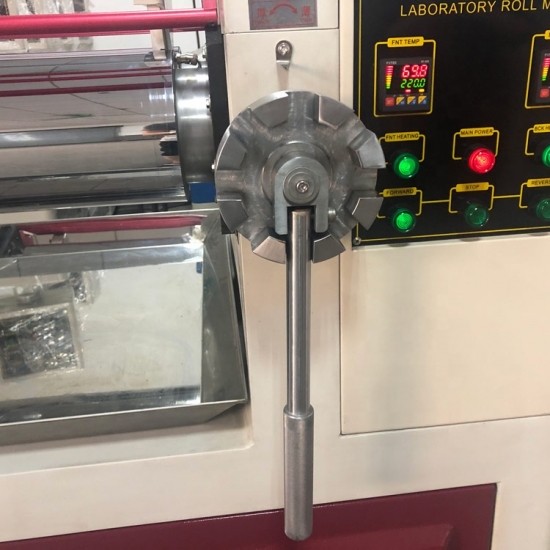

4.The machine adopts manual adjustment mode, Thickness control precision,easy operation,High safety factor .
5.The machine is equipped with an emergency brake, When emergency accidents,four corners have

 emergency switch, a number of brake system, convenient quick stop machine.
6.Transmission device adopts hardened reducer,compact structure,transmission efficiency,little noise.

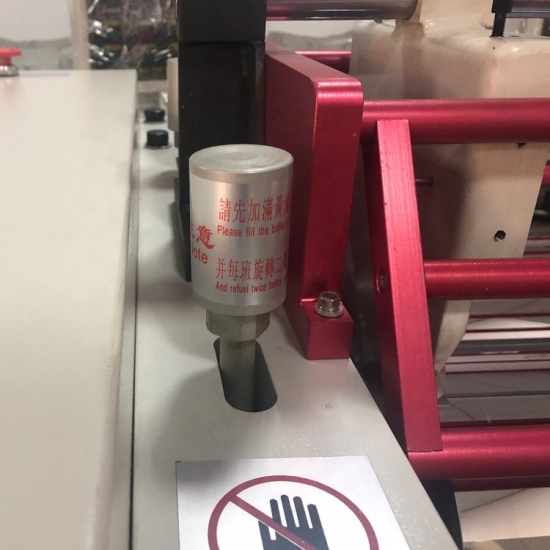

7.Automatic oiling device to ensure that long-term oil for driving part,Make up the pump forget supply damage

 to part of serious consequences.

 8.Two motor driven,arbitrary roller speed ratio before and after implementation,easy to operation;

9.Integral plate,easy installation.Driving mode is uniaxial output to ensure the big torque,imported bearings

to reduce friction to save electricityreduce noise, and Rubber thickness uniform parallel controllable.

10.Transmission device adopts double double frequency converter control,Low noise, long service life.

 Packing & Shipping
